TZ-6 Aluminium Alloy Sealed Limit Switch
Home Products Switch & SwitchgearLimit SwitchTZ-6 Aluminium Alloy Sealed Limit Switch
TZ-6 Aluminium Alloy Sealed Limit Switch
Model |
TZ-6 |

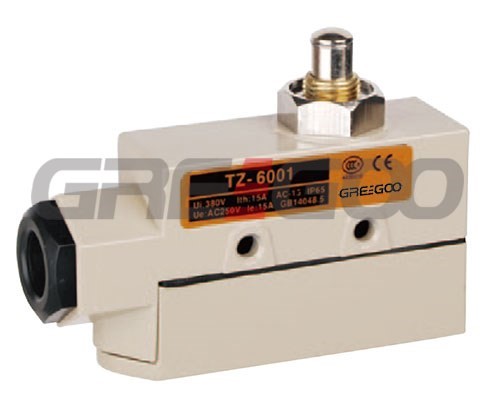

TZ-6001 |

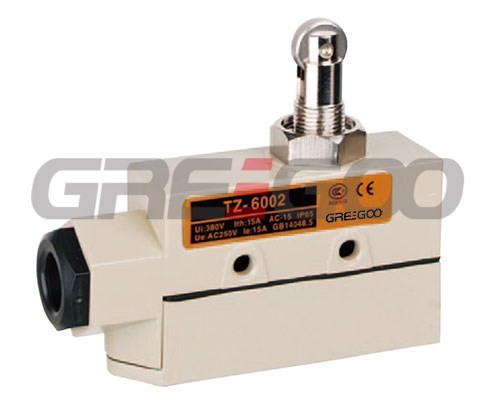

TZ-6002 |
TZ-6003 |

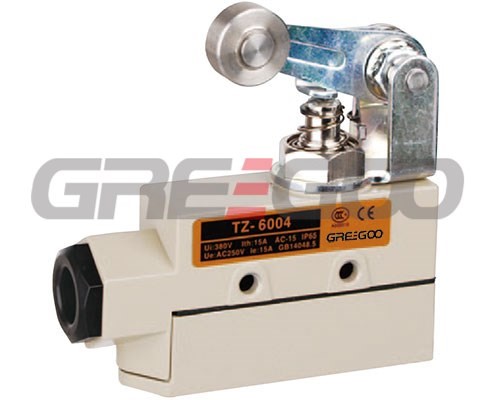

TZ-6004 |
TZ-6043 |
TZ-6101 |
TZ-6102 |
TZ-6103 |

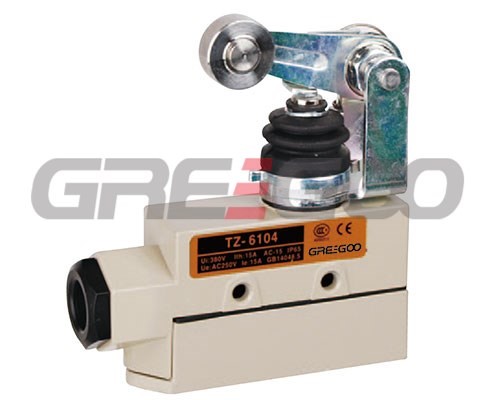

TZ-6104 |
TZ-6143 |
operating force |
OF(Max) |
250 ~350g |
250 ~350g |
570g |
570g |
800g |
500g |
640g |
640g |
||
Release force |
RF(Min.) |
114g |
114g |
170g |
170g |
240g |
100g |
230g |
230g |
||
Pre-trave |
PT(Max.) |
0.4mm |
0.5mm |
4mm |
4mm |
2mm |
1mm |
5mm |
5mm |
||
Movement diferential |
MD(Max.) |
0.05mm |
0.05mm |
0.4mm |
0.4mm |
0.1mm |
0.12mm |
0.4mm |
0.4mm |
||
over travel |
OT(Min.) |
5 . 5mm |
3.6mm |
6mm |
6mm |
5mm |
3.5mm |
6mm |
6mm |
||
operating position |
Op(mm.) |
38.2± 0.8mm |
49.7 ± 1mm |
|
|
45.8 ±0.8mm |
49.7 ± 0.8mm |
|
