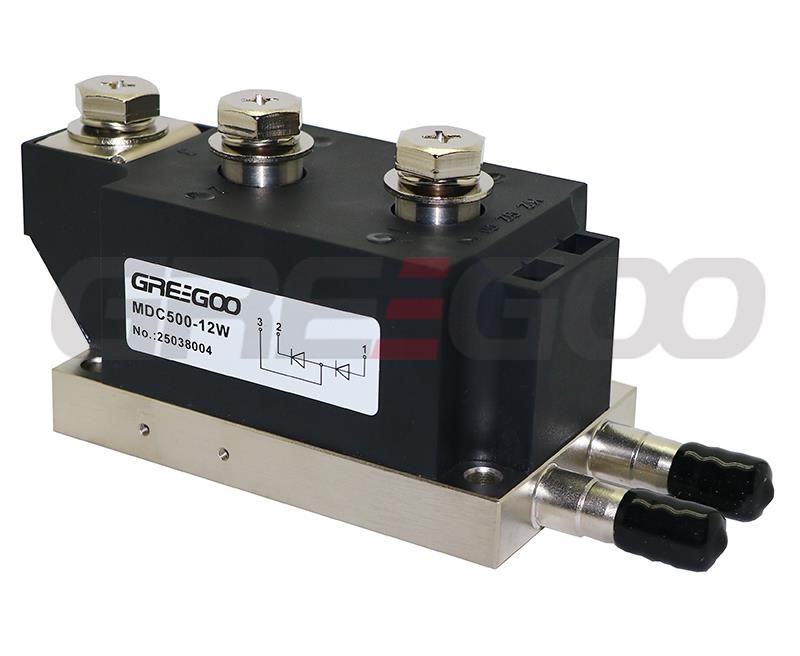

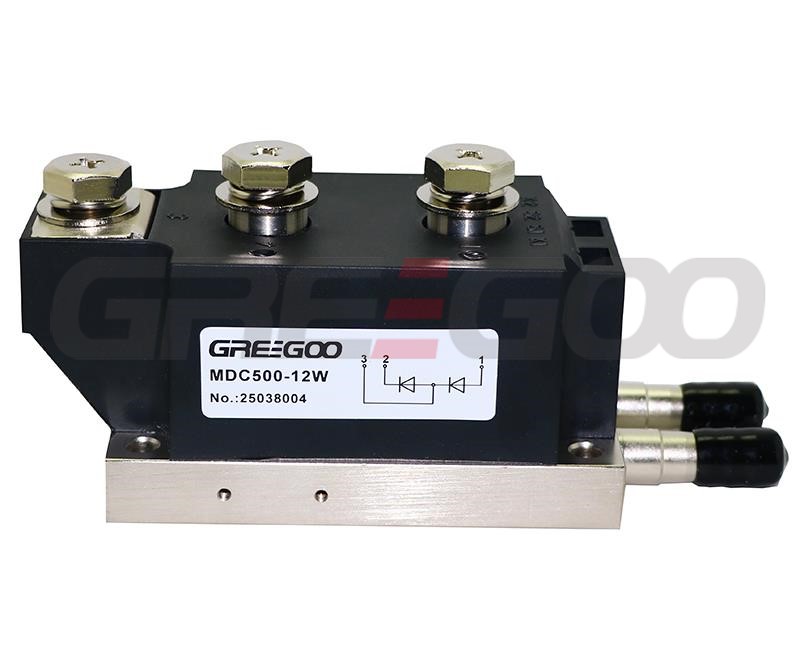

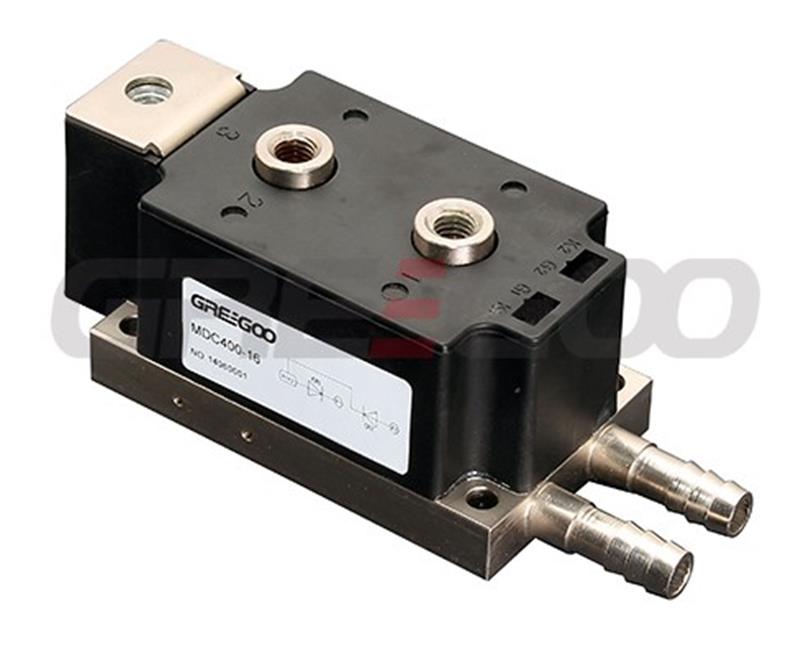

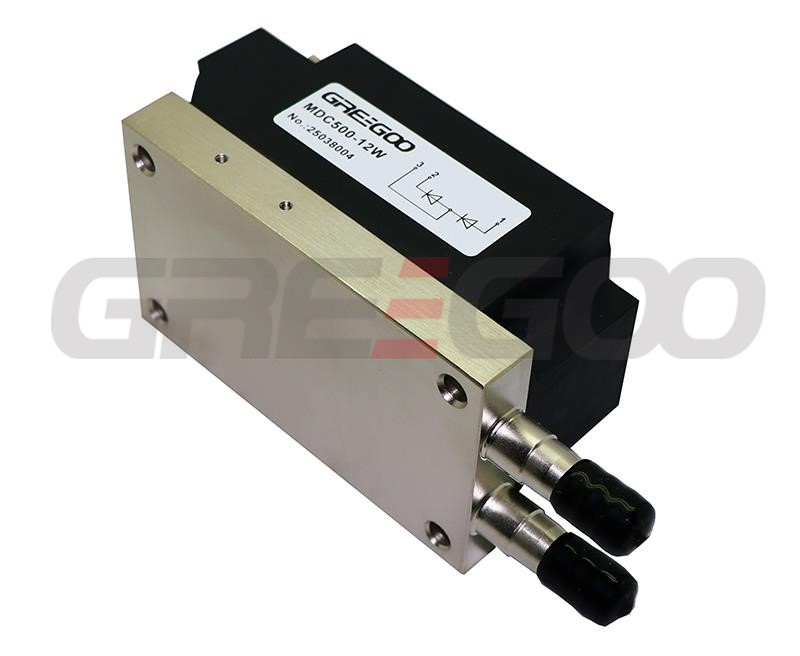

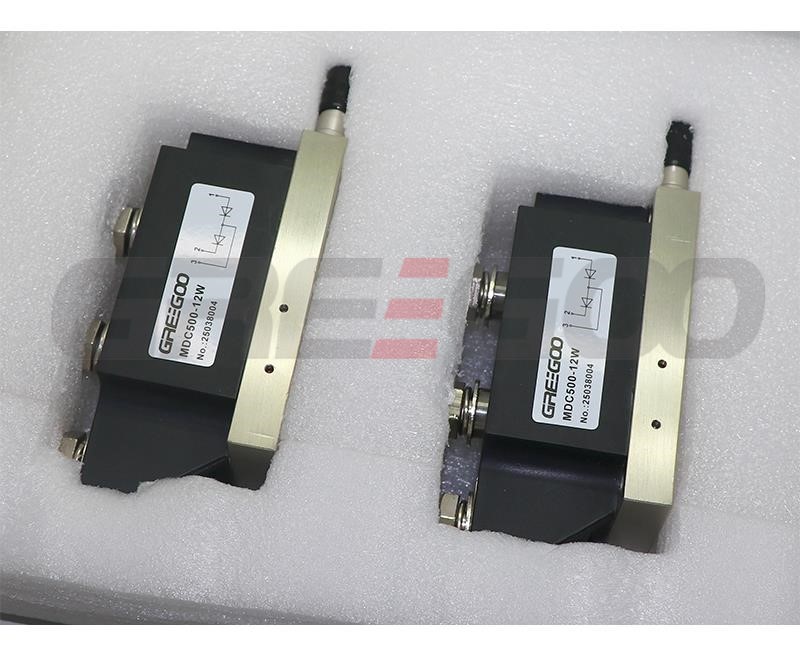

Water-cooling Dual diode module 400/500/600/800/1000A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |
| Model No. | IF(AV) | VRRM | Package |

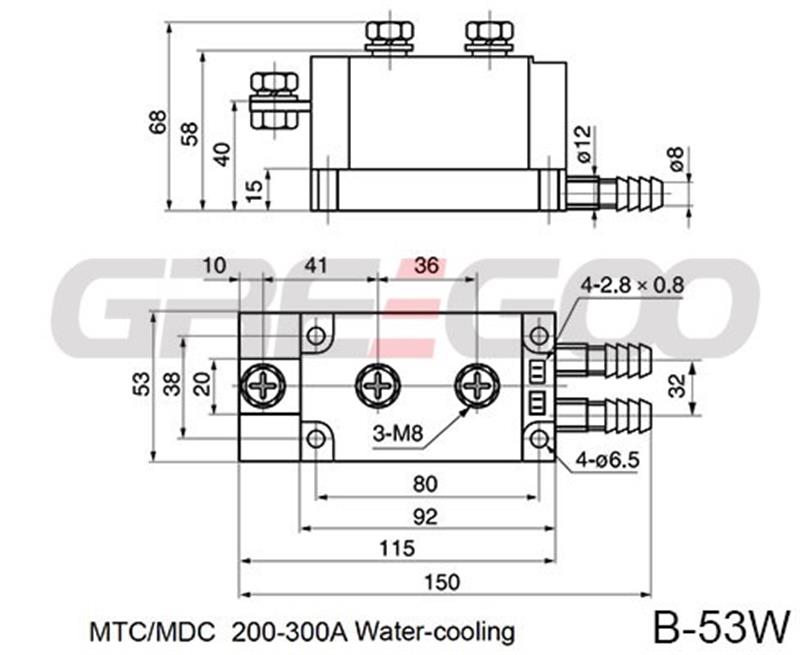

| MDC300-06W | 300A | 600V | B53W |
| MDC300-10W | 300A | 1000V | B53W |
| MDC300-12W | 300A | 1200V | B53W |
| MDC300-16W | 300A | 1600V | B53W |
| MDC300-18W | 300A | 1800V | B53W |

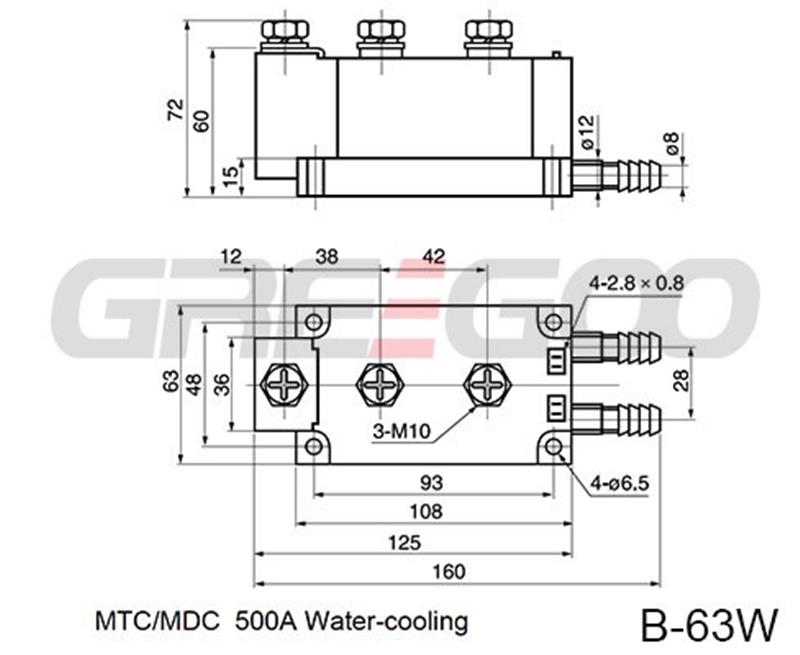

| MDC400-06W | 400A | 600V | B63W |
| MDC400-10W | 400A | 1000V | B63W |
| MDC400-12W | 400A | 1200V | B63W |
| MDC400-16W | 400A | 1600V | B63W |
| MDC400-18W | 400A | 1800V | B63W |
| MDC500-06W | 500A | 600V | B63W |
| MDC500-10W | 500A | 1000V | B63W |
| MDC500-12W | 500A | 1200V | B63W |
| MDC500-16W | 500A | 1600V | B63W |
| MDC500-18W | 500A | 1800V | B63W |

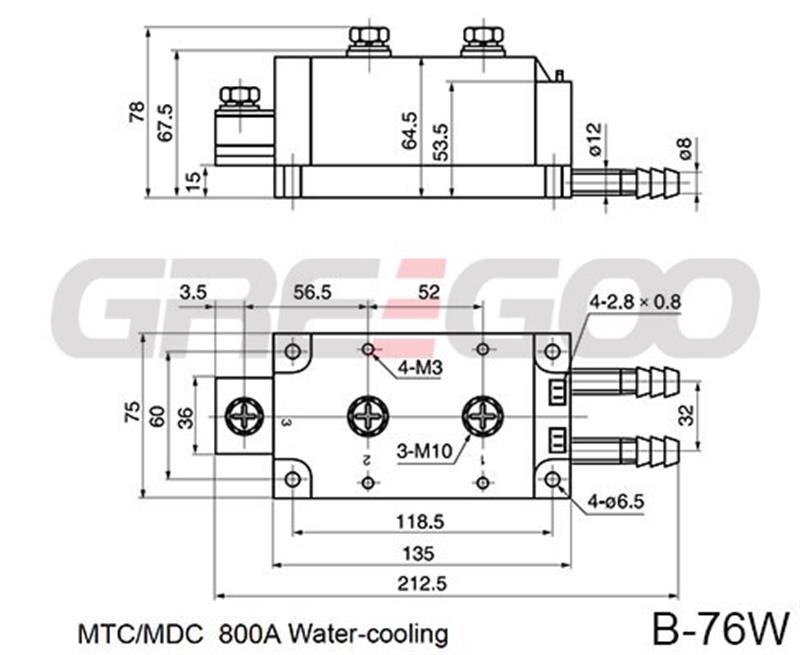

| MDC600-06W | 600A | 600V | B76W |
| MDC600-10W | 600A | 1000V | B76W |
| MDC600-12W | 600A | 1200V | B76W |
| MDC600-16W | 600A | 1600V | B76W |
| MDC600-18W | 600A | 1800V | B76W |
| MDC800-06W | 800A | 600V | B76W |
| MDC800-10W | 800A | 1000V | B76W |
| MDC800-12W | 800A | 1200V | B76W |
| MDC800-16W | 800A | 1600V | B76W |
| MDC800-18W | 800A | 1800V | B76W |
| MDC1000-06W | 1000A | 600V | B76W |
| MDC1000-10W | 1000A | 1000V | B76W |
| MDC1000-12W | 1000A | 1200V | B76W |
| MDC1000-16W | 1000A | 1600V | B76W |
| MDC1000-18W | 1000A | 1800V | B76W |
| MDK300-06W | 300A | 600V | B53W |
| MDK300-10W | 300A | 1000V | B53W |
| MDK300-12W | 300A | 1200V | B53W |
| MDK300-16W | 300A | 1600V | B53W |
| MDK300-18W | 300A | 1800V | B53W |
| MDK400-06W | 400A | 600V | B63W |
| MDK400-10W | 400A | 1000V | B63W |
| MDK400-12W | 400A | 1200V | B63W |
| MDK400-16W | 400A | 1600V | B63W |
| MDK400-18W | 400A | 1800V | B63W |
| MDK500-06W | 500A | 600V | B63W |
| MDK500-10W | 500A | 1000V | B63W |
| MDK500-12W | 500A | 1200V | B63W |
| MDK500-16W | 500A | 1600V | B63W |
| MDK500-18W | 500A | 1800V | B63W |
| MDK600-06W | 600A | 600V | B76W |
| MDK600-10W | 600A | 1000V | B76W |
| MDK600-12W | 600A | 1200V | B76W |
| MDK600-16W | 600A | 1600V | B76W |
| MDK600-18W | 600A | 1800V | B76W |
| MDK800-06W | 800A | 600V | B76W |
| MDK800-10W | 800A | 1000V | B76W |
| MDK800-12W | 800A | 1200V | B76W |
| MDK800-16W | 800A | 1600V | B76W |
| MDK800-18W | 800A | 1800V | B76W |
| MDK1000-06W | 1000A | 600V | B76W |
| MDK1000-10W | 1000A | 1000V | B76W |
| MDK1000-12W | 1000A | 1200V | B76W |
| MDK1000-16W | 1000A | 1600V | B76W |
| MDK1000-18W | 1000A | 1800V | B76W |
| MDA300-06W | 300A | 600V | B53W |
| MDA300-10W | 300A | 1000V | B53W |
| MDA300-12W | 300A | 1200V | B53W |
| MDA300-16W | 300A | 1600V | B53W |
| MDA300-18W | 300A | 1800V | B53W |
| MDA400-06W | 400A | 600V | B63W |
| MDA400-10W | 400A | 1000V | B63W |
| MDA400-12W | 400A | 1200V | B63W |
| MDA400-16W | 400A | 1600V | B63W |
| MDA400-18W | 400A | 1800V | B63W |
| MDA500-06W | 500A | 600V | B63W |
| MDA500-10W | 500A | 1000V | B63W |
| MDA500-12W | 500A | 1200V | B63W |
| MDA500-16W | 500A | 1600V | B63W |
| MDA500-18W | 500A | 1800V | B63W |
| MDA600-06W | 600A | 600V | B76W |
| MDA600-10W | 600A | 1000V | B76W |
| MDA600-12W | 600A | 1200V | B76W |
| MDA600-16W | 600A | 1600V | B76W |
| MDA600-18W | 600A | 1800V | B76W |
| MDA800-06W | 800A | 600V | B76W |
| MDA800-10W | 800A | 1000V | B76W |
| MDA800-12W | 800A | 1200V | B76W |
| MDA800-16W | 800A | 1600V | B76W |
| MDA800-18W | 800A | 1800V | B76W |
| MDA1000-06W | 1000A | 600V | B76W |
| MDA1000-10W | 1000A | 1000V | B76W |
| MDA1000-12W | 1000A | 1200V | B76W |
| MDA1000-16W | 1000A | 1600V | B76W |
| MDA1000-18W | 1000A | 1800V | B76W |
| MDX300-06W | 300A | 600V | B53W |
| MDX300-10W | 300A | 1000V | B53W |
| MDX300-12W | 300A | 1200V | B53W |
| MDX300-16W | 300A | 1600V | B53W |
| MDX300-18W | 300A | 1800V | B53W |
| MDX400-06W | 400A | 600V | B63W |
| MDX400-10W | 400A | 1000V | B63W |
| MDX400-12W | 400A | 1200V | B63W |
| MDX400-16W | 400A | 1600V | B63W |
| MDX400-18W | 400A | 1800V | B63W |
| MDX500-06W | 500A | 600V | B63W |
| MDX500-10W | 500A | 1000V | B63W |
| MDX500-12W | 500A | 1200V | B63W |
| MDX500-16W | 500A | 1600V | B63W |
| MDX500-18W | 500A | 1800V | B63W |
| MDX600-06W | 600A | 600V | B76W |
| MDX600-10W | 600A | 1000V | B76W |
| MDX600-12W | 600A | 1200V | B76W |
| MDX600-16W | 600A | 1600V | B76W |
| MDX600-18W | 600A | 1800V | B76W |
| MDX800-06W | 800A | 600V | B76W |
| MDX800-10W | 800A | 1000V | B76W |
| MDX800-12W | 800A | 1200V | B76W |
| MDX800-16W | 800A | 1600V | B76W |
| MDX800-18W | 800A | 1800V | B76W |
| MDX1000-06W | 1000A | 600V | B76W |
| MDX1000-10W | 1000A | 1000V | B76W |
| MDX1000-12W | 1000A | 1200V | B76W |
| MDX1000-16W | 1000A | 1600V | B76W |
| MDX1000-18W | 1000A | 1800V | B76W |
