Water-cooling thyristor diode module 400A/500A/600A/800A/1000A
Home Products Thyristor Diode ModuleDiode Thyristor ModuleWater-cooling thyristor diode module 400A/500A/600A/800A/1000A
Product Details

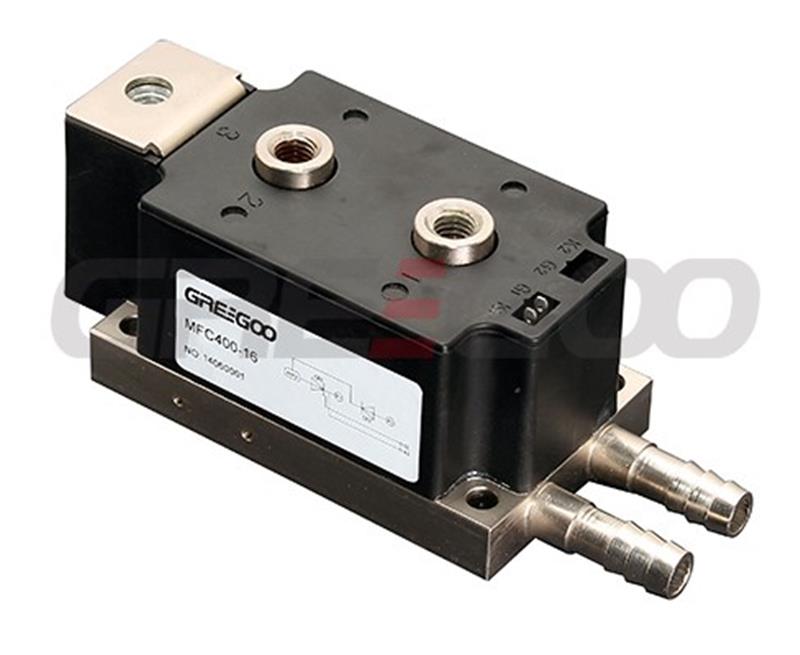

Water-cooling thyristor diode module 400A/500A/600A/800A/1000A

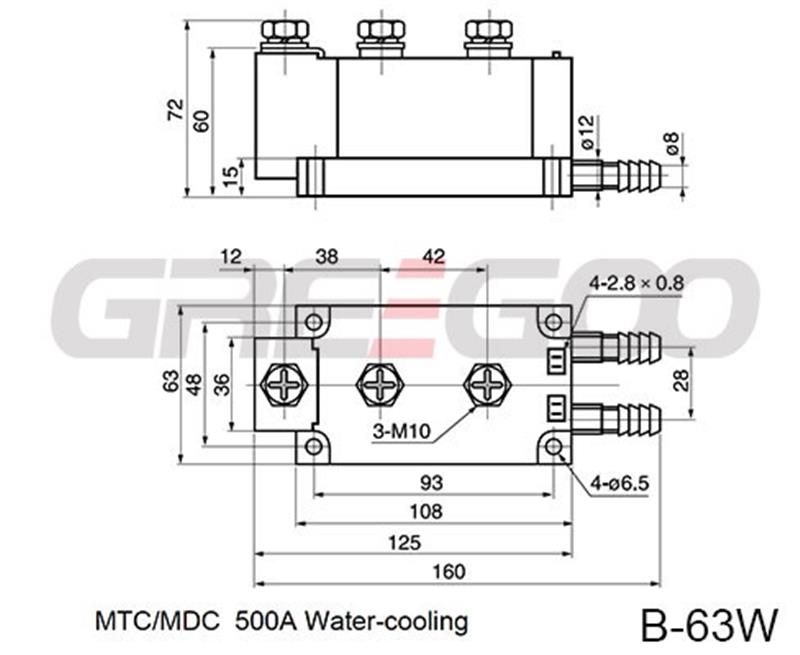

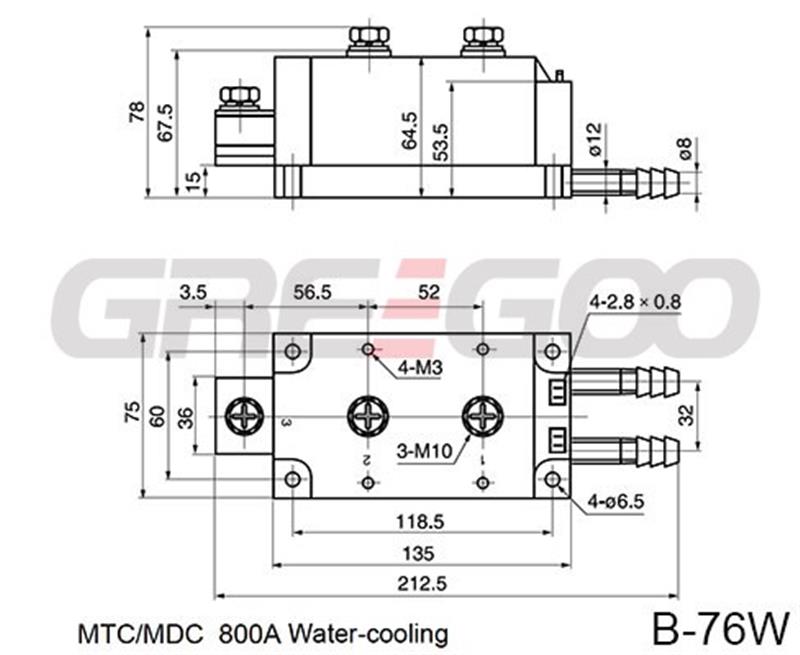

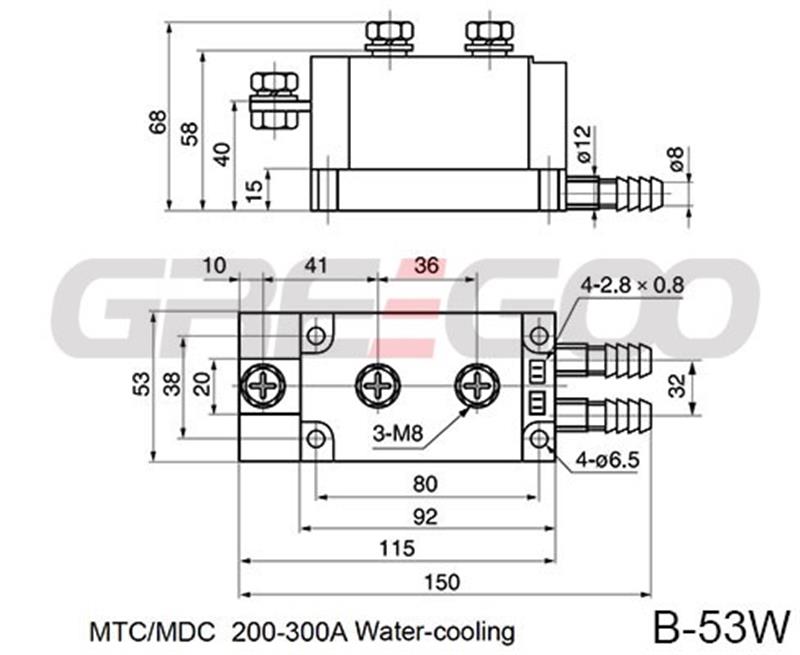

| Symbol | Meaning |
| M | Module |
| F | Phase control thyristor Rectifier diode (T D) |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MFC26-12, thyristor diode module, in series connection, 26A, 1600V. |
| Type | VDRMVRRM | IT(AV) IF(AV) |
ITSM IFSM |
dv/dt | di/dt | IDRM IRRM |
IGT | VGT | IH | VTM/VFM | VTO | rT | Rjc |
| V | TC= 55oC A |
KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | oC/W | |
| *MFC400,MFA400,MFK400,MFX400 | 600-1800 | 400 | 8.5 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1200 | 0.80 | 0.80 | 0.110 |
| *MFC500,MFA500,MFK500,MFX500 | 600-1800 | 500 | 11.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1500 | 0.80 | 0.64 | 0.087 |
| *MFC600,MFA600,MFK600,MFX600 | 600-1800 | 600 | 13.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.90/1800 | 0.80 | 0.53 | 0.073 |
| *MFC800,MFA800,MFK800,MFX800 | 600-1800 | 800 | 16.0 | 800 | 100 | 40 | 200 | 3.0 | 200 | 1.95/2400 | 0.80 | 0.42 | 0.054 |
| *MFC1000,MFA1000,MFK1000,MFX1000 | 600-1800 | 1000 | 20.0 | 800 | 100 | 50 | 200 | 3.0 | 200 | 1.95/3000 | 0.80 | 0.33 | 0.052 |
