High voltage thyristor diode modules (3600-4500V)
Home Products Thyristor Diode ModuleDual Thyristor ModuleHigh voltage thyristor diode modules (3600-4500V)
High voltage thyristor diode modules (3600-4500V)
Features:
Electric insulation between chips and baseplate
International standard packaging
Compress structure
Excellent power cycling capacity
Easy to install and maintain
Small size, less weight
Applications:
AC/DC motor control
Various rectifier power supply
Industrial heating control
Light-dimmer、Contactless switch
Motor soft start、SVC
Welding machine
Frequency converter
UPS、Battery charge
Type | IT(AV) | VDRM/VRRM |
IDRM /IRRM |
VTM | IGT | VGT | H | dV/dt | Viso | Outline | |
V= VDRM /VRRM |
VD=12V | VD= 2/3VDRM |
50Hz,RMS 2mA,1min |
||||||||
@85℃ | 125℃ | 25℃ | 25℃ | 125℃ | 25℃ | ||||||
Max | Max | ITM | mA | V | mA | Min | Min | ||||
A | V | mA | V | A | V/us | V | |||||
MTC/MTK/MTA/MTX 3600-4500V (Air cooling) | |||||||||||

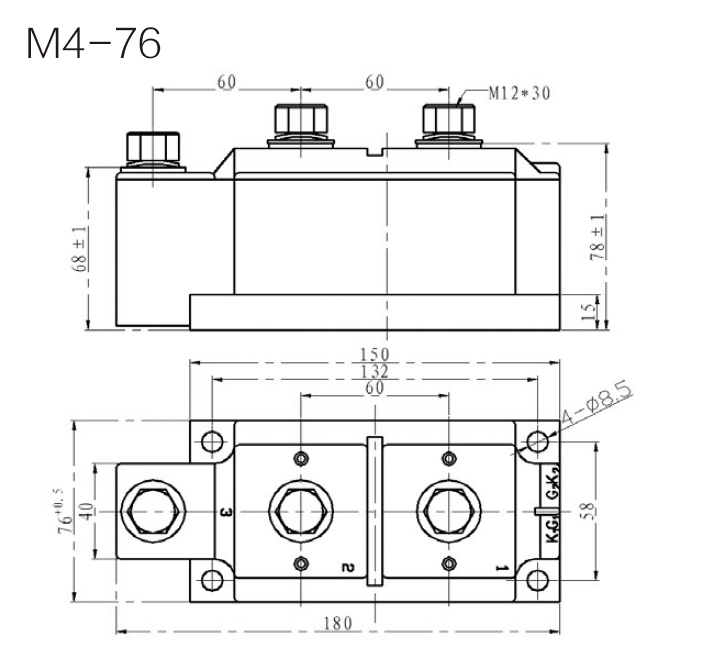

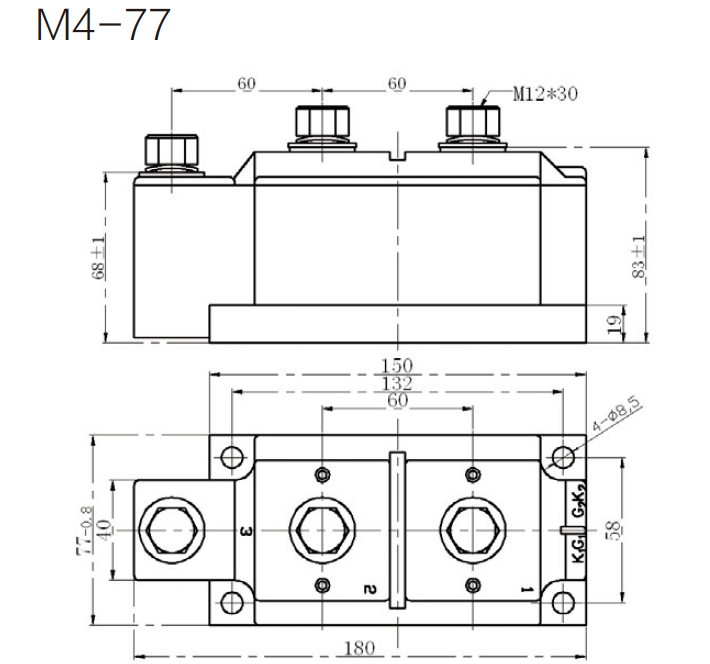

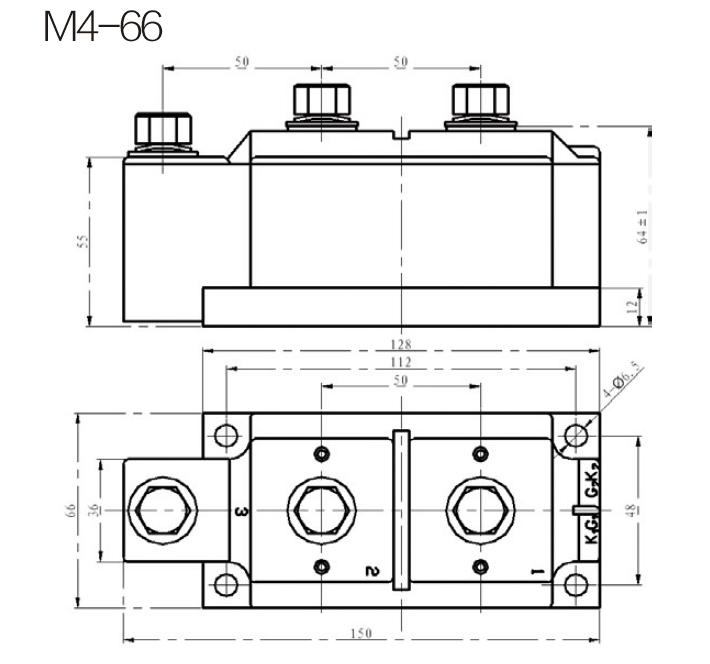

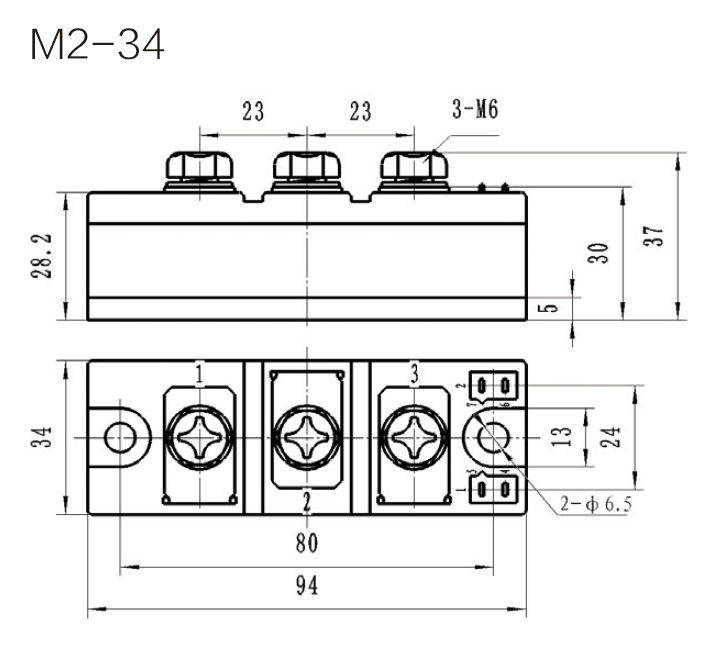

MT*160-** | 160 | 3600-4500 | 30 | 2.40 | 480 | 30-100 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M2-34 |
MT*200-** | 200 | 3600-4500 | 35 | 2.00 | 600 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-53 |
MT*250-** | 250 | 3600-4500 | 35 | 2.10 | 750 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MT*300-** | 300 | 3600-4500 | 35 | 2.20 | 900 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MT*350-** | 350 | 3600-4500 | 35 | 2.20 | 1050 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MT*400-** | 400 | 3600-4500 | 70 | 2.50 | 1200 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-63 |
MT*500-** | 500 | 3600-4500 | 70 | 2.60 | 1500 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MT*600-** | 600 | 3600-4500 | 70 | 2.50 | 1800 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-66 |
MT*800-** | 800 | 3600-4500 | 80 | 2.40 | 2400 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-76 |
MT*1000-** | 1000 | 3600-4500 | 80 | 2.50 | 3000 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-77 |
MFC/MFK/MFA/MFX 3600-4500V (Air cooling) | |||||||||||
MF*160-** | 160 | 3600-4500 | 30 | 2.40/2.20 | 480 | 30-100 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M2-34 |
MF*200-** | 200 | 3600-4500 | 35 | 2.00/1.80 | 600 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-53 |
MF*250-** | 250 | 3600-4500 | 35 | 2.10/1.90 | 750 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MF*300-** | 300 | 3600-4500 | 35 | 2.20/2.00 | 900 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MF*350-** | 350 | 3600-4500 | 35 | 2.20/2.00 | 1050 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MF*400-** | 400 | 3600-4500 | 70 | 2.50/2.30 | 1200 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-63 |
MF*500-** | 500 | 3600-4500 | 70 | 2.60/2.40 | 1500 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | |
MF*600-** | 600 | 3600-4500 | 70 | 2.50/2.30 | 1800 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-66 |
MF*800-** | 800 | 3600-4500 | 80 | 2.40/2.20 | 2400 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-76 |
MF*1000-** | 1000 | 3600-4500 | 80 | 2.50/2.30 | 3000 | 30-120 | 0.8-2.2 | 20-120 | 1000 | 4000-5000 | M4-77 |
MDC/MDK/MDA/MDX 3600-4500V (Air cooling) | |||||||||||
MD*160-** | 160 | 3600-4500 | 10 | 1.80 | 480 | - | - | - | - | 4000-5000 | M2-34 |
MD*200-** | 200 | 3600-4500 | 10 | 1.80 | 600 | - | - | - | - | 4000-5000 | M4-53 |
MD*250-** | 250 | 3600-4500 | 15 | 1.80 | 750 | - | - | - | - | 4000-5000 | |
MD*300-** | 300 | 3600-4500 | 15 | 1.80 | 900 | - | - | - | - | 4000-5000 | |
MD*350-** | 350 | 3600-4500 | 15 | 1.80 | 1050 | - | - | - | - | 4000-5000 | |
MD*400-** | 400 | 3600-4500 | 25 | 1.85 | 1200 | - | - | - | - | 4000-5000 | M4-63 |
MD*500-** | 500 | 3600-4500 | 25 | 1.90 | 1500 | - | - | - | - | 4000-5000 | |
MD*600-** | 600 | 3600-4500 | 35 | 1.90 | 1800 | - | - | - | - | 4000-5000 | M4-66 |
MD*800-** | 800 | 3600-4500 | 35 | 1.95 | 2400 | - | - | - | - | 4000-5000 | M4-76 |
MD*1000-** | 1000 | 3600-4500 | 35 | 2.00 | 3000 | - | - | - | - | 4000-5000 | M4-77 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
