◆Durable tungsten contacts for hot load switching
◆Vacuum dielectric for low and stable contact resistance
|

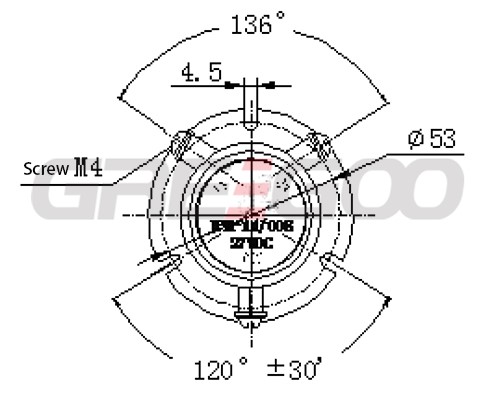

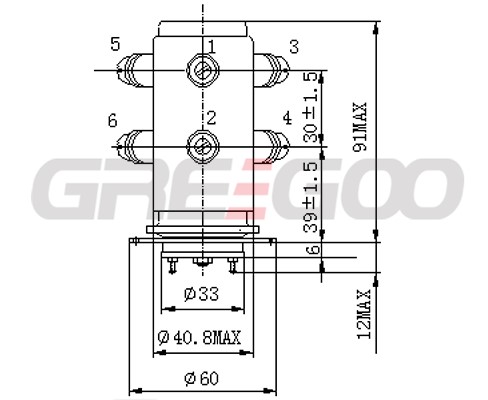

Product Specification
|
Units |
GHR-24 . |
||
|

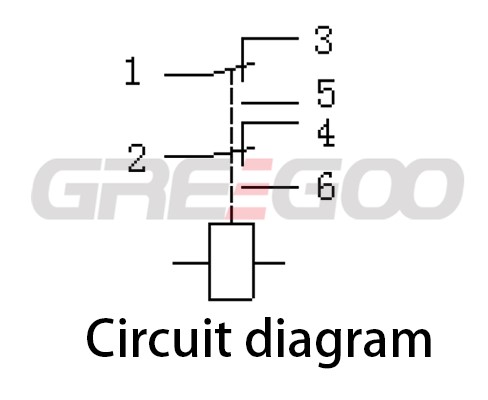

Contact Form |
2C |
|||
|
Contact Arrangement |
DPDT |
|||
|
Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) |
KV Peak |
20 |
||
|
Rated Operating Voltage, (kV,Peak), Contacts & to Base (15 μA Leakage Max.) |
DC or 60Hz |
KV Peak |
15 |
|
|
2.5MHz |
KV Peak |
- |
||
|
16MHz |
KV Peak |
- |
||
|
32MHz |
KV Peak |
- |
||
|
Continuous Current, Carry Max |
DC or 60Hz |
Amps |
30 |
|
|
2.5MHz |
Amps |
- |
||
|
16MHz |
Amps |
- |
||
|
32MHz |
Amps |
- |
||
|
Coil Hi -Pot (V RMS, 60 Hz) |
V |
500 |
||
|
Capacitance |
Across Open Contacts |
pF |
3 |
|
|
Contacts to Ground |
pF |
3.5 |
||
|
Resistance, Contact Max @ 1A, 28Vdc |
Ω |
0.005 |
||
|
Operate Time, Max |
ms |
30 |
||
|
Release Time, Max |
ms |
10 |
||
|
Operating Temperature Ambient |
°C |
-55~+125 |
||
|
Shock, 1/2 Sine11ms (Peak) |
G’s |
50 |
||
|
Vibration, Sine (10-2000 Hz Peak) |
G’s |
10 |
||
|
Mechanical Life |
Cycles |
1million |
||
|
Weight |
g |
380 |
||
|
COIL RATINGS |
||
|
Nominal, Volts dc |
27 |
12 |
|
Pick-up, Volts dc,Max |
16 |
8 |
|
Drop-Out, Volts dc,Min |
1 |
0.5 |
|
Coil Resistance (Ω±10%) |
240 . |
60 . |
※ Ratings listed are for 25°C
