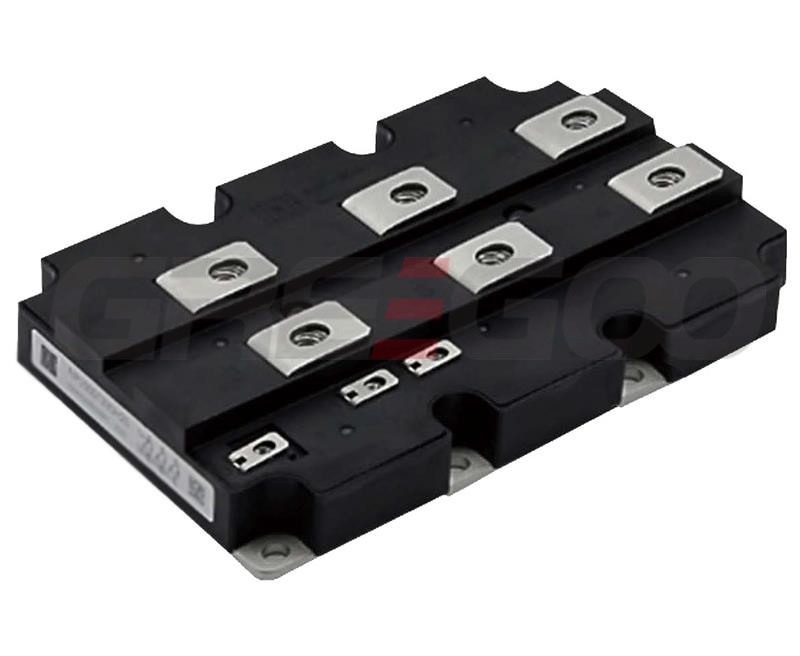

High Voltage IGBT Module 3300V and 4500V
Feature:
Low Switching Loss
Low Rth AIN DBC
High Reliablilty
AISIC Baseplate
Positive Temperature Coefficient
Specification
| Part No. | VCES | lc@Tc=100°C, Tvj=Tvjmax | Vce(sat) | Vf | Tvjop max | Package |
| G1200S45H4K1 | 4500V | 1200A | 2.7 | 2.6 | 125℃ | H4 |
| G800S45H3K1 | 4500V | 800A | 2.7 | 2.6 | 125℃ | H3 |
| G1500S33H2K1 | 3300V | 1500A | 2.45 | 2.1 | 150℃ | H2 |
| G1000S33H1K1 | 3300V | 1000A | 2.45 | 2.1 | 150℃ | H1 |
| G3600S17H2K1 | 1700V | 3600A | 2.69 | 1.75 | 150℃ | H2 |

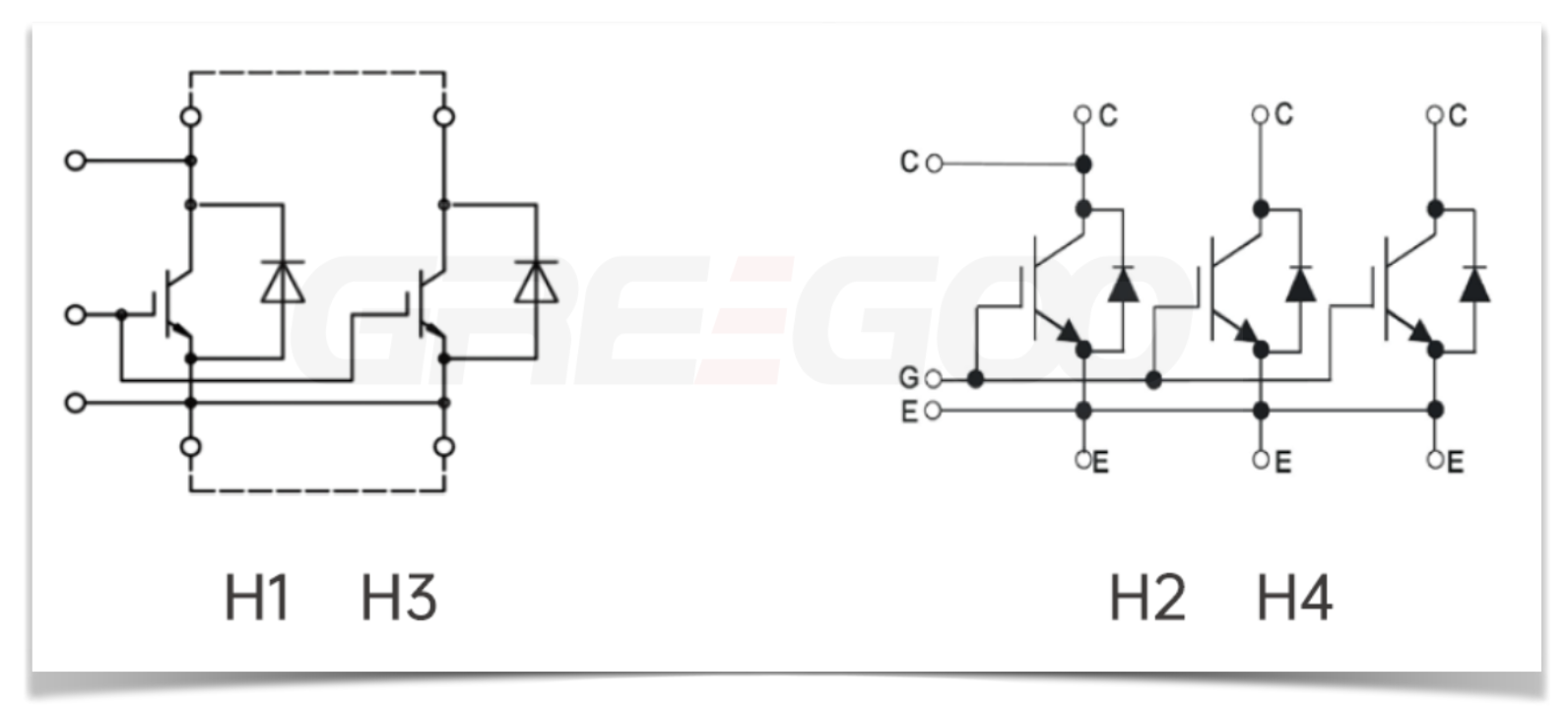

Diagram
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
