IRKT500 IRKH500 IRKL500 Thyristor Diode Module
Home Products Thyristor Diode ModuleDual Thyristor ModuleIRKT500 IRKH500 IRKL500 Thyristor Diode Module
Features and Application
IRKT500 IRKH500 IRKL500 Thyristor Diode Module
Features
High current capability
3000 VRMS isolating voltage with non-toxic substrate
High surge capability
Industrial standard package
Typical Applications
Motor starters
DC motor controls - AC motor controls
Uninterruptable power supplies

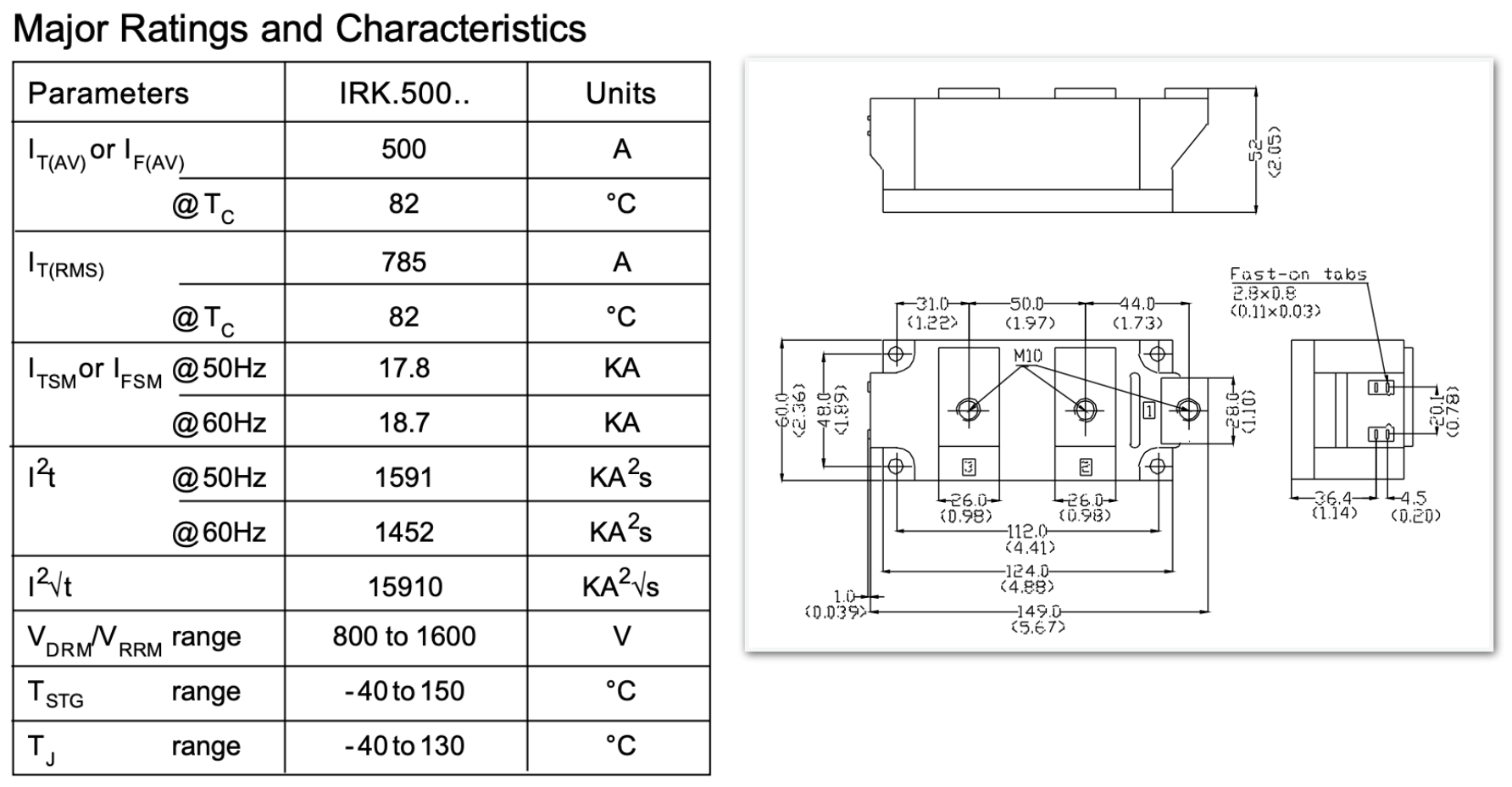

Major Ratings and Characteristics
Circuit Configurations Table
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
