SKD146/16 three phase Diode Bridge Module
Home Products Diode Bridge ModuleSemikron Diode Bridge moduleSKD146/16 three phase Diode Bridge Module
Product details

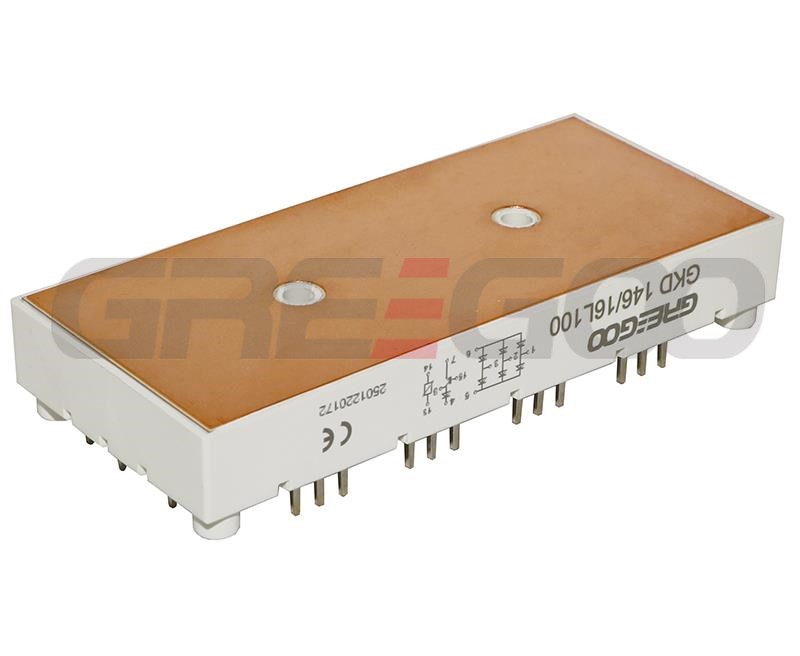

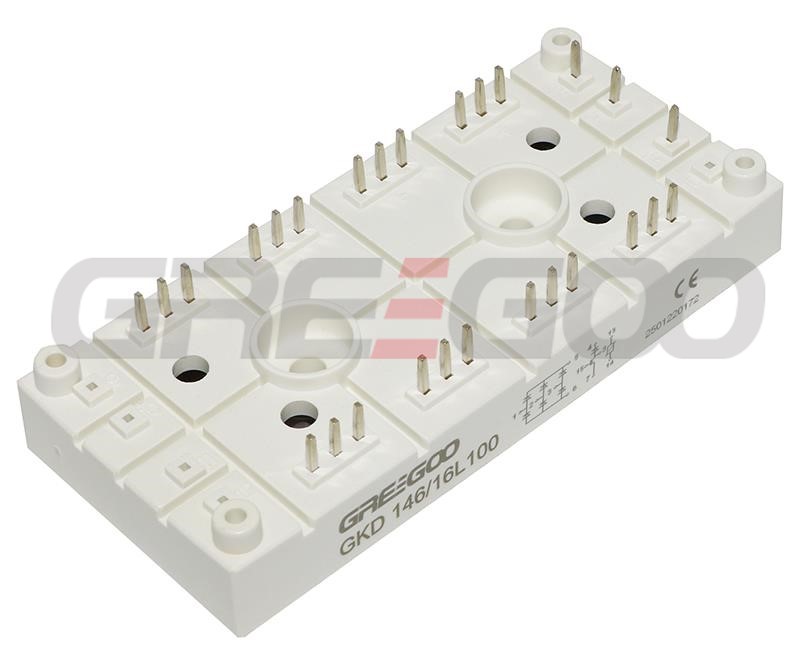

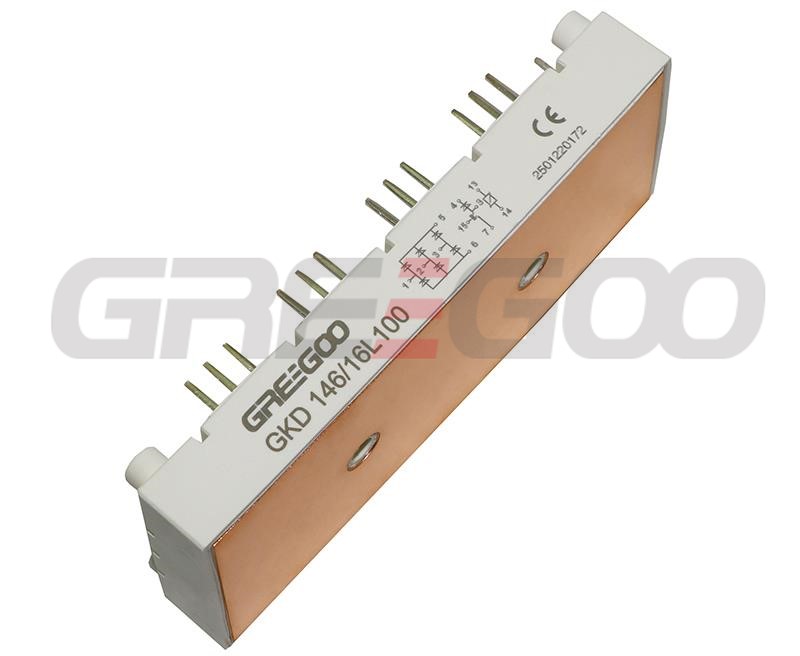

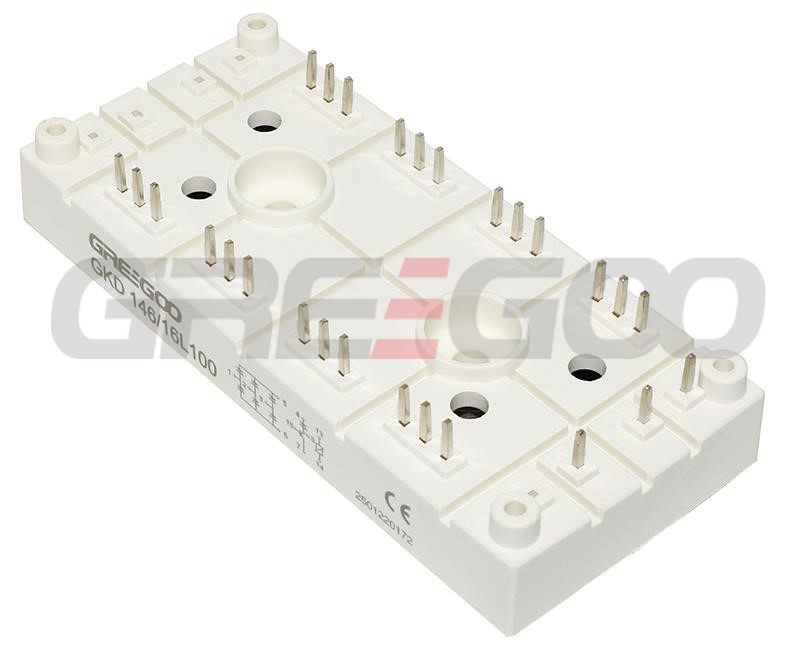

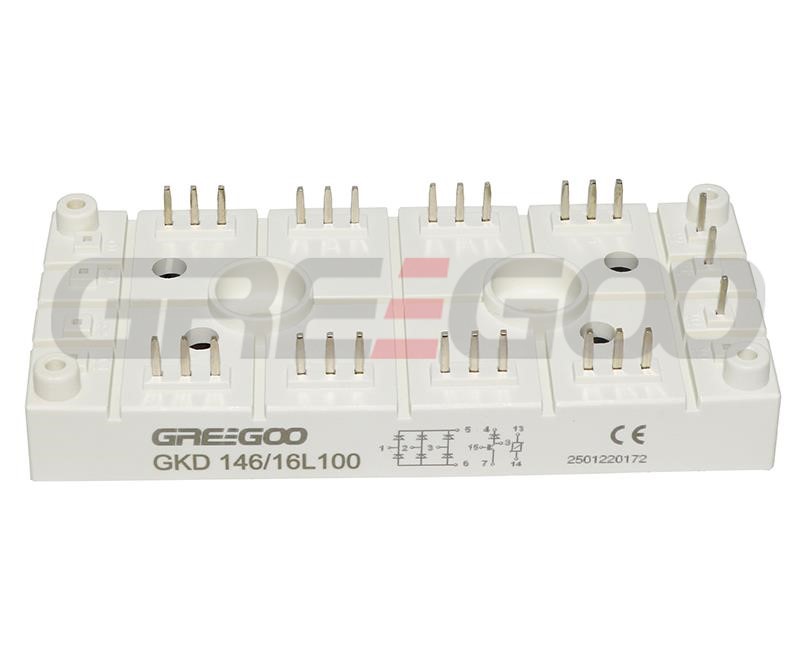

SKD146/16 three phase Diode Bridge Module
Features
- Compact desig
- Two screws mounting
- Heat transfer and isolation through direct copper bonded aluminium oxide ceramic (DCB)
- High surge currents
- Up to 1600 V reverse voltage
Typical Applications
- DC drives
- Controlled filed rectifiers for DC motor
- Controlled battery charger

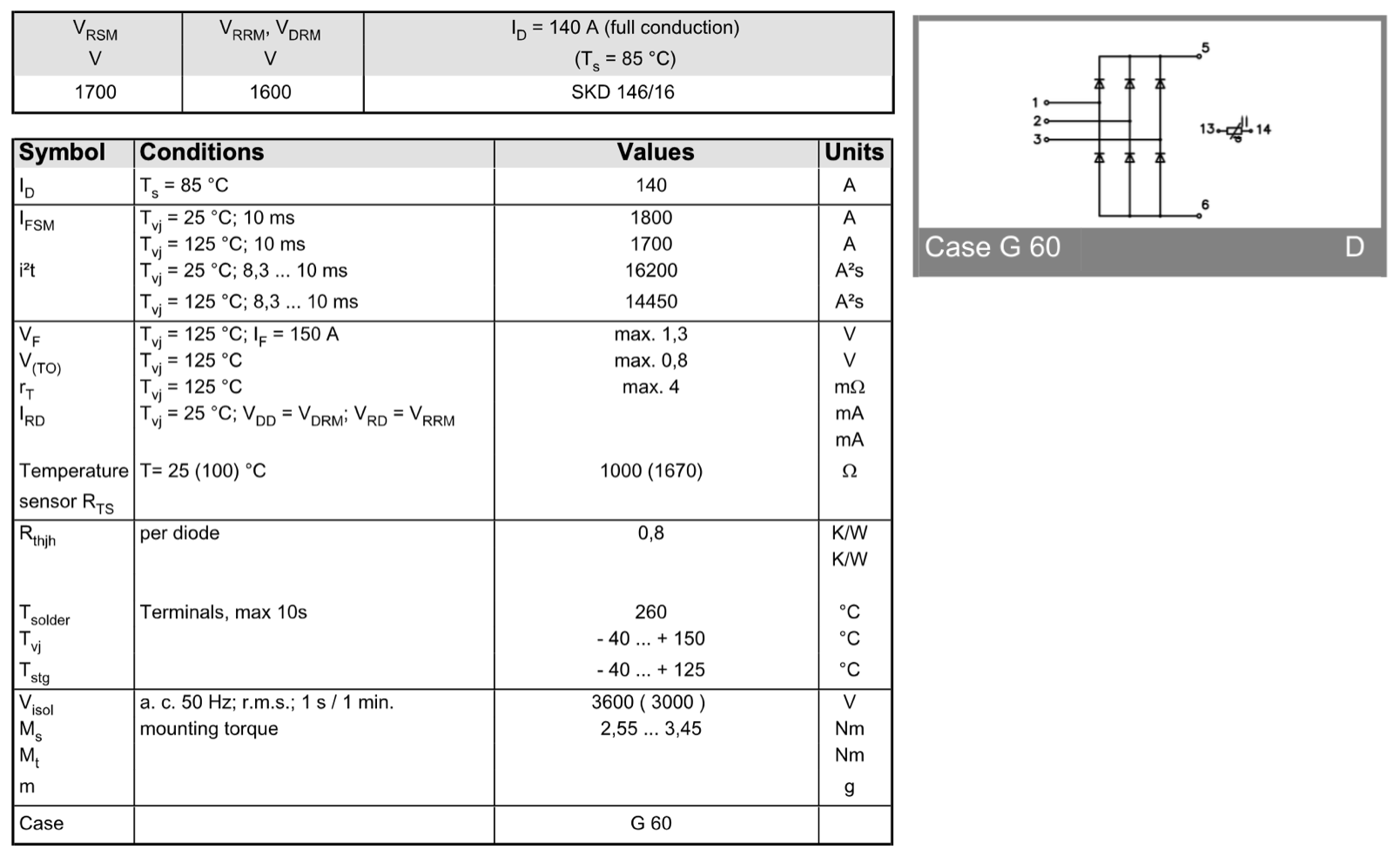

Specification
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
