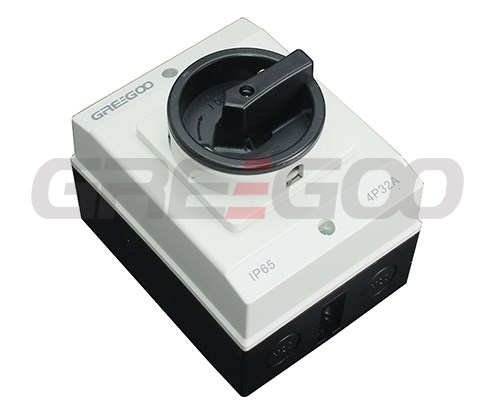

DC Solar Isolator
Solar Isolators SI are switch gears for interupting the DC/AC-Inverter from the solar-panels. Photovoltaic-installations have to be equipped with DC-isolators according to IEC 60364-7-712.Switch Disconnectors SI ensure a reliable switching up to 32A with 1000V in the category DC21B. The construction of the contacts and the material selection guarantee that no oxidation (small switching frequency) develops, and is thus prevented inadmissible heating-up. The switching speed at the manually operated handle does not have an effect on the switching attitude of the contacts.- IP65 rated enclosure
- Specifically developed for solar installations
- Knife switch contacts and arc cooling chambers
- High reliability rotary snap action mechanism
- High speed trigger ratchet switching (5ms max)
- Operator independent switching speed
- Maximum 1Nm torque for easy operation
- 16mm2 box terminals for easy wiring
- Top, bottom M20/25 and rear cable entry
