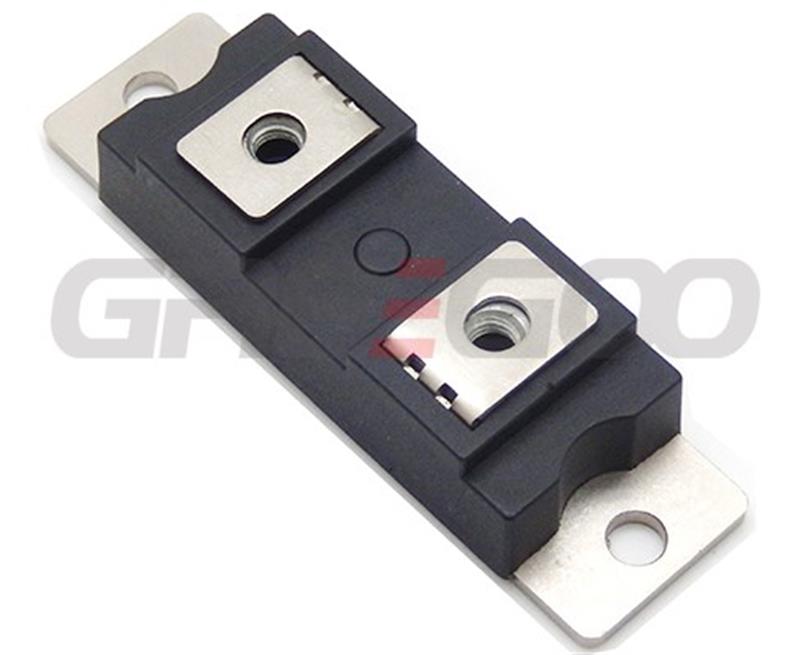

Ultra-Fast Soft Recovery Diode Module MFDK200-400
Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems. These diode modules are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.
Features
Repetitive Reverse Voltage : VRRM = 400V
Low Forward Voltage Drop : VF(typ.) = 1.5V
Average Forward Current : IF(AV.) = 200A @ Tc= 100℃
Ultra-Fast Reverse Recovery Time : trr(typ.) = 180 ns
Extensive Characterization of Recovery Parameters
Reduced EMI and RFI

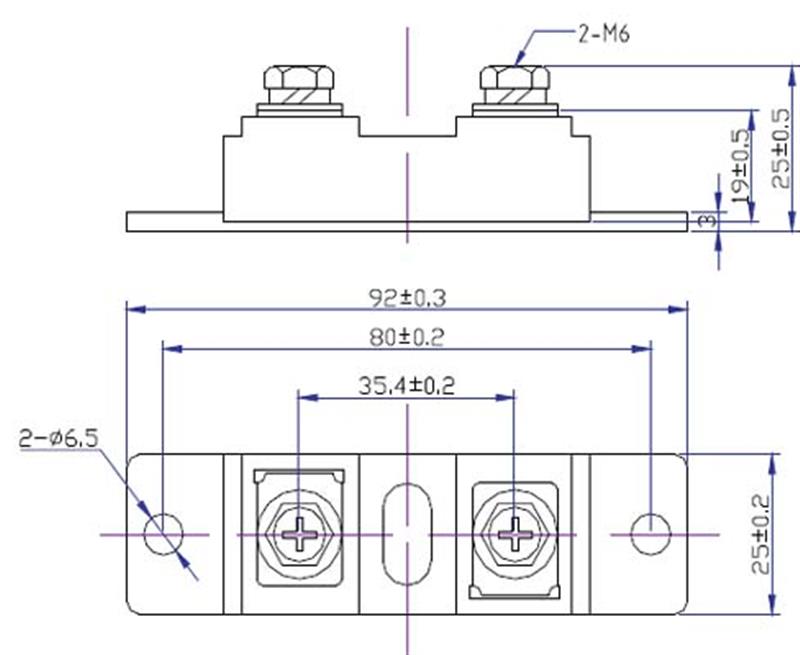

Non Isolation Type Package
Applications
Motor Drives, Free wheel use, High Power Converters, Welders, Various Switching and Telecommunication Power Supply.
