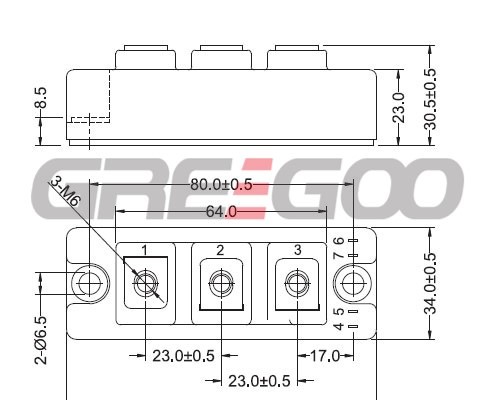

G1 half bridge chopper IGBT module
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G50HF120S | 1200 | 50 | 1.9 | 11.6 | 0.35 | G1 |
| G75HF120S | 1200 | 75 | 1.9 | 18.4 | 0.29 | G1 |
| G100HF120S | 1200 | 100 | 1.9 | 19.6 | 0.25 | G1 |
| G50HF120TE | 1200 | 50 | 1.9 | 12.5 | 0.28 | G1 |
| G75HF120TE | 1200 | 75 | 1.9 | 16.8 | 0.23 | G1 |
| G100HF120TE | 1200 | 100 | 1.9 | 18.4 | 0.19 | G1 |
| G50HF120TK | 1200 | 50 | 2.2 | 9.9 | 0.29 | G1 |
| G75HF120TK | 1200 | 75 | 2.2 | 12.9 | 0.23 | G1 |
| G100HF120TK | 1200 | 100 | 2.2 | 13.6 | 0.2 | G1 |
| G50HF120NU | 1200 | 50 | 3.1 | 8.6 | 0.35 | G1 |
| G75HF120NU | 1200 | 75 | 3.1 | 9.2 | 0.3 | G1 |
| G100HF120NU | 1200 | 100 | 3.1 | 12.7 | 0.25 | G1 |

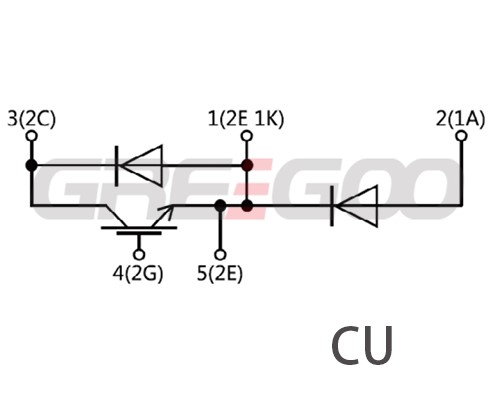

| G50CU120S | 1200 | 50 | 1.9 | 11.6 | 0.35 | G1 |
| G75CU120S | 1200 | 75 | 1.9 | 18.4 | 0.29 | G1 |
| G100CU120S | 1200 | 100 | 1.9 | 19.6 | 0.25 | G1 |
| G50CU120TE | 1200 | 50 | 1.9 | 12.5 | 0.28 | G1 |
| G75CU120TE | 1200 | 75 | 1.9 | 16.8 | 0.23 | G1 |
| G100CU120TE | 1200 | 100 | 1.9 | 18.4 | 0.19 | G1 |
| G50CU120TK | 1200 | 50 | 2.2 | 9.9 | 0.29 | G1 |
| G75CU120TK | 1200 | 75 | 2.2 | 12.9 | 0.23 | G1 |
| G100CU120TK | 1200 | 100 | 2.2 | 13.6 | 0.2 | G1 |
| G50CU120NU | 1200 | 50 | 3.1 | 8.6 | 0.35 | G1 |
| G75CU120NU | 1200 | 75 | 3.1 | 9.2 | 0.3 | G1 |
| G100CU120NU | 1200 | 100 | 3.1 | 12.7 | 0.25 | G1 |
| G50CU120S | 1200 | 50 | 1.9 | 11.6 | 0.35 | G1 |
| G75CU120S | 1200 | 75 | 1.9 | 18.4 | 0.29 | G1 |
| G100CU120S | 1200 | 100 | 1.9 | 19.6 | 0.25 | G1 |
| G50CU120TE | 1200 | 50 | 1.9 | 12.5 | 0.28 | G1 |
| G75CU120TE | 1200 | 75 | 1.9 | 16.8 | 0.23 | G1 |
| G100CU120TE | 1200 | 100 | 1.9 | 18.4 | 0.19 | G1 |
| G50CU120TK | 1200 | 50 | 2.2 | 9.9 | 0.29 | G1 |
| G75CU120TK | 1200 | 75 | 2.2 | 12.9 | 0.23 | G1 |
| G100CU120TK | 1200 | 100 | 2.2 | 13.6 | 0.2 | G1 |
| G50CU120NU | 1200 | 50 | 3.1 | 8.6 | 0.35 | G1 |
| G75CU120NU | 1200 | 75 | 3.1 | 9.2 | 0.3 | G1 |
| G100CU120NU | 1200 | 100 | 3.1 | 12.7 | 0.25 | G1 |
| G50HF60TE | 600 | 50 | 1.7 | 2 | 0.47 | G1 |
| G75HF60TE | 600 | 75 | 1.7 | 6 | 0.6 | G1 |
| G100HF60TE | 600 | 100 | 1.7 | 9 | 0.45 | G1 |
| G150HF60TE | 600 | 150 | 1.7 | 14 | 0.3 | G1 |
| G200HF60TE | 600 | 200 | 1.7 | 19 | 0.25 | G1 |
| G50HF60TK | 600 | 50 | 1.9 | 3 | 0.25 | G1 |
| G75HF60TK | 600 | 75 | 1.9 | 4.5 | 0.21 | G1 |
| G100HF60TK | 600 | 100 | 1.9 | 7 | 0.17 | G1 |
| G150HF60TK | 600 | 150 | 1.9 | 11.5 | 0.14 | G1 |
| G200HF60TK | 600 | 200 | 1.9 | 16.4 | 0.12 | G1 |
| G50HF170S | 1700 | 50 | 2.3 | 40.5 | 0.23 | G1 |
| G75HF170S | 1700 | 75 | 2.3 | 59 | 0.18 | G1 |
| G100HF170S | 1700 | 100 | 2.3 | 80 | 0.13 | G1 |
