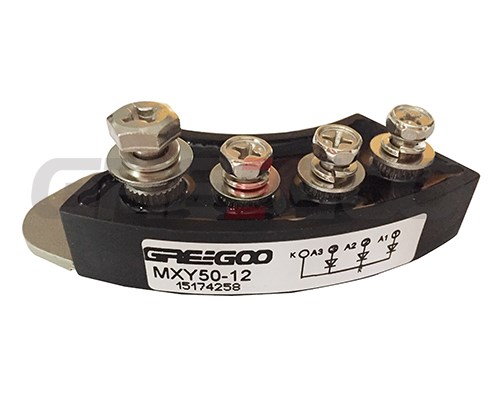

Generator rectifier bridge module

Generator rectifier bridge module

Features
- Non-insulation
- Baseplate communal electrode
- International standard packing
- Excellent temperature feature
- High IFSM (ITSM )
- Low VFM (VTM )

Applications
- Welding Power
- DC Power
- Frequency transformer

Ordering Information Table

M	x	G	100	-	04
1	2	3	4		5

1. Power module
2. X-Generator bridge rectifier
3. Circuit form: G=3 phase common positive pole; Y=3 phase common negetive pole
4. Current code: IF(AV)
5. Voltage code: Code x 100=VRRM

Explanation
- IGT ,VGT ,IH are all TA =25℃ test data,others are all TA =T jm test data.
- I2t=I2TSM ×tW /2:tW=Half sine wave current,when at 50Hz,I2t=0.005I2TSM (A2S)
- When at 60Hz,ITSM (8.3ms)=ITSM (10ms)×1.066,Tj=Tjm I2t(8.3ms)=I2t(10ms)×0.943,Tj =Tjm

Genarator bridge rectifier series

type	IO(AV)	IFSM	VFM	VISO	VRRM	IRRM	Rjc	ar (biggest centrifugal capacity)	outline
type	A	A	V	V	V	mA	℃/W	g	outline
MXG(Y)40	40	470	1.1	2500	100∼1600	10	1.5	2000	M37
MXG(Y)50	50	750	1.1	2500	100∼1600	10	1.5	2000	M37
MXG(Y)70	70	1000	1.1	2500	100∼1600	10	0.80	2000	M37
MXG(Y)70B	70	1000	1.1	2500	100∼1600	10	0.80	2000	M38
MXG(Y)100	100	1820	1.1	2500	100∼1600	10	0.80	2000	M38
