Tension Sensors
Home Products Proximity Photoelectric SensorTextile SensorsTension Sensors

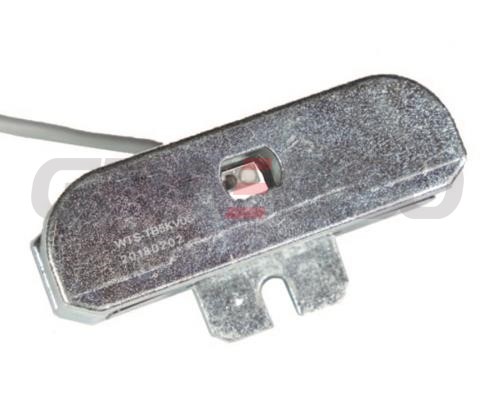

Tension Sensors
|
Model |
WTS-TB5KV05/WTS-TB3KV03 |
|
Tension range |
0-5000cN/0-3000cN |
|
Overload protection |
Mechanical overload protection |
|
Response frequency |
fn>=175Hz(-5%) |
|
Voltage |
15-24V DC |
|
Linearity |
0±3.0% |
|
Humidity |
40% to 80% |
|
Operating Temperature |
10℃to 50℃ |
Need more information?
Contact us to request pricing, availability and customization options.
