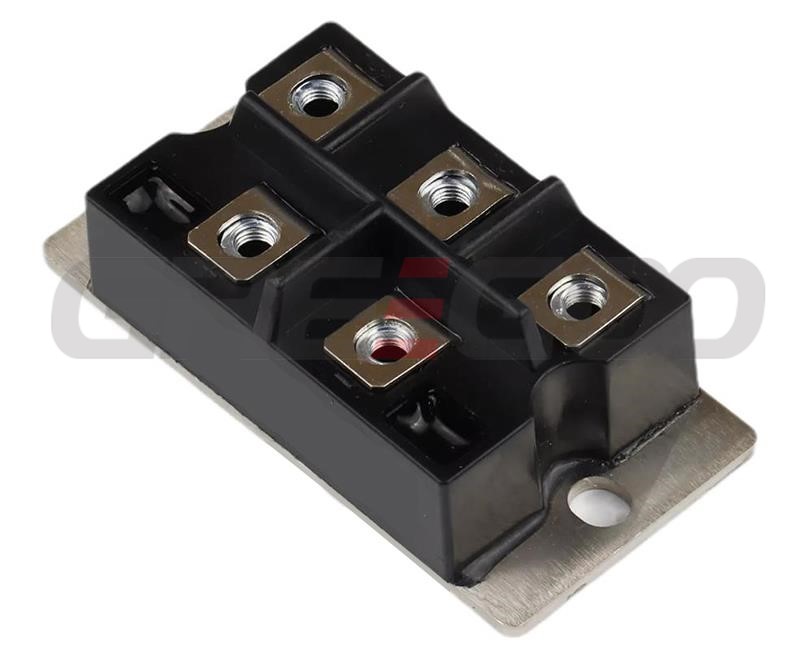

DF40AA120 DF40AA160 DF60AA120 DF60AA160 Three Phase Bridge Diode

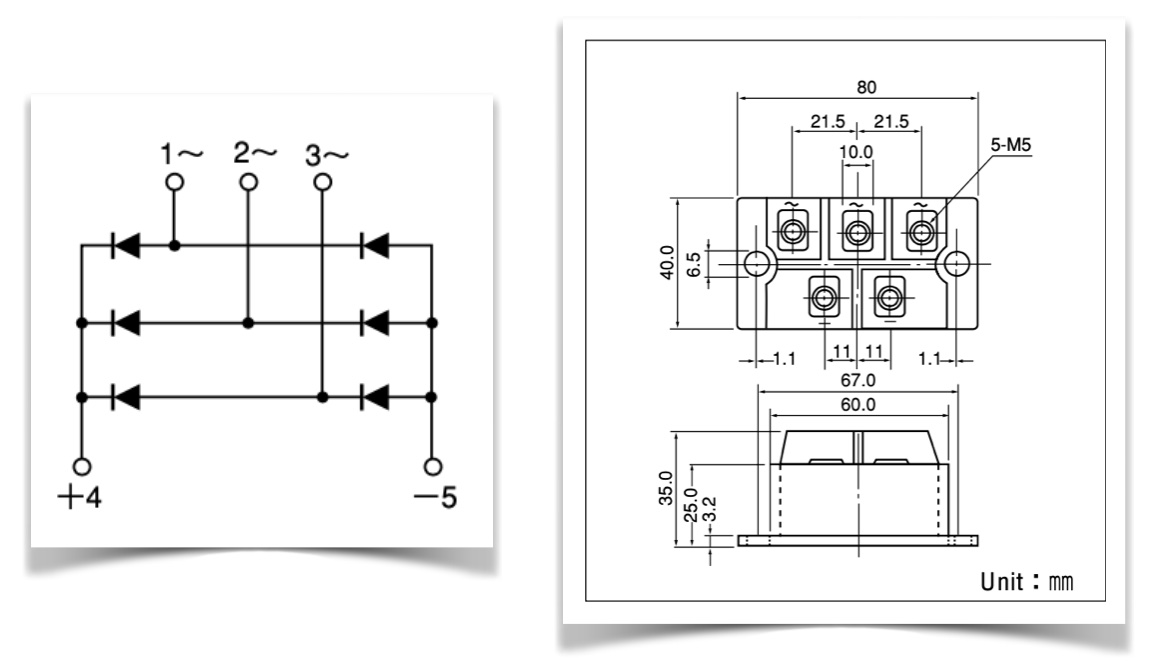

Power Diode Module DF40AA, DF60AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction Output DC current is 60Amp (Tc=112℃) Repetitive peak reverse voltage is up to 1,600V.

Features:
●TjMax=150℃
●Isolated Mounting Base
●High reliability by unique glass passivation

Applications:
AC. DC Motor Drive/AVR/Switching
―for three phase rectification
