CM-N micro switch
Models |

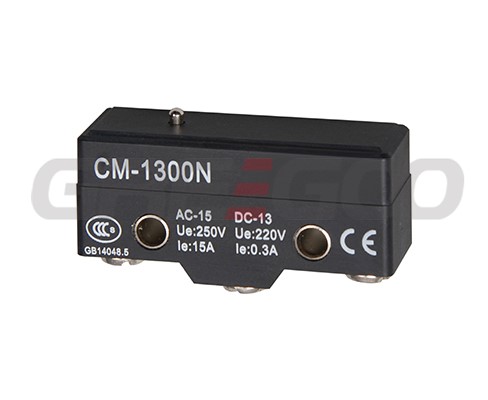

CM1300N |
CM1301N |
CM1303N CM1303NM |
CM1305N |
CM1306N |
CM1307N |

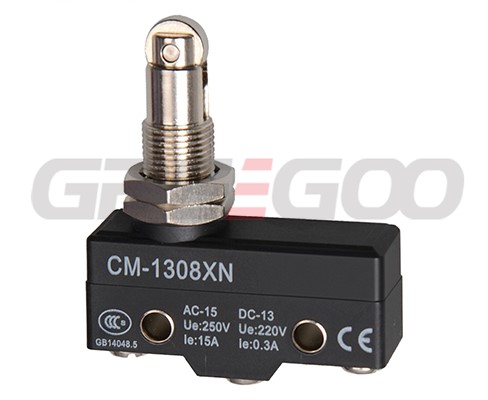

CM1308N CM1308XN |

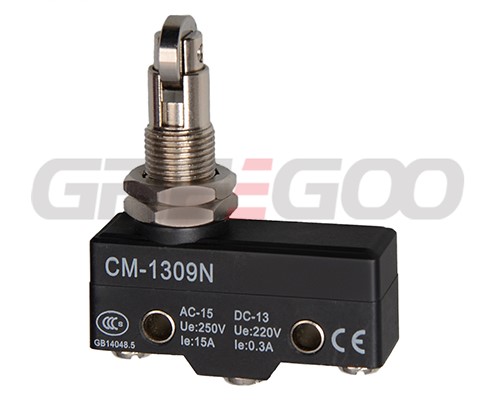

CM1309N |
CM1701N CM1706N |
CM1702N |
CM1703N CM1703NM |
CM1704N CM1704NM |
CM1705N |
CM1743N CM1743NM |
OF (Max.) |
350g |
300g |
300g |
350g |
350g |
350g |
350g |
350g |
70g |
160g |
100g |
160g |
10g |
160g |
RF (Min.) |
114g |
50g |
50g |
114g |
114g |
114g |
114g |
114g |
14g |
28g |
22g |
42g |
3g |
42g |
PT (Max.) |
0.4mm |
4mm |
4mm |
0.4mm |
0.4mm |
0.4mm |
0.4mm |
0.4mm |
10mm |
5mm |
7.1mm |
2.7mm |
20mm |
2.7mm |
OT (Min.) |
0.13mm |
1.6mm |
1.6mm |
1.6mm |
1.6mm |
5.5mm |
3.58mm |
3.58mm |
5.6mm |
2mm |
4mm |
2.4mm |
5.6mm |
2.4mm |
MD (Max.) |
0.05mm |
1.3mm |
1.3mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
0.05mm |
1.27mm |
1mm |
1.02mm |
0.5mm |
3mm |
0.5mm |
FP (Max.) |
20.6mm |
31.8mm |
28.2mm |
24.8mm |
36.5mm |
32.5mm |
43.6mm |
|||||||
OP(mm) |
15.9±0.4 |
17.4±0.8 |
28.6±0.8 |
28.2±0.5 |
21.5±0.5 |
21.8±0.8 |
33.4±1.2 |
33.4±1.2 |
19±0.8 |
19±0.4 |
30.2±0.8 |
30.2±0.4 |
19±0.8 |
43.1±0.8 |
