CM13 Micro Switches
Home Products Switch & SwitchgearLimit SwitchCM13 Micro Switches
Product Details

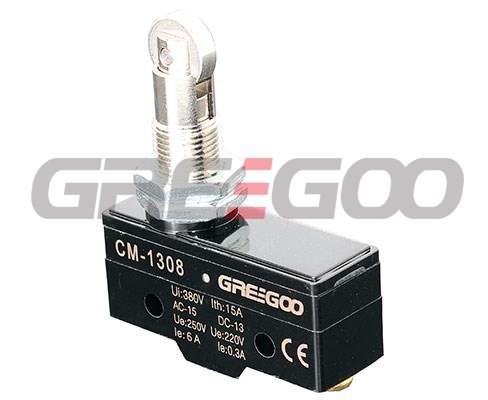

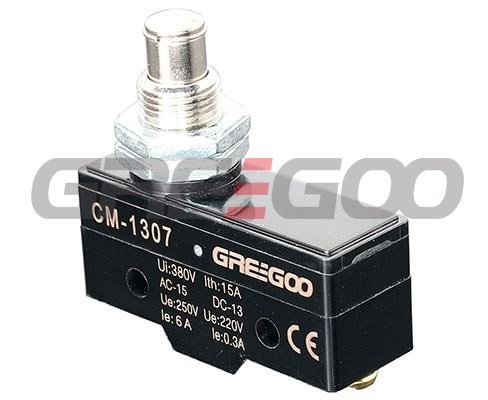

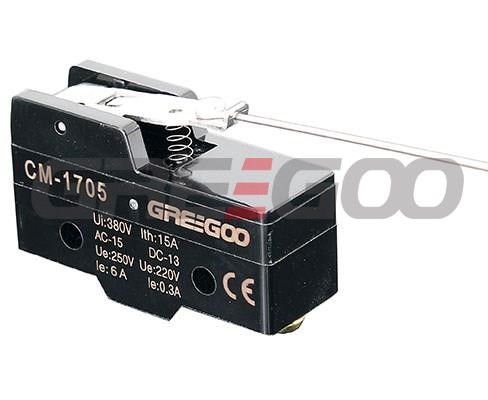

CM13 Micro Switches
| Models | CM1300 | CM1301 | CM1303 CM1303M | CM1305 | CM1306 | CM1307 | CM1308 CM1308X | CM1309 | CM1701 CM1706 | CM1702 | CM-1703 CM-1703M | CM-1704 CM-1704M | CM1705 | CM-1743 CM-1743M |
| OF (Max.) | 350g | 300g | 300g | 350g | 350g | 350g | 350g | 350g | 70g | 160g | 100g | 160g | 10g | 160g |
| RF (Min.) | 114g | 50g | 50g | 114g | 114g | 114g | 114g | 114g | 14g | 28g | 22g | 42g | 3g | 42g |
| PT (Max.) | 0.4mm | 4mm | 4mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm | 0.4mm | 10mm | 5mm | 7.1mm | 2.7mm | 20mm | 2.7mm |
| OT (Min.) | 0.13mm | 1.6mm | 1.6mm | 1.6mm | 1.6mm | 5.5mm | 3.58mm | 3.58mm | 5.6mm | 2mm | 4mm | 2.4mm | 5.6mm | 2.4mm |
| MD (Max.) | 0.05mm | 1.3mm | 1.3mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 1.27mm | 1mm | 1.02mm | 0.5mm | 3mm | 0.5mm |
| FP (Max.) | 20.6mm | 31.8mm | 28.2mm | 24.8mm | 36.5mm | 32.5mm | 43.6mm | |||||||
| OP(mm) | 15.9±0.4 | 17.4±0.8 | 28.6±0.8 | 28.2±0.5 | 21.5±0.5 | 21.8±0.8 | 33.4±1.2 | 33.4±1.2 | 19±0.8 | 19±0.4 | 30.2±0.8 | 30.2±0.4 | 19±0.8 | 43.1±0.8 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
