Transmissive type Photoelectric Yarn Detector

Model

FG-C18TN-F0/FG-C18TN-EO

FG-C18TH-FO/FG-C18TH-E0

Yarn Type

POY/FDY/Cotton

Yarn Speed

Up to 2000m/min

Voltage

10-30V DC

Current

30mA

Output

PNP/NPN

Detection

Running／Break

Connection

Plug with cable

Housing

Plastic

Operating Temperature

0℃to 55℃

Humidity

up to 95%

Optical

Transmissive infrared

Output

Pulsed／constant

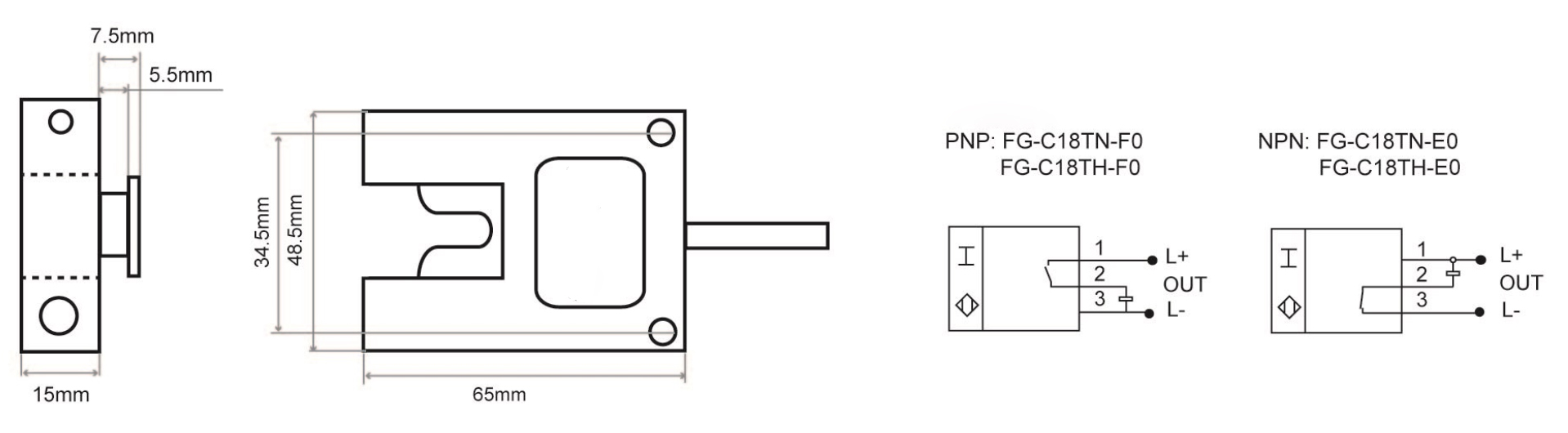

Mounting pitch

34.5mm

Tolerance

+/-0.2mm
