Product details

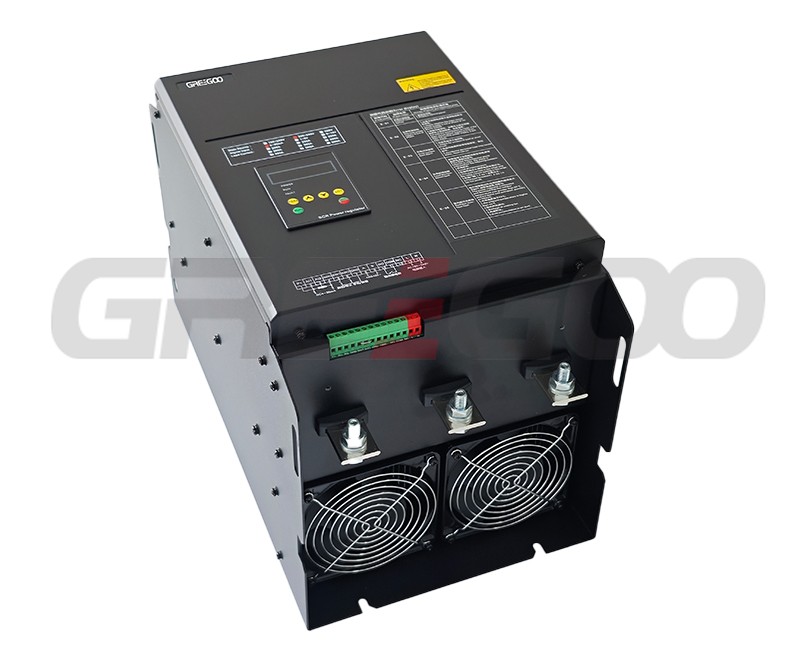

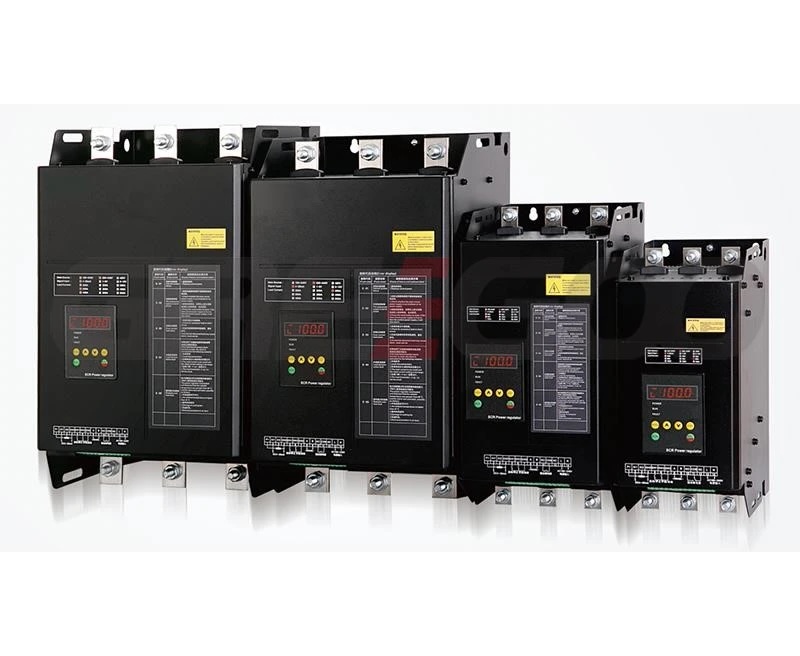

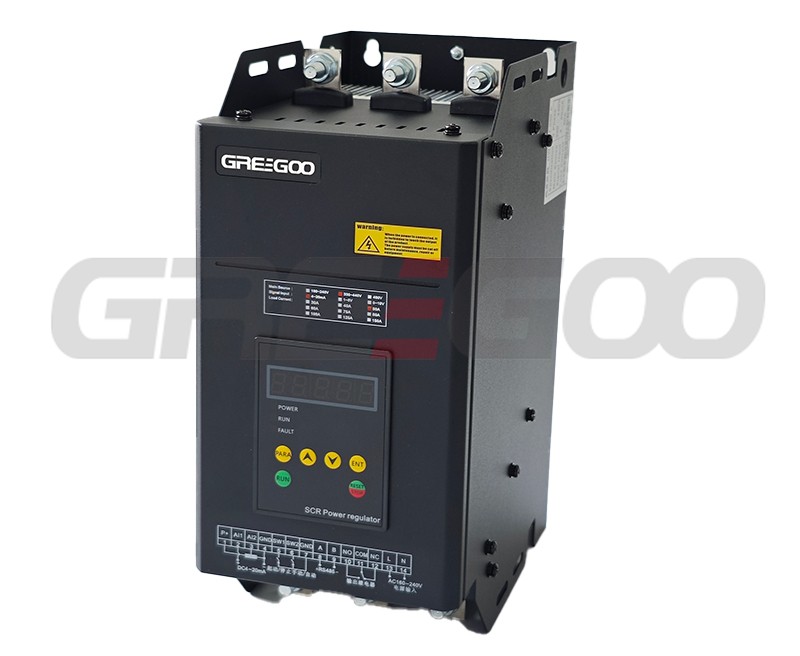

3 phase Thyristor Controller for Transformer (Advanced type HGW7 series)

HW7 Series Three-Phase Advanced Power Regulator

Product Features

◎ Adopts high-stability MCU embedded single-core control technology and PID closed-loop control for 100% linear output.

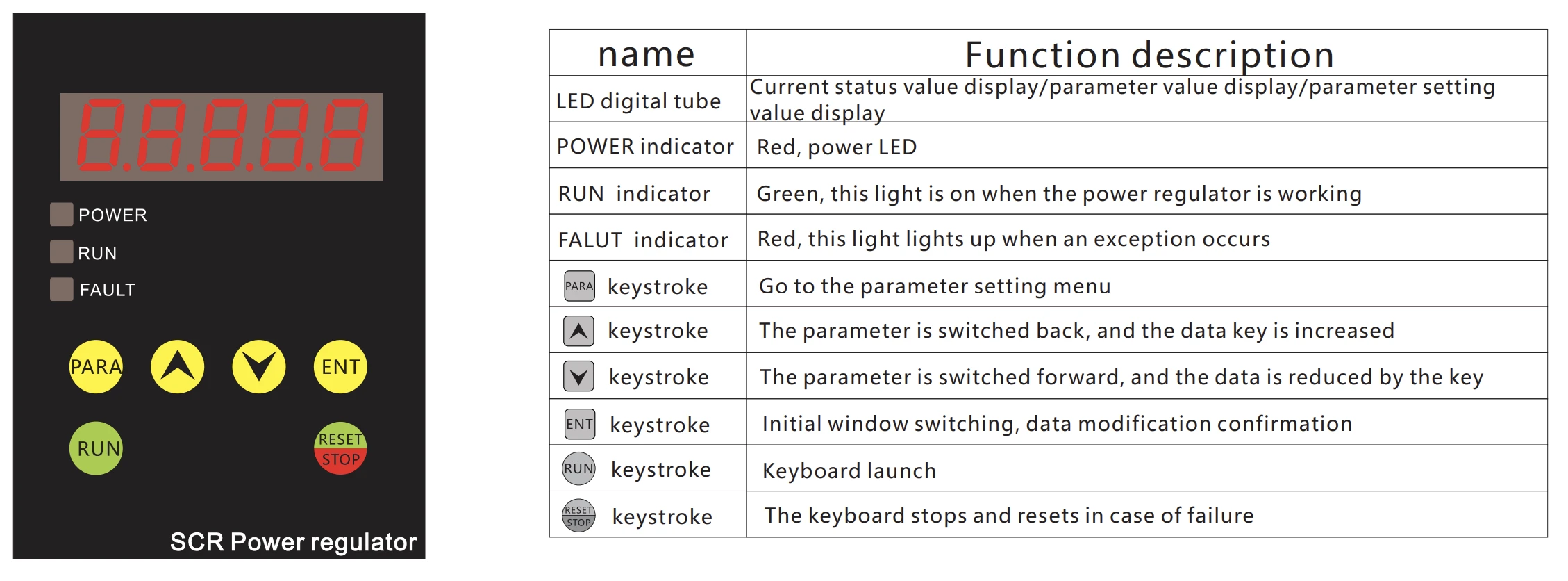

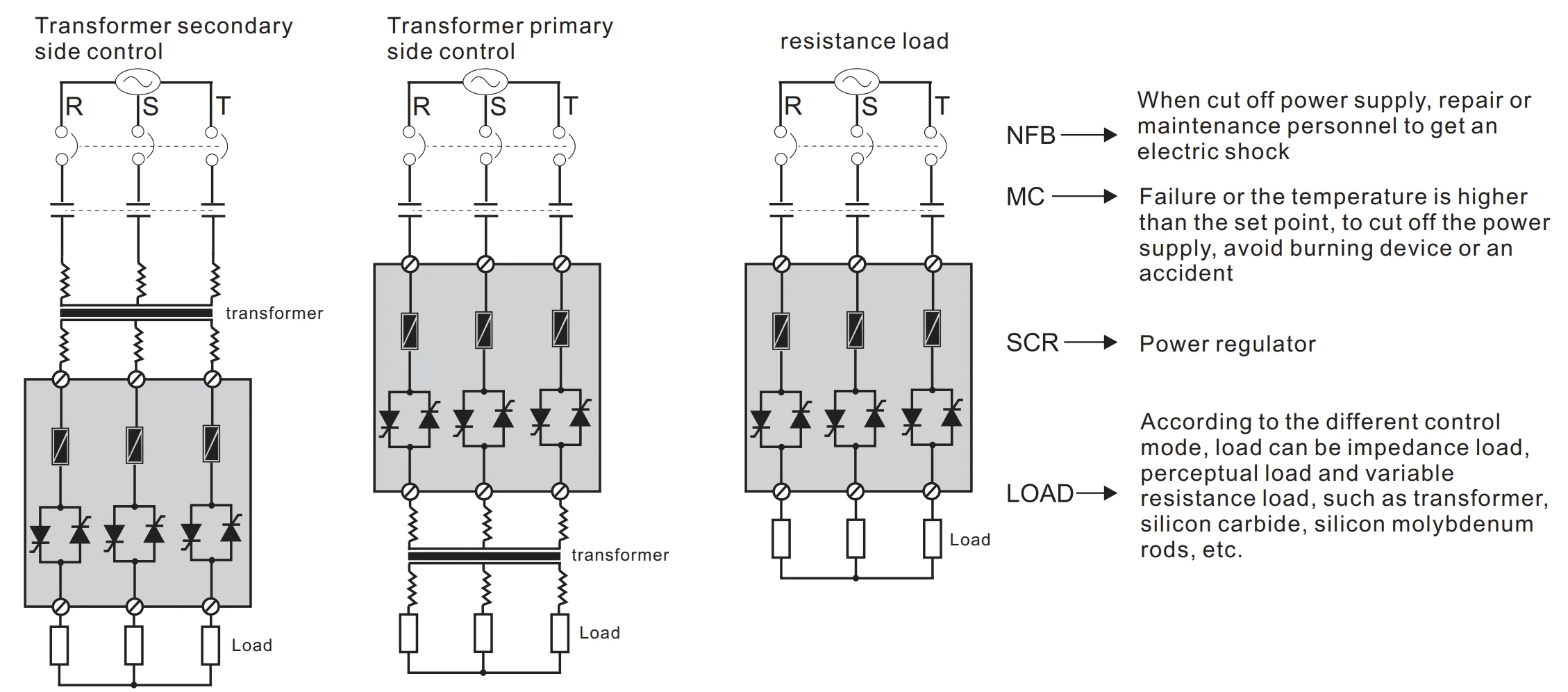

◎ Metal casing body, single-row digital display, multiple protection functions, built-in three-phase current imbalance alarm, built-in special processing unit for inductive loads, optimized transformer control, and standard MODBUS RTU communication.

Model explaination

Part Numbers	1-2-3-4-*5	e.g.	HGW7-4-4-040-P

	Description	Code	Value
*1	Design Code	HGW7
*2	Phase	4	Three phase
*3	Main Power Supply	2	110-220V
		4	380-440V
		8	480-600V
*4	Rated Current	030	30A
		040	40A
		050	50A
		060	60A
		...	...
		800	800A
*5	Control mode setting	Z	Zero positin adjustment
		P	Open-loop phase control
		C	Constant current control
		V	Constant voltage control
		CV	Constant power control

Part Numbers

Model	Rated Current	Load Power (KW)		Product size (mm)			Mount size (mm)		Weight (Kg)	Screw	Torque	Cooling mode	Housing
		220V	380V	L	W	H	L	W
HGW7-4-4-030-P	30A	9.5	16.5	290	134	224	275	104	6	M8	40kgfcm	Forced air cooling	Fig 1
HGW7-4-4-040-P	40A	12.5	20	290	134	224	275	104	6	M8	40kgfcm	Forced air cooling
HGW7-4-4-050-P	50A	15.5	27	290	134	224	275	104	6	M8	50kgfcm	Forced air cooling
HGW7-4-4-060-P	60A	19	33	290	134	224	275	104	6	M8	50kgfcm	Forced air cooling
HGW7-4-4-075-P	75A	23.5	41	290	134	224	275	104	6	M8	70kgfcm	Forced air cooling
HGW7-4-4-080-P	80A	25.5	44	290	134	224	275	104	6	M8	70kgfcm	Forced air cooling
HGW7-4-4-090-P	90A	28.5	49	335	164	213	316	104	10	M8	85kgfcm	Forced air cooling	Fig2
HGW7-4-4-100-P	100A	32	55	335	164	213	316	104	10	M8	85kgfcm	Forced air cooling
HGW7-4-4-125-P	125A	40	68.5	335	164	213	316	104	10	M8	95kgfcm	Forced air cooling
HGW7-4-4-150-P	150A	45	75	335	164	213	316	104	11	M8	170kgfcm	Forced air cooling
HGW7-4-4-175-P	175A	53	88	335	164	213	316	104	11	M8	200kgfcm	Forced air cooling
HGW7-4-4-200-P	200A	58	100	420	244	236	401	160	13	M10	220kgfcm	Forced air cooling	Fig 3
HGW7-4-4-250-P	250A	73	125	420	244	236	401	160	13	M10	220kgfcm	Forced air cooling	Fig 3
HGW7-4-4-300-P	300A	87	150	435	263	248	416	160	15	M10	250kgfcm	Forced air cooling	Fig 4

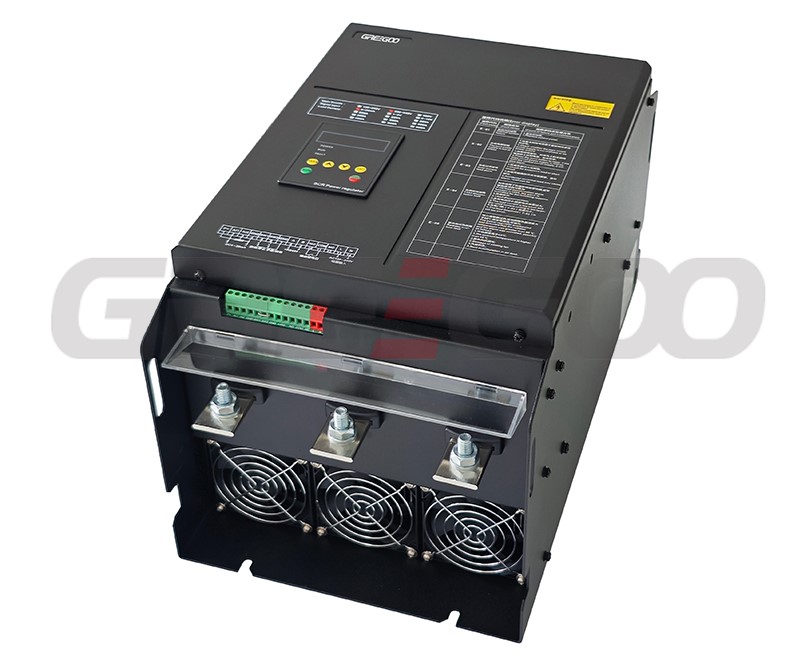

HGW7-4-4-350-P	350A	100	177	435	263	248	416	160	18	M10	250kgfcm	Forced air cooling	Fig 4
HGW7-4-4-400-P	400A	115	200	435	263	290	416	160	22	M10	250kgfcm	Forced air cooling	Fig 5
HGW7-4-4-450-P	450A	130	220	435	263	290	416	160	25	M10	250kgfcm	Forced air cooling
HGW7-4-4-500-P	500A	150	240	435	263	290	416	160	25	M10	250kgfcm	Forced air cooling
HGW7-4-4-600-P	600A	175	300	525	388	330	495*3	140*2	37	M12	300kgfcm	Forced air cooling	Fig 6
HGW7-4-4-800-P	800A	235	410	525	388	330	495*3	140*2	37	M12	300kgfcm	Forced air cooling	Fig 6
