Semikron Thyristor Diode Module

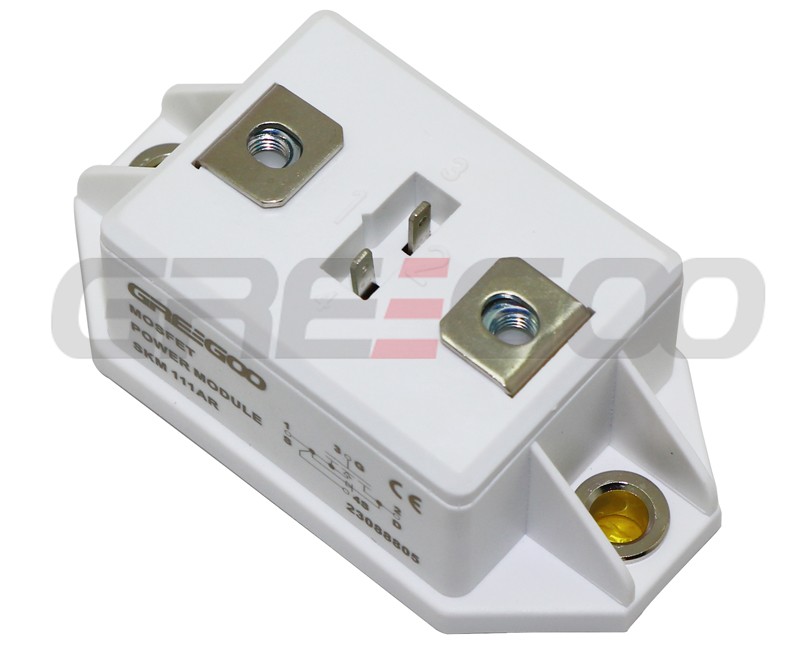

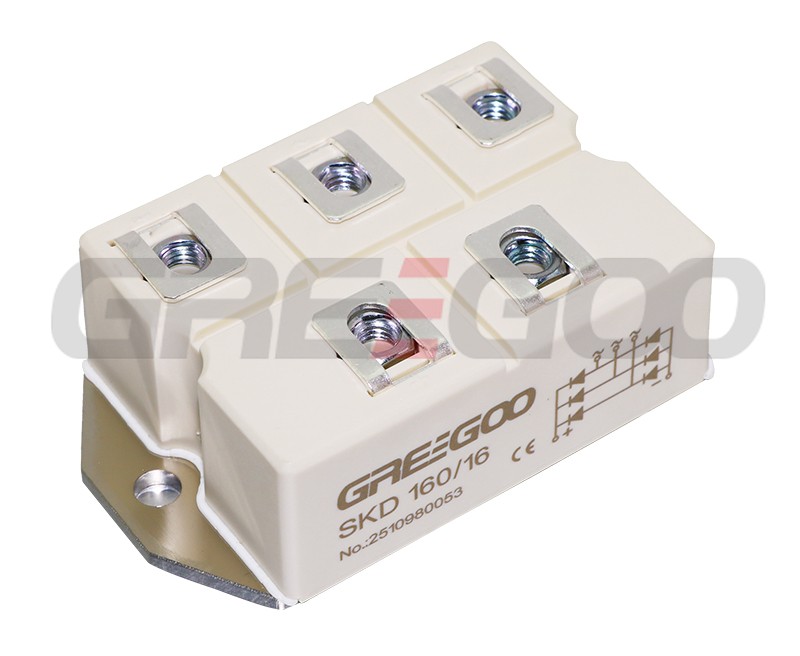

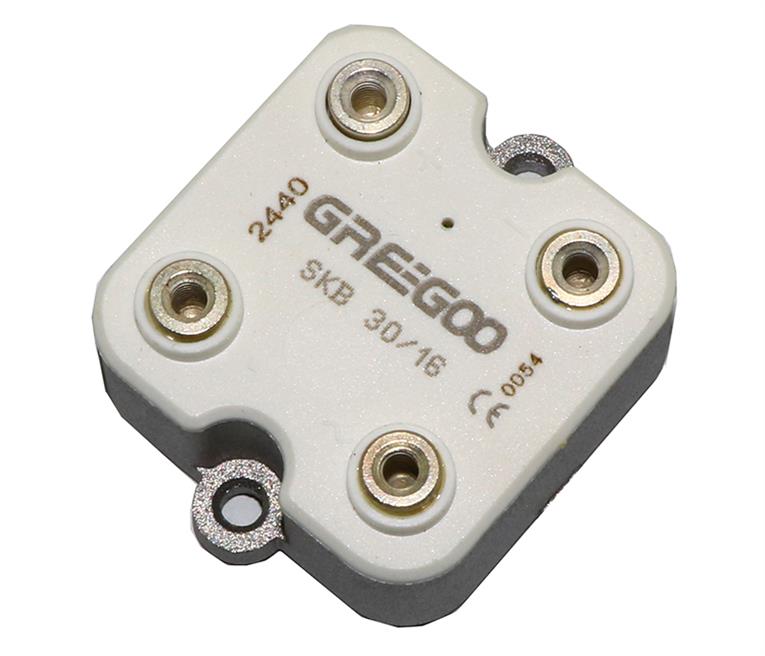

Exception of Semikron Thyristor Diode Module, we also have a good position to manufacturer Semikron Diode Bridge Module, SKD series three phase diode bridge module and SKB series single phase diode bridge module. SKN/SKR Stud Diode, SKM series IGBT Module, SKT series Stud Screw fit Thyristor etc.

https://youtu.be/lf_VMZ_QlbU?si=4rZbj4_dSwlDioaT

The thyristor modules are enclosed in a SEMIPACK housing, which conforms to industry standards and facilitates seamless integration into existing equipment.

The SEMIPACK family features three distinct internal construction types:

- Soldered construction (SEMIPACK 1): Electrical contacts are formed through solder layers.
- Bonded construction (SEMIPACK 0, 2, 3): Connections between the top electrodes of the chips and the direct bonded copper (DBC) substrates are achieved via bond wires.
- Pressure contact construction (SEMIPACK 3, 4, 5, 6): Contacts are established through applied pressure, enabling a solder-free assembly.

The primary power terminals are located on the top of the enclosure and are designated as 1, 2, and 3 (corresponding to common anode-cathode, cathode, and anode, respectively). The auxiliary control terminals are labeled as K1, G1, K2, and G2.

SKKT thyristor modules are employed in a wide array of power applications, including power and control units, power regulators, AC regulators, converters, controllers for blast furnaces or chemical processes, welding equipment, and rectifiers for AC converters.

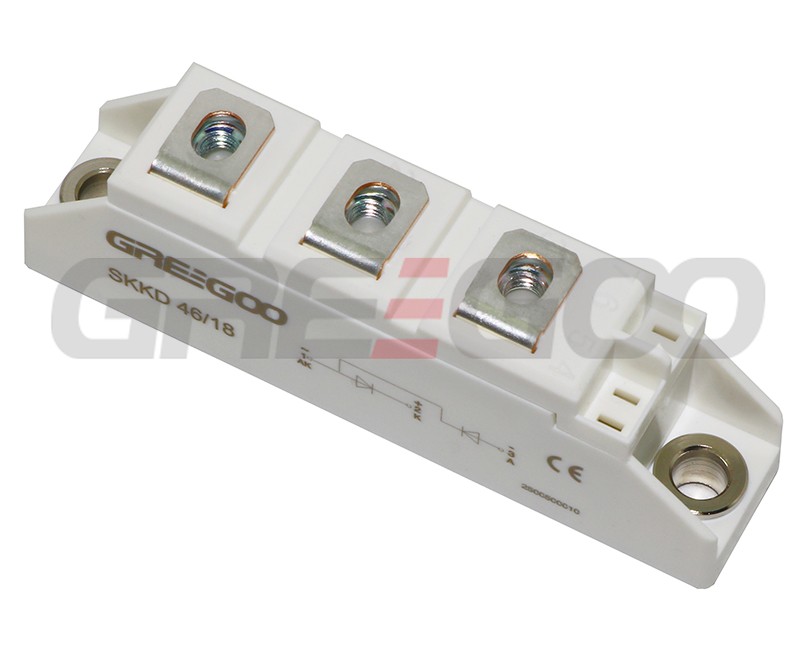

SKKD rectifier diode modules are used in various power equipment - power and control units, power regulators, converters, controllers, welding equipment, and as rectifiers for AC converters.

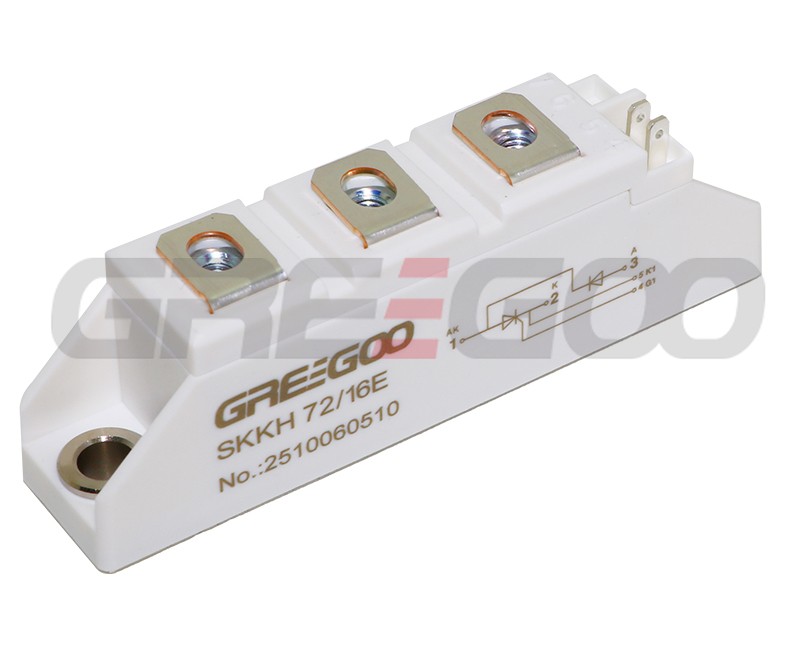

Thyristor-diode modules SKKH series are used in various power equipment - power and control units, power regulators, AC regulators, converters, controllers of blast furnaces or chemical processes, welding equipment, and as rectifiers for AC converters.
