Voltage & Current Transformer
The task of instrument transformers is to transform high currents and voltages proportionally and in-phase into small current or voltage values for measuring or protection purposes. Current transformers (CTs) may have multiple secondary windings with cores that are magnetically independent and can have varied characteristics. They can be configured with different types of cores for diverse accuracy needs, such as one for precise measurements and another for general protection purposes. Voltage transformers (VTs) typically have a single magnetic core and one secondary winding. Some VTs, especially those designed for single-phase systems, may also include an extra winding known as a residual voltage winding, which is used to detect earth faults.

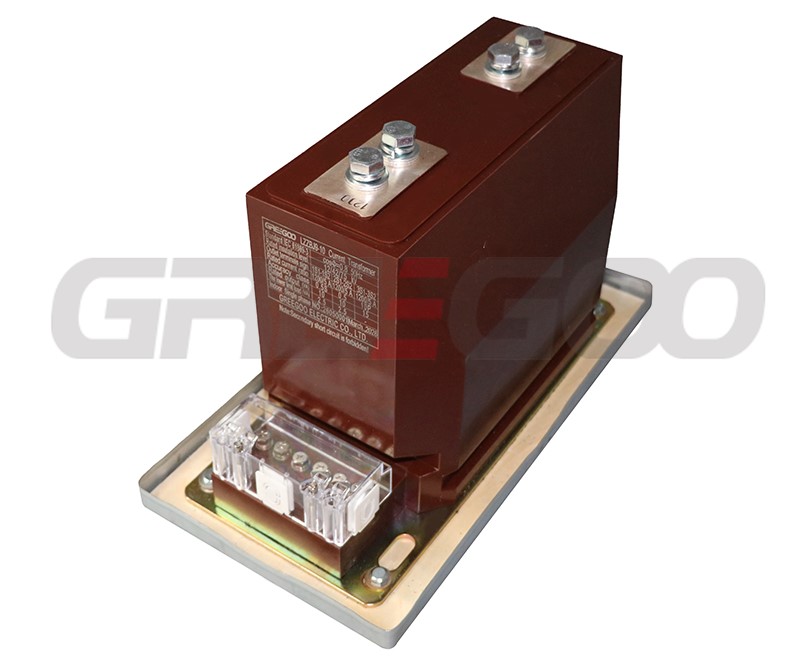

LZZBJ9-10C1 Indoor 10KV MV Current Transformer
10kV current transformer, most popular item
Mini type 10KV Current Transformer LZZBJ9-10M
290*150*200mm,indoor
LZZJB6-10Q Current Transformer
290*150*216mm
LZZBJ9-10C MV CT
310*155*220mm, indoor, 10KV
LZZBJ9-10C2-10 MV Current Transformer
320*175*225mm
LZZBJ9-12/150b/2 MV Current Transformer
335*155*220mm
LZZBJ9-12/150b/4 MV Current Transformer
460*150*250mm
LZZBJ9-12/175b/2
300*175*250mm
Multi-ratio MV Current Transformer LZZBJ9-12-175B-4
460*175*250mm
Indoor 10KV Current Transformer (LZZBJ9-12/185B/2)
355*185*250mm
LZZBJ9-12/185B/4
460*185*250mm
LZZB9-24-180B-2 20kV Current Transformer
351*180*306mm
20KV Current Transformer (LZZB9-24-180B-4)
471*180*306mm
35KV Current Transformer LZZBJ9-35-2
490*300*440mm 2 core
LZZBJ9-35 35KV Current Transformer
490*300*440mm 3 core
LZZW10Q
LZZBW-15 current transformer
280*280*341mm, outdoor type
LZZBW-10 Current Transformer
Outdoor type
Outdoor 35KV Current Transformer LZZW35
Outdoor type 35kv
LMZB-10 current transformer
370*215mm
10P10 10P15 Current Transformer LZZBJ9-10A
335*155*220mm
JDZ10-3/6/10
315*150*214mm
JDZ10-3/6/10A
330*160*232mm
JDZ10-11
315*150*214mm
JDZ10-10B
350*180*254mm
JDZ10-11A
330*160*232mm
JDZ10-11B
350*180*254mm

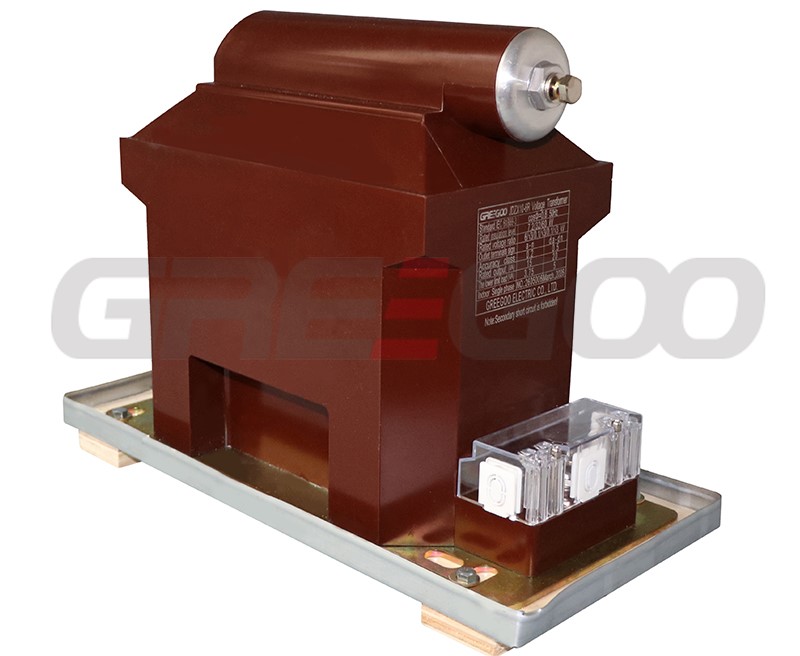

JDZX10-3-6-10
315*150*214mm
JDZX10-10A
330*160*236mm
JDZX10-11
315*150*214mm
JDZX10-11A
330*160*236mm
JDZ9-3/6/10
356*160*268mm
JDZX9-3/6/10
360*160*260mm
JDZ9-11
356*160*268mm
JDZX9-11
360*160*260mm
JDZ11-20
20kV indoor type
JDZX11-20
20kV indoor type
JDZ9-35
490*300*515mm
JDZX9-35
410*240*488mm
JDZ11-15
380*225
JDZXW-15 voltage transformer
330*240*508mm, outdoor type
Outdoor 35KV Voltage Transformer JDZXW35
Outdoor type 35kv
JDZW9-35Q(G)
Outdoor type
JDZX9-3D JDZX9-6D JDZX9-10D Voltage Transformer
360*160*272mm
LXK-Φ80~Φ240 Zero Sequence Current Transformer
φ 80,120,140,150,160,180,200,240
LXFK-Φ80~Φ240 Zero Sequence Current Transformer
φ 80,100,120,140,160,180,200,240
LMZK-10-2 Split Core Current Transformer
Φ110*Φ55*53
LMZK-10-3 Split Core Current Transformer
Φ110*Φ55*105
LMZK-10-120 Split Core Current Transformer
Φ185*Φ120*75
LMZC-10 Through core current transformer
LMZC-10-4 Through core current transformer
20A to 600A, 1/5A
LMZT-10
106*72*127mm
LDZC-10-3 Through core current transformer
LMZP-10
266*99*99mm

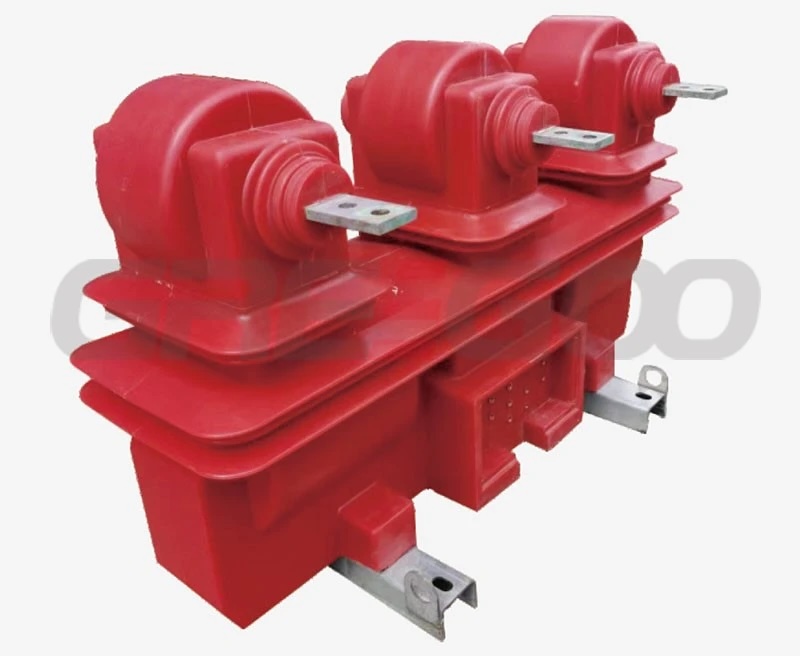

LSY3-10-107 Three-phase integrated transformer
LSY10-130-107 Three-phase integrated transformer
LSY127-10-107 Three-phase integrated transformer
LSY127-10-107
DP-23 Split core Current Transformer
DP-58 Split core Current Transformer
DP-510 split core current transformer
DP-510 CT
DP-88 Split core Current Transformer
DP-812 Split core Current Transformer
DP-812 split core CT

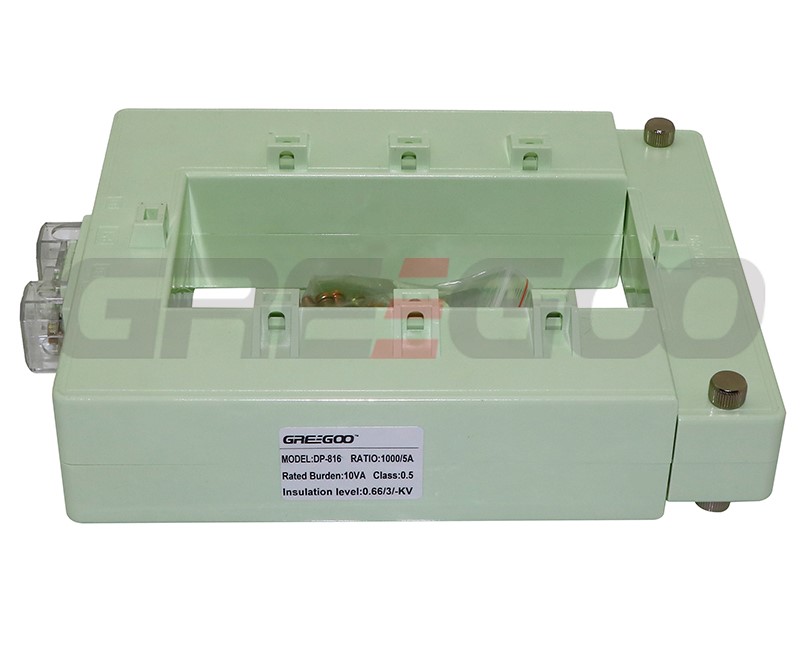

DP-816 Split core Current Transformer
DP-816 split core CT
СP ОВ 30В Current Transformer
СP ОВ 30 Current Transformer
СP ОВ 40 Current Transformer
СP ОВ 60 Current Transformer
СP ОВ 100 Current Transformer
RCT-25 Current Transformer
RCT-35 Current Transformer
RCT-60 Current Transformer
RCT-90 Current Transformer
RCT-110 Current Transformer
Current Transformer
| Operating voltage Um: | 12/24/40.5kV |
| Rated short-duration power-frequency withstand voltage Ud: | 42/65/95kV |
| Rated lightning impulse withstand voltage Up: | 75/125/185kV |
| Rated frequency: | 50/60Hz |
| Rated primary current IPN: | 5A to 4000A |
| Multi-ratio | 2x20 to 2x600 |
| Secondary current ISN: | 1/5A |
| Rated short time thermal current Ith: | 80kA or 100xIPN |
| Rated dynamic current Idyn: | 120kA or 2.5xIth |
| Core: | |
| Protection (Factor) | 5P10, 5P15, 5P20, 10P10, 10P15, 10P20 |
| Power Capacity | 10VA/15VA/20VA/30VA |
| Measuring (Accuracy) | 0.2/0.2S/0.5/0.5S/1/3 |
| Power Capacity | 10VA/15VA/20VA/30VA |
For example: Measuring only model 600A/5A, 0.2S, 10VA or multi-ratio 2x500A/5A, 0.2/0.5 10/15VA
Measuring with protection model: 600A/5A 0.2/10P10 10/15VA
Voltage Transformer
| Operating voltage Um: | 3.6/7.2/12/40.5kV |
| Rated short-duration power-frequency withstand voltage Ud: | 25/32/42/95kV |
| Rated lightning impulse withstand voltage Up: | 40/60/75/200kV |
| Rated frequency: | 50/60Hz |
| Rated thermal limiting output of the residual voltage winding: | 230VA/4A |
| Rated primary voltage maximum VPN: | 3kV, 6kV, 10kV, 40.5kV, 3/√3 V, 6/√3 V, 10/√3 V,40.5/√3 V |
| Secondary voltage USN: | 100V, 220V, 100/√3 V, 220/√3 V |
| Thermal limiting output Sth: | 200VA, 300VA, 400VA, 500VA, 600VA, 800VA, 1000VA |
| Auxiliary residual voltage winding | Without or 100/3V, 110V/3V, 120/3V |
| Rated output of the measuring winding | Class 0.2/0.5/1/3/5 |
| Rated output of the protection winding | 3P or 6P |
| Rated output of the power capacity | 10VA, 15VA,20VA, 30VA, 50VA, 60VA, 100VA,150VA, 200VA etc. |
For example: JDZ10-10A, 10/0.1KV, 100V, 0.2/30VA, Dual output voltage: JDZ10-10A, 10/0.1KV, 100/100V 0.2/0.5 10/15VA
JDZ10-10A 10/√3 / 100/√3 /100/3V 0.5/3P 15/20VA
