Control Switches

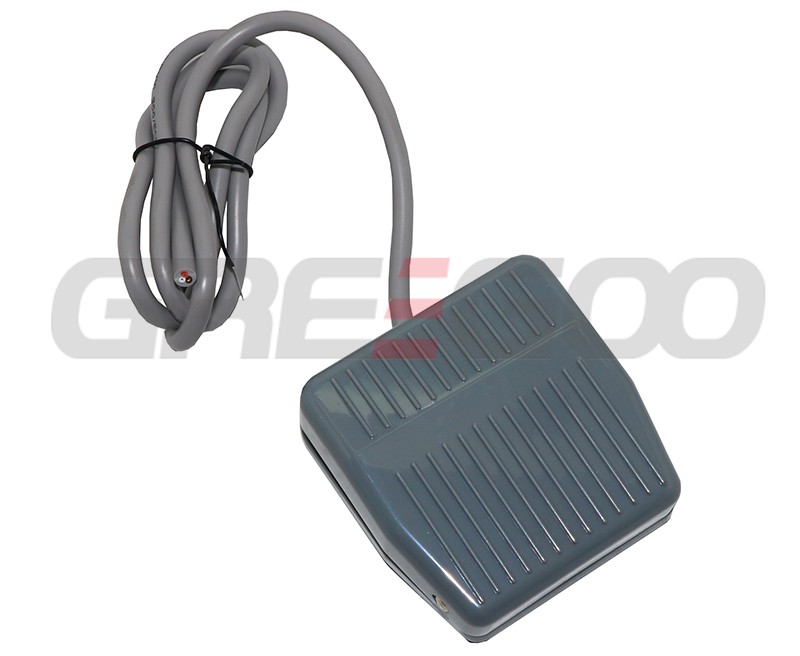

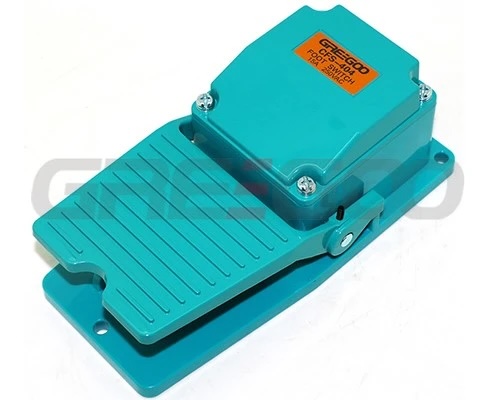

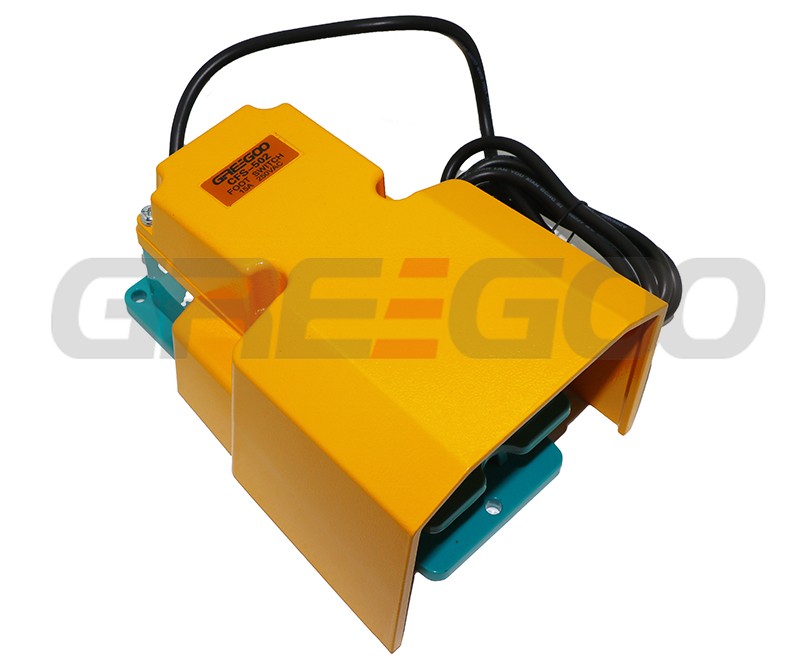

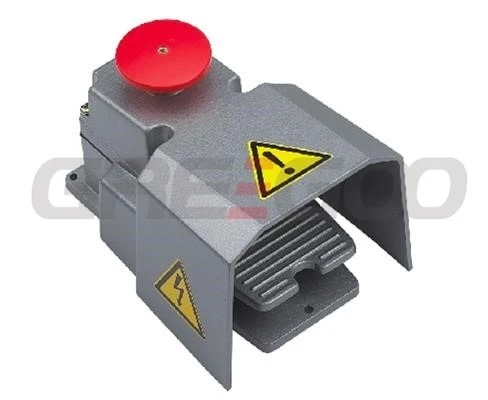

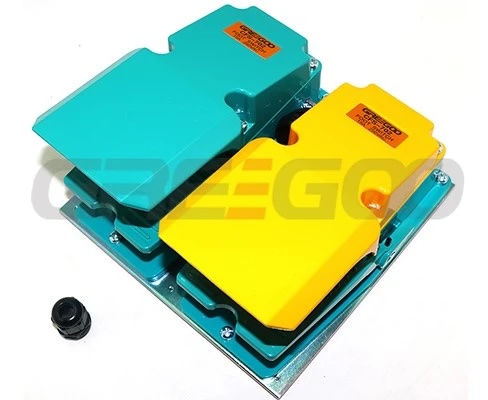

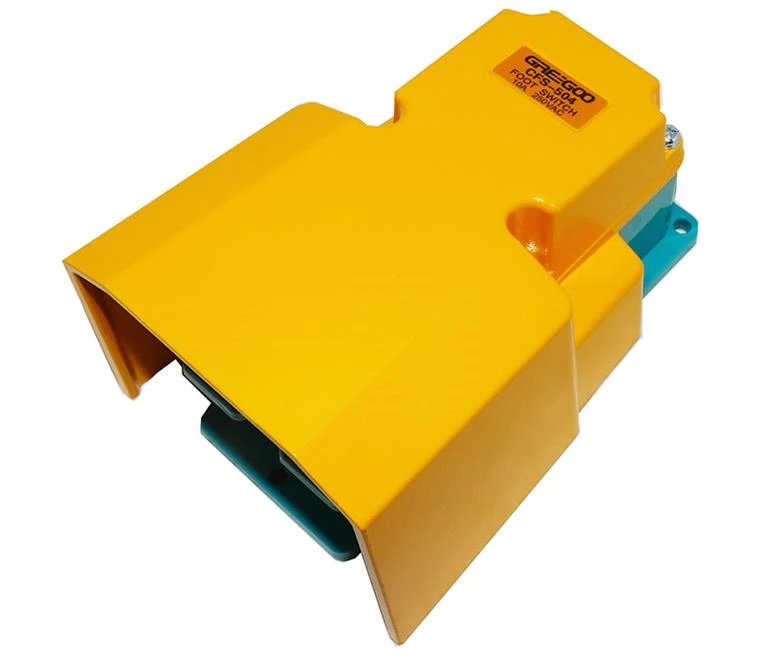

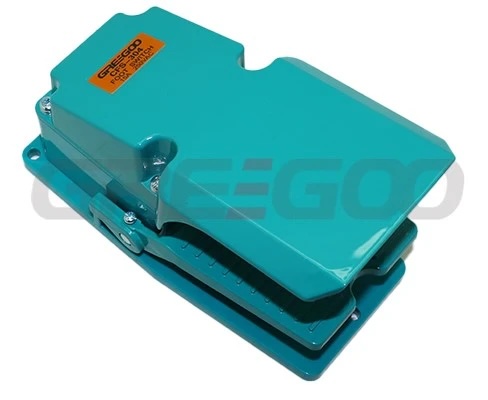

A foot switch is a device for circuit control operated by foot. Its primary classifications are based on three aspects. First, by function, they are divided into momentary and alternate-action types: momentary switches require continuous stepping to maintain conduction, suitable for safe operations like spot welding or punching; alternate-action switches turn on with one press and off with the next, ideal for equipment needing continuous operation. Second, structurally, they include standard, compact, guarded, and heavy-duty types​ to meet different installation space and mechanical strength requirements. Lastly, the protection rating is critical; for example, an IP65 rating indicates complete dustproof and water jet resistance, making it standard for harsh industrial environments. Additionally, their internal core components (such as micro switches) directly determine current load capacity and lifespan.

Core Definition

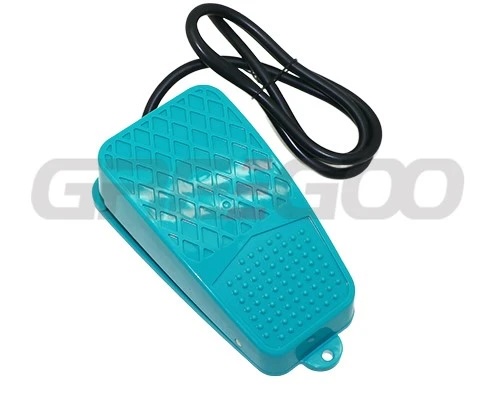

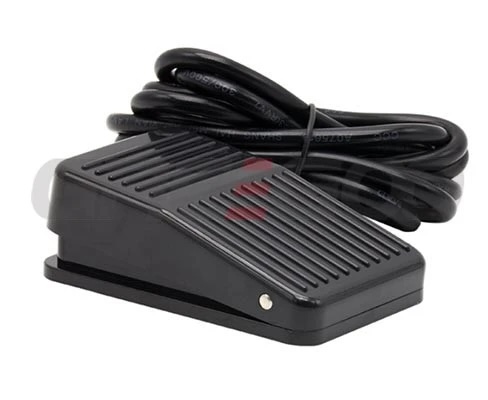

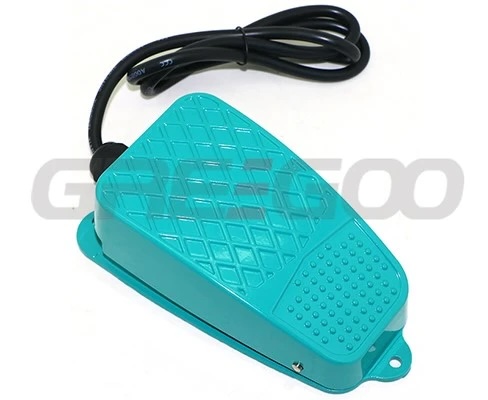

A Foot Switch is a type of manually operated switch​ that controls circuit operation through foot action​ (stepping). Its primary purpose is to allow an operator to control equipment start, stop, or function switching using their foot while their hands are occupied with work.

Simple Analogy

Think of it as a "remote control button" operated by foot.

How it works: The operator steps on the switch's pedal. The applied pressure triggers the internal switching mechanism (often a micro switch or similar snap-action mechanism), thereby opening or closing the circuit.

Result: This signal is sent to the machine, enabling control without using hands, such as starting a punch press, activating a spot welder, or controlling a spray gun.

Key Features & Applications

Function: Hands-free operation, Start/Stop control, Jogging control, Safety interlocking.

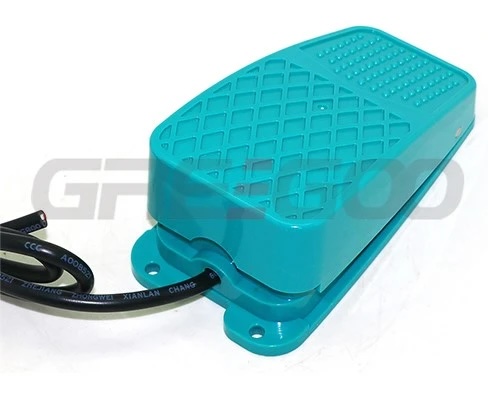

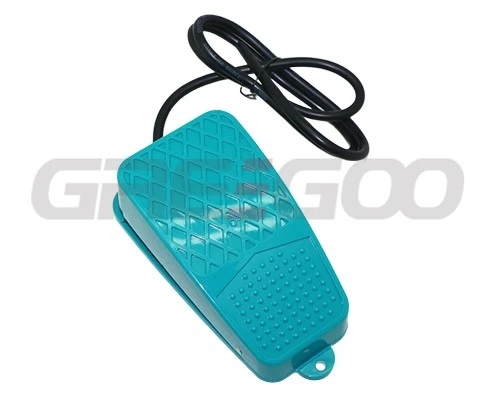

Structure: Typically features a sturdy pedal and base capable of withstanding repeated stepping and some impact. Many models offer water, oil, and dust resistance (e.g., Protection Rating IP65) to suit workshop environments.

Action Type

Momentary Action: The most common type. The circuit is activated (or deactivated) only while the pedal is pressed; it automatically resets when foot pressure is released. Used for jogging operations like spot welding or repeated start/stop cycles.

Alternate Action: Stepping once turns the circuit on and latches it; stepping again turns it off and resets it. Similar to a light switch, used for applications requiring maintained status.

Applications

Medical equipment (dental chairs, surgical tables), industrial machinery (punch presses, bending machines, spot welders), musical equipment (effects pedals, keyboard sustain pedals), and any scenario requiring concurrent use of hands and feet.
