Dual Diode Module 100A
Home Products Thyristor Diode ModuleDual Diode Modules 26A to 1200ADual Diode Module 100A
21mm width
Dual Diode Module 100A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC100-12-W21 | 100A | 1200V | 1300V | in Series | W21 |
| MDC100-16-W21 | 100A | 1600V | 1700V | in Series | W21 |
| MDC100-18-W21 | 100A | 1800V | 1900V | in Series | W21 |
| MDC100-20-W21 | 100A | 2000V | 2100V | in Series | W21 |
| MDC100-24-W21 | 100A | 2400V | 2500V | in Series | W21 |
| MDA100-12-W21 | 100A | 1200V | 1300V | Common Anode | W21 |
| MDA100-16-W21 | 100A | 1600V | 1700V | Common Anode | W21 |
| MDA100-18-W21 | 100A | 1800V | 1900V | Common Anode | W21 |
| MDA100-20-W21 | 100A | 2000V | 2100V | Common Anode | W21 |
| MDA100-24-W21 | 100A | 2400V | 2500V | Common Anode | W21 |
| MDK100-12-W21 | 100A | 1200V | 1300V | Common Cathode | W21 |
| MDK100-16-W21 | 100A | 1600V | 1700V | Common Cathode | W21 |
| MDK100-18-W21 | 100A | 1800V | 1900V | Common Cathode | W21 |
| MDK100-20-W21 | 100A | 2000V | 2100V | Common Cathode | W21 |
| MDK100-24-W21 | 100A | 2400V | 2500V | Common Cathode | W21 |
 |
 |

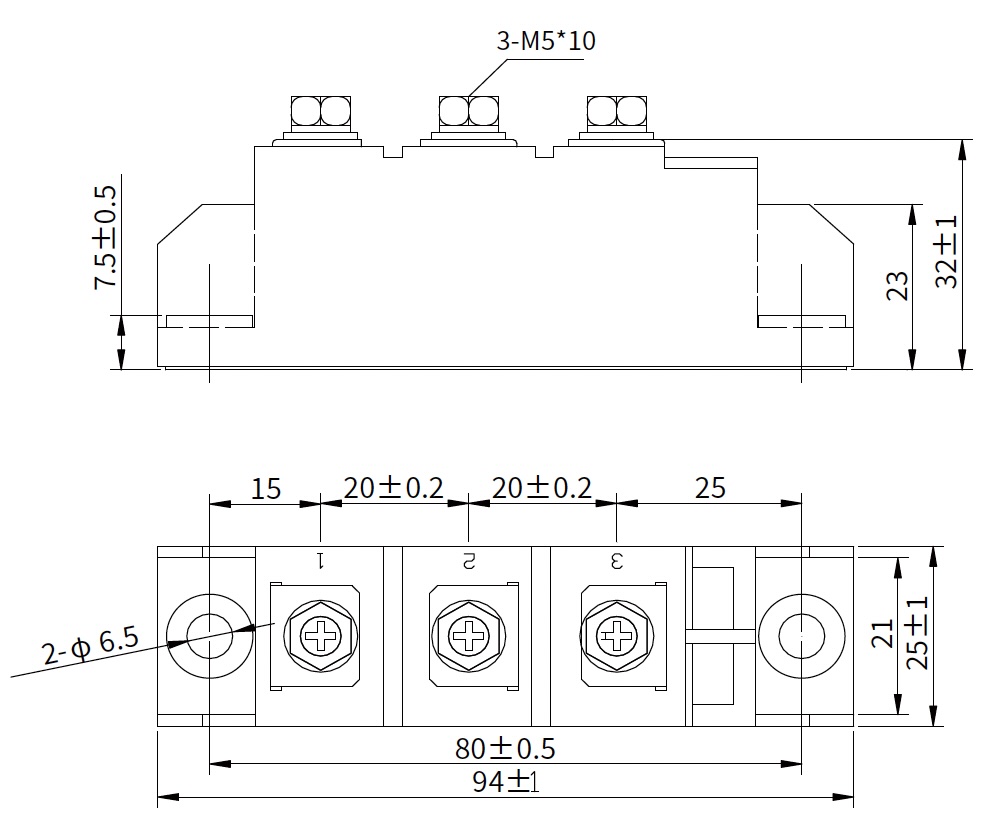

25mm width
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC100-12-W25 | 100A | 1200V | 1300V | in Series | W25 |
| MDC100-16-W25 | 100A | 1600V | 1700V | in Series | W25 |
| MDC100-18-W25 | 100A | 1800V | 1900V | in Series | W25 |
| MDC100-20-W25 | 100A | 2000V | 2100V | in Series | W25 |
| MDC100-24-W25 | 100A | 2400V | 2500V | in Series | W25 |
| MDA100-12-W25 | 100A | 1200V | 1300V | Common Anode | W25 |
| MDA100-16-W25 | 100A | 1600V | 1700V | Common Anode | W25 |
| MDA100-18-W25 | 100A | 1800V | 1900V | Common Anode | W25 |
| MDA100-20-W25 | 100A | 2000V | 2100V | Common Anode | W25 |
| MDA100-24-W25 | 100A | 2400V | 2500V | Common Anode | W25 |
| MDK100-12-W25 | 100A | 1200V | 1300V | Common Cathode | W25 |
| MDK100-16-W25 | 100A | 1600V | 1700V | Common Cathode | W25 |
| MDK100-18-W25 | 100A | 1800V | 1900V | Common Cathode | W25 |
| MDK100-20-W25 | 100A | 2000V | 2100V | Common Cathode | W25 |
| MDK100-24-W25 | 100A | 2400V | 2500V | Common Cathode | W25 |
 |
|
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
