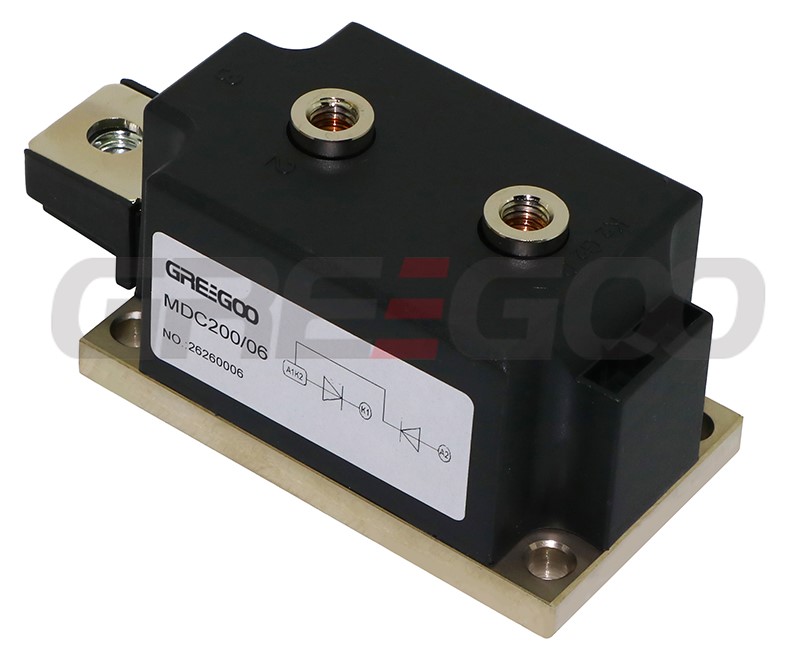

Dual Diode Module 200A
Home Products Thyristor Diode ModuleDual Diode Modules 26A to 1200ADual Diode Module 200A
34mm width
Dual Diode Module 200A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC200-12-W34 | 200A | 1200V | 1300V | in Series | W34 |
| MDC200-16-W34 | 200A | 1600V | 1700V | in Series | W34 |
| MDC200-18-W34 | 200A | 1800V | 1900V | in Series | W34 |
| MDC200-20-W34 | 200A | 2000V | 2100V | in Series | W34 |
| MDC200-24-W34 | 200A | 2400V | 2500V | in Series | W34 |
| MDA200-12-W34 | 200A | 1200V | 1300V | Common Anode | W34 |
| MDA200-16-W34 | 200A | 1600V | 1700V | Common Anode | W34 |
| MDA200-18-W34 | 200A | 1800V | 1900V | Common Anode | W34 |
| MDA200-20-W34 | 200A | 2000V | 2100V | Common Anode | W34 |
| MDA200-24-W34 | 200A | 2400V | 2500V | Common Anode | W34 |
| MDK200-12-W34 | 200A | 1200V | 1300V | Common Cathode | W34 |
| MDK200-16-W34 | 200A | 1600V | 1700V | Common Cathode | W34 |
| MDK200-18-W34 | 200A | 1800V | 1900V | Common Cathode | W34 |
| MDK200-20-W34 | 200A | 2000V | 2100V | Common Cathode | W34 |
| MDK200-24-W34 | 200A | 2400V | 2500V | Common Cathode | W34 |
 |
 |
34mm width (BG)
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC200BG-12-W34 | 200A | 1200V | 1300V | in Series | W34 |
| MDC200BG-16-W34 | 200A | 1600V | 1700V | in Series | W34 |
| MDC200BG-18-W34 | 200A | 1800V | 1900V | in Series | W34 |
| MDC200BG-20-W34 | 200A | 2000V | 2100V | in Series | W34 |
| MDC200BG-24-W34 | 200A | 2400V | 2500V | in Series | W34 |
| MDA200BG-12-W34 | 200A | 1200V | 1300V | Common Anode | W34 |
| MDA200BG-16-W34 | 200A | 1600V | 1700V | Common Anode | W34 |
| MDA200BG-18-W34 | 200A | 1800V | 1900V | Common Anode | W34 |
| MDA200BG-20-W34 | 200A | 2000V | 2100V | Common Anode | W34 |
| MDA200BG-24-W34 | 200A | 2400V | 2500V | Common Anode | W34 |
| MDK200BG-12-W34 | 200A | 1200V | 1300V | Common Cathode | W34 |
| MDK200BG-16-W34 | 200A | 1600V | 1700V | Common Cathode | W34 |
| MDK200BG-18-W34 | 200A | 1800V | 1900V | Common Cathode | W34 |
| MDK200BG-20-W34 | 200A | 2000V | 2100V | Common Cathode | W34 |
| MDK200BG-24-W34 | 200A | 2400V | 2500V | Common Cathode | W34 |
 |
|

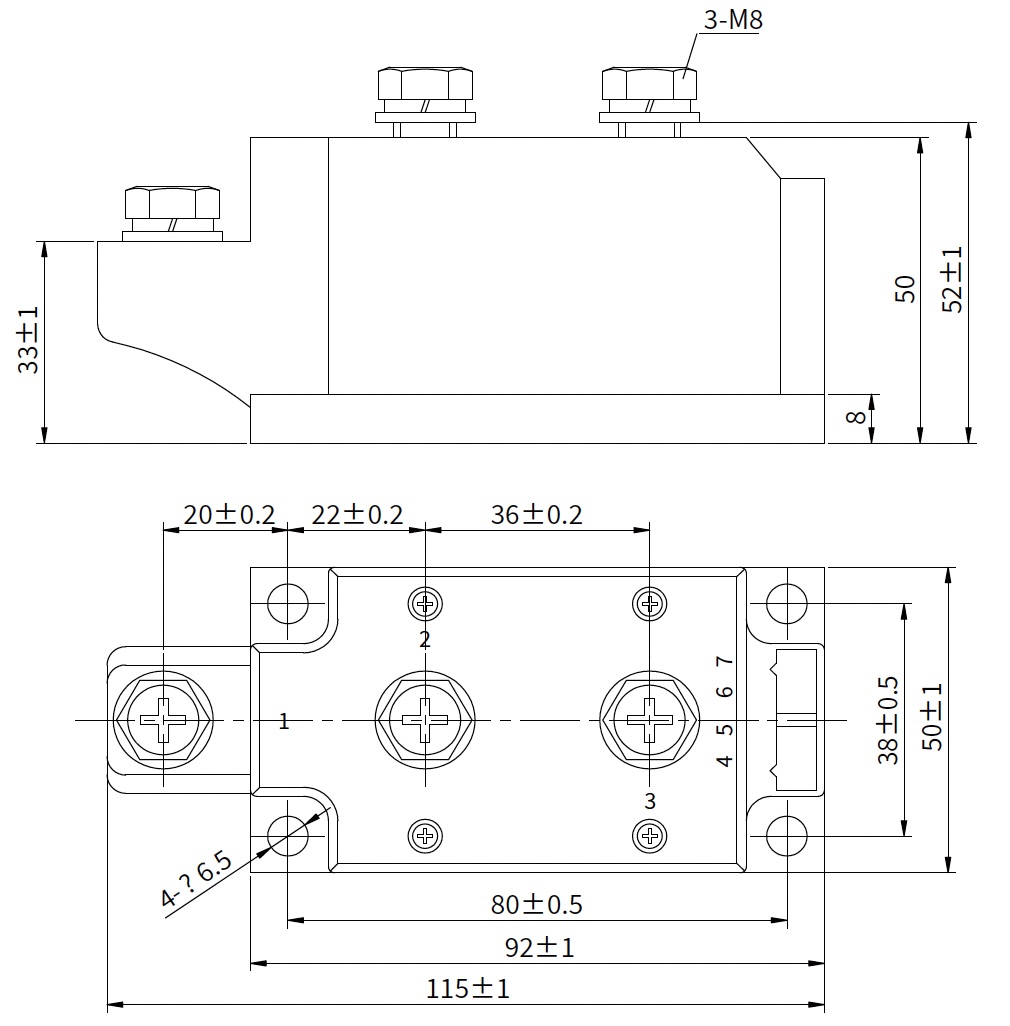

50mm width
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC200C-12-W50 | 200A | 1200V | 1300V | in Series | W50 |
| MDC200C-16-W50 | 200A | 1600V | 1700V | in Series | W50 |
| MDC200C-18-W50 | 200A | 1800V | 1900V | in Series | W50 |
| MDC200C-20-W50 | 200A | 2000V | 2100V | in Series | W50 |
| MDC200C-24-W50 | 200A | 2400V | 2500V | in Series | W50 |
| MDA200C-12-W50 | 200A | 1200V | 1300V | Common Anode | W50 |
| MDA200C-16-W50 | 200A | 1600V | 1700V | Common Anode | W50 |
| MDA200C-18-W50 | 200A | 1800V | 1900V | Common Anode | W50 |
| MDA200C-20-W50 | 200A | 2000V | 2100V | Common Anode | W50 |
| MDA200C-24-W50 | 200A | 2400V | 2500V | Common Anode | W50 |
| MDK200C-12-W50 | 200A | 1200V | 1300V | Common Cathode | W50 |
| MDK200C-16-W50 | 200A | 1600V | 1700V | Common Cathode | W50 |
| MDK200C-18-W50 | 200A | 1800V | 1900V | Common Cathode | W50 |
| MDK200C-20-W50 | 200A | 2000V | 2100V | Common Cathode | W50 |
| MDK200C-24-W50 | 200A | 2400V | 2500V | Common Cathode | W50 |
 |
|
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
