Dual Diode Module 250A
Home Products Thyristor Diode ModuleDual Diode Modules 26A to 1200ADual Diode Module 250A

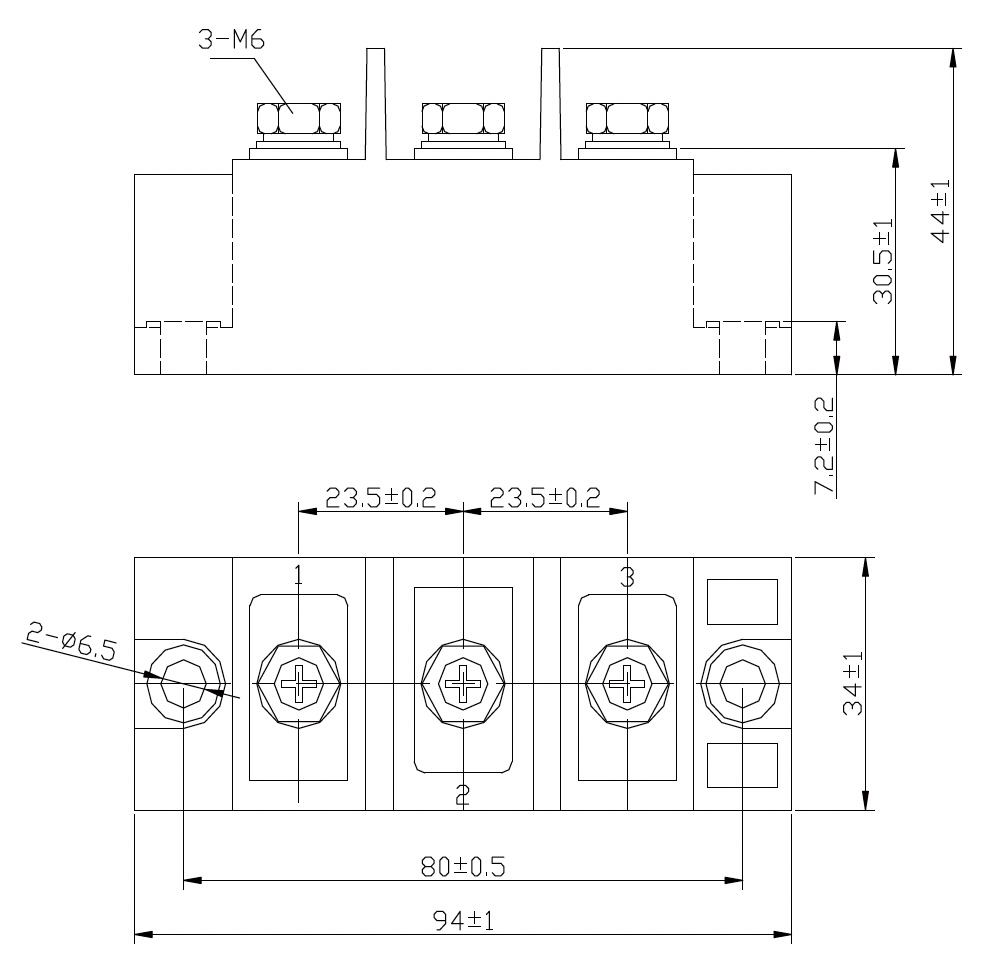

34mm width
Dual Diode Module 250A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC250-12-W34 | 250A | 1200V | 1300V | in Series | W34 |
| MDC250-16-W34 | 250A | 1600V | 1700V | in Series | W34 |
| MDC250-18-W34 | 250A | 1800V | 1900V | in Series | W34 |
| MDC250-20-W34 | 250A | 2000V | 2100V | in Series | W34 |
| MDC250-24-W34 | 250A | 2400V | 2500V | in Series | W34 |
| MDA250-12-W34 | 250A | 1200V | 1300V | Common Anode | W34 |
| MDA250-16-W34 | 250A | 1600V | 1700V | Common Anode | W34 |
| MDA250-18-W34 | 250A | 1800V | 1900V | Common Anode | W34 |
| MDA250-20-W34 | 250A | 2000V | 2100V | Common Anode | W34 |
| MDA250-24-W34 | 250A | 2400V | 2500V | Common Anode | W34 |
| MDK250-12-W34 | 250A | 1200V | 1300V | Common Cathode | W34 |
| MDK250-16-W34 | 250A | 1600V | 1700V | Common Cathode | W34 |
| MDK250-18-W34 | 250A | 1800V | 1900V | Common Cathode | W34 |
| MDK250-20-W34 | 250A | 2000V | 2100V | Common Cathode | W34 |
| MDK250-24-W34 | 250A | 2400V | 2500V | Common Cathode | W34 |
 |
 |
34mm width (BG)
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC250BG-12-W34 | 250A | 1200V | 1300V | in Series | W34 |
| MDC250BG-16-W34 | 250A | 1600V | 1700V | in Series | W34 |
| MDC250BG-18-W34 | 250A | 1800V | 1900V | in Series | W34 |
| MDC250BG-20-W34 | 250A | 2000V | 2100V | in Series | W34 |
| MDC250BG-24-W34 | 250A | 2400V | 2500V | in Series | W34 |
| MDA250BG-12-W34 | 250A | 1200V | 1300V | Common Anode | W34 |
| MDA250BG-16-W34 | 250A | 1600V | 1700V | Common Anode | W34 |
| MDA250BG-18-W34 | 250A | 1800V | 1900V | Common Anode | W34 |
| MDA250BG-20-W34 | 250A | 2000V | 2100V | Common Anode | W34 |
| MDA250BG-24-W34 | 250A | 2400V | 2500V | Common Anode | W34 |
| MDK250BG-12-W34 | 250A | 1200V | 1300V | Common Cathode | W34 |
| MDK250BG-16-W34 | 250A | 1600V | 1700V | Common Cathode | W34 |
| MDK250BG-18-W34 | 250A | 1800V | 1900V | Common Cathode | W34 |
| MDK250BG-20-W34 | 250A | 2000V | 2100V | Common Cathode | W34 |
| MDK250BG-24-W34 | 250A | 2400V | 2500V | Common Cathode | W34 |
 |
|
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
