Product Details

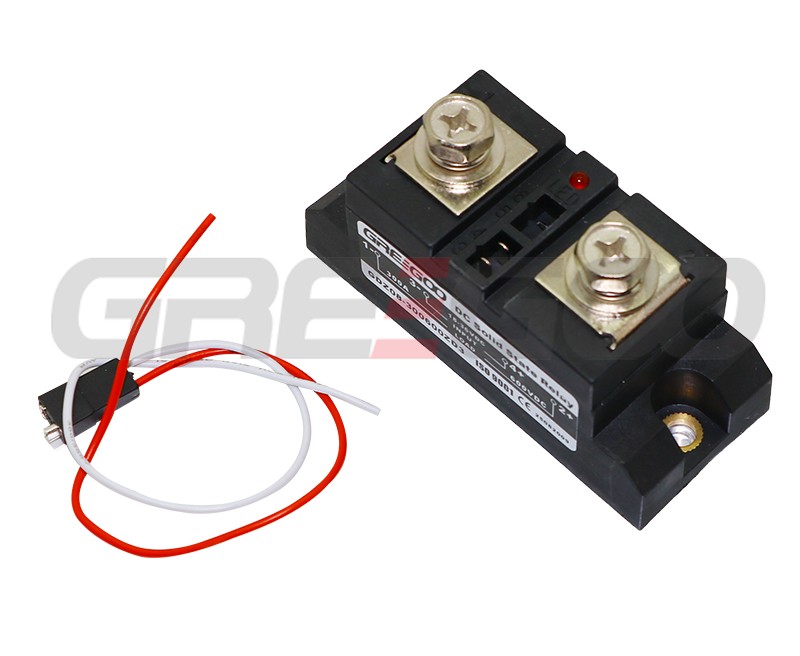

GDZ08 DC DC Solid State Relay 120A to 600A 100V to 1200VDC

Electromagnetic optocoupler isolation between input and output circuits.
Control signal compatible with PLC, TTL, PWM logic interfaces.
LED indicator for working status.
Built-in input under-voltage protection and output transient over-voltage absorption protection.
Solid-state, contactless output with fast switching speed, no sparks or arcing.
Encapsulated in epoxy resin, providing corrosion and shock resistance, ensuring stable and reliable switch operation.
The product is mainly used for controlling high-power DC power supply equipment such as PTC DC heaters, new energy conversion, battery charging and discharging, capacitors, etc.

GDZ08 (standard type)

Model Numbers	Max. Current	Max. Voltage	Control Voltage	Switching time	Dimensions
GDZ08-120100D1	120A	100VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-120100D2	120A	100VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-120100D4	120A	100VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-120200D1	120A	200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-120200D2	120A	200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-120200D4	120A	200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-120600D1	120A	600VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-120600D2	120A	600VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-120600D4	120A	600VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-1201200D1	120A	1200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-1201200D2	120A	1200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-1201200D4	120A	1200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-150100D1	150A	100VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-150100D2	150A	100VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-150100D4	150A	100VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-150200D1	150A	200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-150200D2	150A	200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-150200D4	150A	200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-150600D1	150A	600VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-150600D2	150A	600VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-150600D4	150A	600VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-1501200D1	150A	1200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-1501200D2	150A	1200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-1501200D4	150A	1200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-180100D1	180A	100VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-180100D2	180A	100VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-180100D4	180A	100VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-180200D1	180A	200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-180200D2	180A	200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-180200D4	180A	200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-180600D1	180A	600VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-180600D2	180A	600VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-180600D4	180A	600VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-1801200D1	180A	1200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-1801200D2	180A	1200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-1801200D4	180A	1200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-200100D1	200A	100VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-200100D2	200A	100VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-200100D4	200A	100VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-200200D1	200A	200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-200200D2	200A	200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-200200D4	200A	200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-200600D1	200A	600VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-200600D2	200A	600VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-200600D4	200A	600VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-2001200D1	200A	1200VDC	12-15VDC	≤0.16 mS	95X39X40mm
GDZ08-2001200D2	200A	1200VDC	18-36VDC	≤0.16 mS	95X39X40mm
GDZ08-2001200D4	200A	1200VDC	12-60VDC	≤0.16 mS	95X39X40mm
GDZ08-300100D1	300A	100VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-300100D2	300A	100VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-300100D4	300A	100VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-300200D1	300A	200VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-300200D2	300A	200VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-300200D4	300A	200VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-300600D1	300A	600VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-300600D2	300A	600VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-300600D4	300A	600VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-3001200D1	300A	1200VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-3001200D2	300A	1200VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-3001200D4	300A	1200VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-400100D1	400A	100VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-400100D2	400A	100VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-400100D4	400A	100VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-400200D1	400A	200VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-400200D2	400A	200VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-400200D4	400A	200VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-400600D1	400A	600VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-400600D2	400A	600VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-400600D4	400A	600VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-4001200D1	400A	1200VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-4001200D2	400A	1200VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-4001200D4	400A	1200VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-500100D1	500A	100VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-500100D2	500A	100VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-500100D4	500A	100VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-500600D1	500A	600VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-500600D2	500A	600VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-500600D4	500A	600VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-5001200D1	500A	1200VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-5001200D2	500A	1200VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-5001200D4	500A	1200VDC	12-60VDC	≤0.2 mS	95X39X40mm
GDZ08-600100D1	600A	100VDC	12-15VDC	≤0.2 mS	95X39X40mm
GDZ08-600100D2	600A	100VDC	18-36VDC	≤0.2 mS	95X39X40mm
GDZ08-600100D4	600A	100VDC	12-60VDC	≤0.2 mS	95X39X40mm

GDZ08C (Fast Switching type)

Model Numbers	Max.Current	Max.Voltage	Control Voltage	Control Power Supply	Switching time	Dimensions
GDZ08C-120100D3-12	120A	100VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-120100D3-24	120A	100VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-120200D3-12	120A	200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-120200D3-24	120A	200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-120600D3-12	120A	600VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-120600D3-24	120A	600VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-1201200D3-12	120A	1200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-1201200D3-24	120A	1200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-150100D3-12	150A	100VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-150100D3-24	150A	100VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-150200D3-12	150A	200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-150200D3-24	150A	200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-150600D3-12	150A	600VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-150600D3-24	150A	600VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-1501200D3-12	150A	1200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-1501200D3-24	150A	1200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-180100D3-12	180A	100VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-180100D3-24	180A	100VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-180200D3-12	180A	200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-180200D3-24	180A	200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-180600D3-12	180A	600VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-180600D3-24	180A	600VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-1801200D3-12	180A	1200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-1801200D3-24	180A	1200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-200100D3-12	200A	100VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-200100D3-24	200A	100VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-200200D3-12	200A	200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-200200D3-24	200A	200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-200600D3-12	200A	600VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-200600D3-24	200A	600VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-2001200D3-12	200A	1200VDC	4-32VDC	12V	≤0.08 mS	95X39X40mm
GDZ08C-2001200D3-24	200A	1200VDC	4-32VDC	24V	≤0.08 mS	95X39X40mm
GDZ08C-300100D3-12	300A	100VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-300100D3-24	300A	100VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-300200D3-12	300A	200VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-300200D3-24	300A	200VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-300600D3-12	300A	600VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-300600D3-24	300A	600VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-3001200D3-12	300A	1200VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-3001200D3-24	300A	1200VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-400100D3-12	400A	100VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-400100D3-24	400A	100VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-400200D3-12	400A	200VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-400200D3-24	400A	200VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-400600D3-12	400A	600VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-400600D3-24	400A	600VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-4001200D3-12	400A	1200VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-4001200D3-24	400A	1200VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-500100D3-12	500A	100VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-500100D3-24	500A	100VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-500600D3-12	500A	600VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-500600D3-24	500A	600VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-5001200D3-12	500A	1200VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-5001200D3-24	500A	1200VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm
GDZ08C-600100D3-12	600A	100VDC	4-32VDC	12V	≤0.1 mS	95X39X40mm
GDZ08C-600100D3-24	600A	100VDC	4-32VDC	24V	≤0.1 mS	95X39X40mm

FAQ

Q:Selection Guide for Solid State Relays

A margin should be left when selecting the voltage and current of the solid state relay.

For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

According to the relationship between load current and ambient temperature, when the ambient temperature is high or heat dissipation conditions are not good, the current capacity of the solid state relay should be increased accordingly.
In order to prevent the product from short-circuiting during use, it is necessary to connect a fast circuit breaker or a fast fuse in series with the product in the load circuit.

For inductive loads, a freewheeling diode must be connected to both ends of the load, and a varistor must be connected to the output end (the varistor (MOV) is selected according to 1~1.5 times of the power supply voltage) to prevent the high voltage generated during switching from damaging the solid-state switch.

When the product is installed, it is required that the contact surface between the heatsink and the product must be flat and clean, and a layer of thermally conductive silicone grease is applied to its surface, and then finally the screws set with flat washers and Spring washersare tightened symmetrically to fix.
