Three phase rectifier IPM module
Home Products SCR Power ControllerThyristor Controller ModuleThree phase rectifier IPM module
Three phase rectifier IPM module
| Model No. | Description | Max.Current | Load Voltage Range | Control Mode | Housing | Port | Indicator |

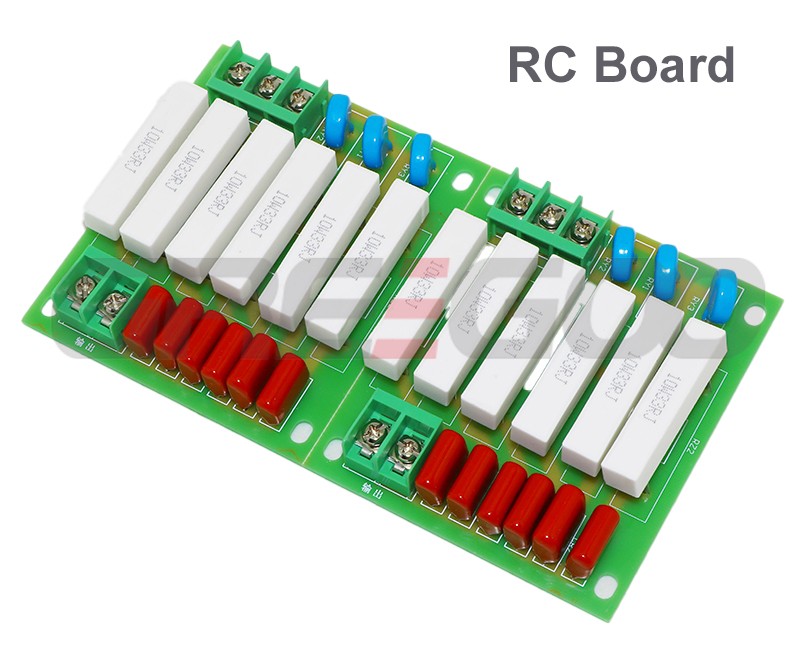

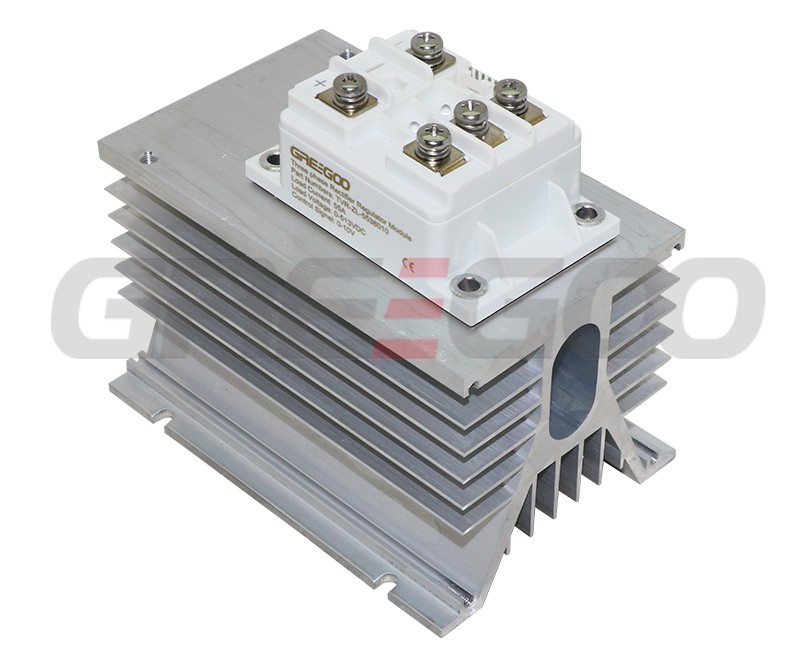

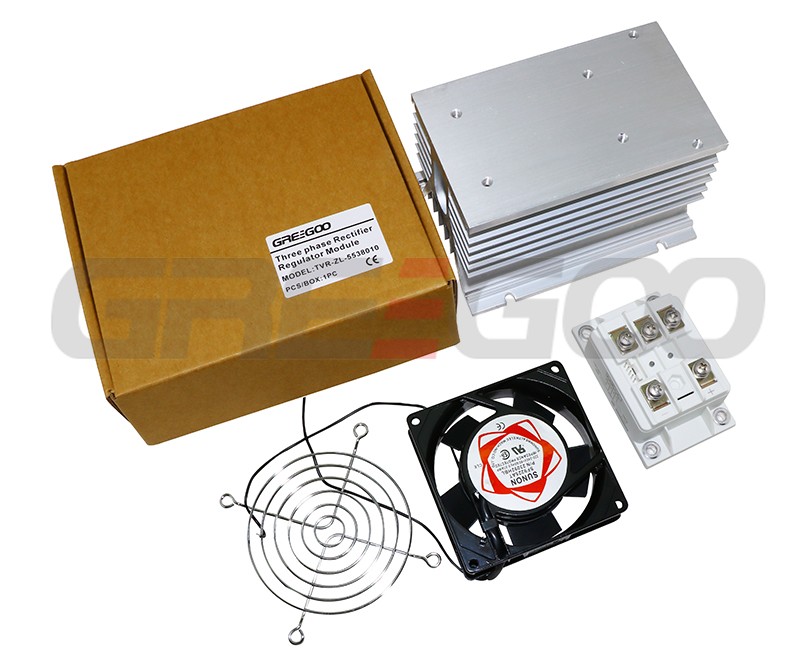

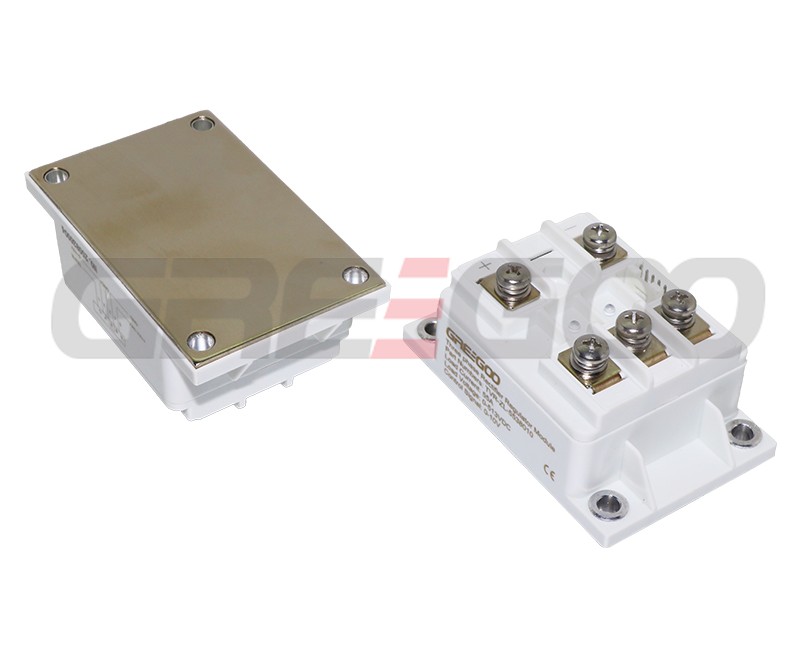

| TVR-ZL-3038010 | Three phase Rectifier Module | 30A | 0-513VDC | 0-10V | G59 | 5 pins | LED |
| TVR-ZL-3038020 | Three phase Rectifier Module | 30A | 0-513VDC | 4-20mA | G59 | 5 pins | LED |
| TVR-ZL-5538010 | Three phase Rectifier Module | 55A | 0-513VDC | 0-10V | G59 | 5 pins | LED |
| TVR-ZL-5538020 | Three phase Rectifier Module | 55A | 0-513VDC | 4-20mA | G59 | 5 pins | LED |
| TVR-ZL-10038010 | Three phase Rectifier Module | 100A | 0-513VDC | 0-10V | G59 | 5 pins | LED |
| TVR-ZL-10038020 | Three phase Rectifier Module | 100A | 0-513VDC | 4-20mA | G59 | 5 pins | LED |
|
Part numbers
|

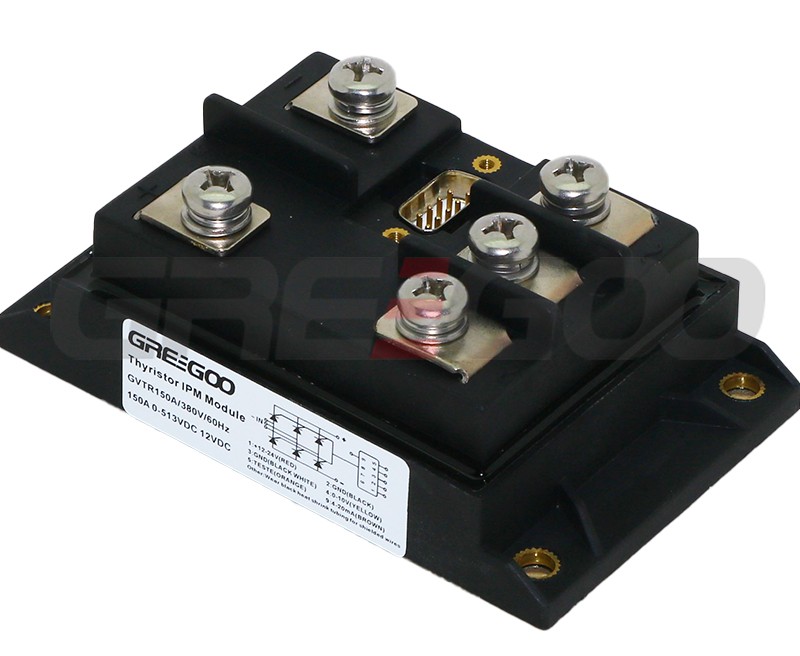

TVR-ZL-30A TVR-ZL-55A TVR-ZL-100A |
TVR-ZL-150A TVR-ZL-200A |
TVR-ZL-250A TVR-ZL-320A |
TVR-ZL-400A TVR-ZL-500A |
TVR-ZL-750A TVR-ZL-1000A |
|
Case code |
G-59 |
G-73 |
G-105 |
G-135 |
G-230 |
|
Control PSU power |
3.5W |
3.5W |
3.5W |
4W |
8W |
|
Control port |
5 pin |
9 pin |
15 pin |
||
|
Power status indicator |
LED |
No |
|||
|
Control method |
0-10Vdc/4-20mA |
0-10Vdc/4-20mA |
|||
|
Load voltage range |
380Vac:0-513Vdc |
||||
|
Rated current |
30A、55A、100A、150A、200A、250A、320A、400A、500A、750A、1000A |
||||
|
Control power supply |
12Voc-24Vpc |
||||
|
Voltage unbalance |
<2% |
||||
|
Voltage instability |
<0.5% |
||||
|
SCR Chip
Forward and Reverse
Peak Voltage Withstand
|
≥1800V |
||||
|
di/dt |
500A/μS |
||||
|
dv/dt |
3000V/μS |
||||
|
Working Environment Temperature |
-25℃~45℃ |
||||
Need more information?
Contact us to request pricing, availability and customization options.
SCR Controller for Electric Heating (single phase)
20A to 1200A, 0-220VAC or 0-380Vac.
SCR Controller for Electric Heater (3 phase)
20A to 1000A, 0-380VAC
Linear SCR Power Controller three Phase
25A to 200A, 4-20mA, 40-480VAC three phase linear module
GVTR/GVDR series 3 and single phase rectifier IPM modules
AC input, DC output, 0-530VDC regulator, analog control, 4-20mA, 0-5A or 0-10V.
