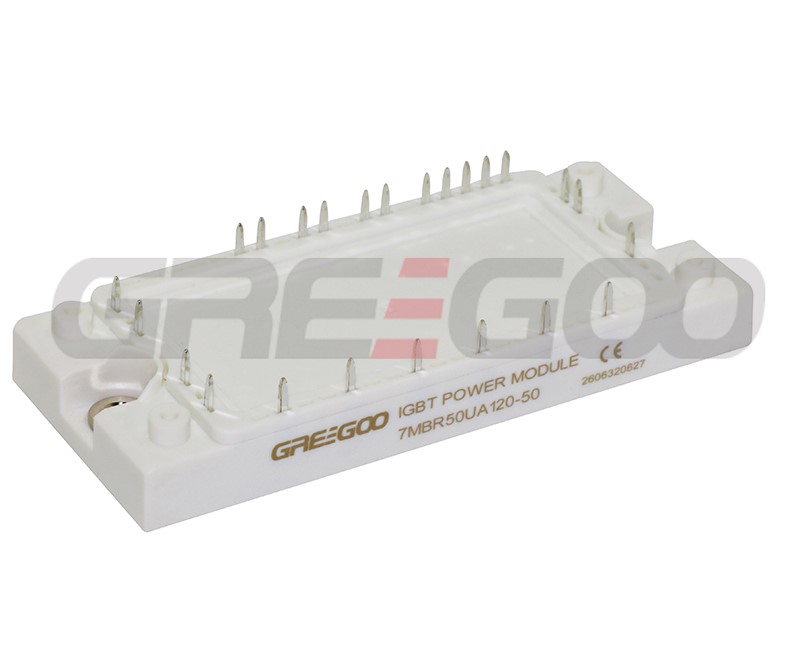

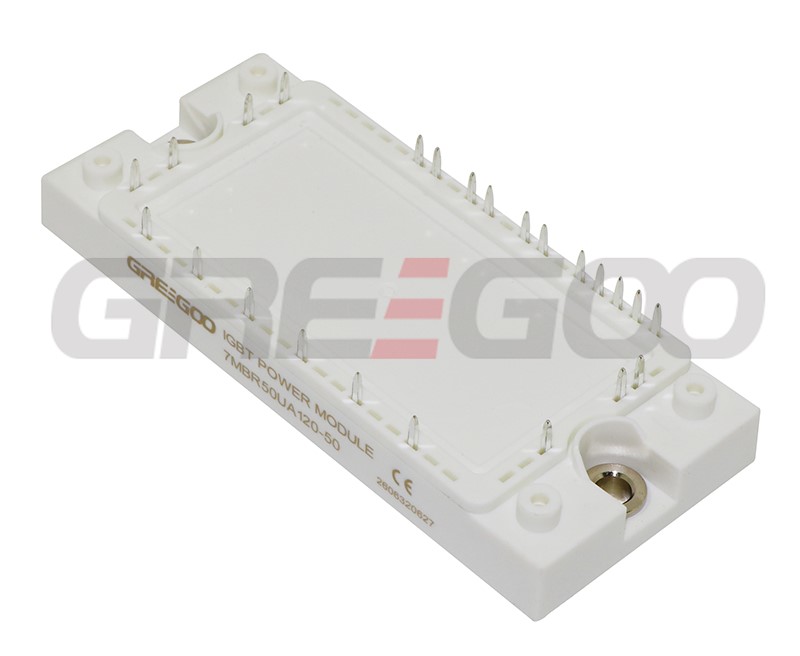

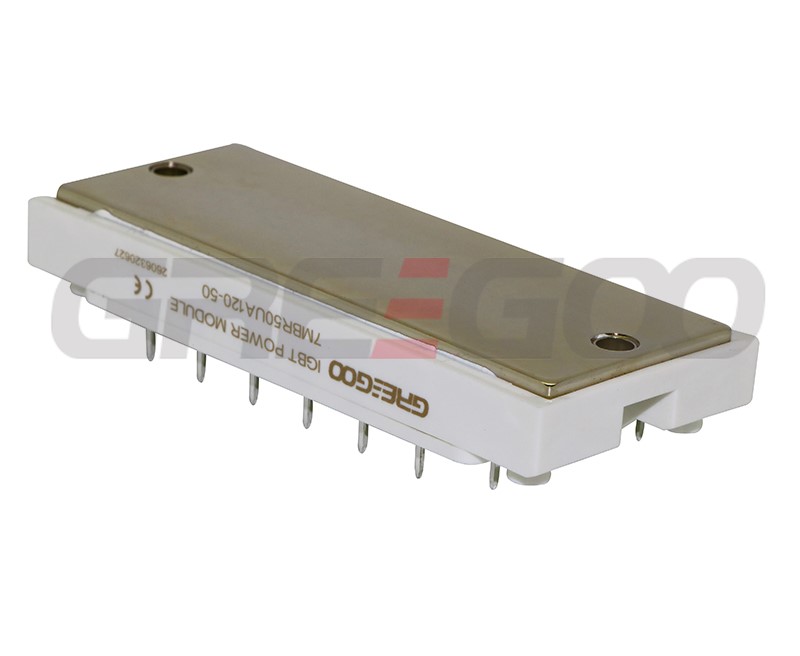

7MBR50UA120-50 IGBT module

The 7MBR50UA120-50 is a high-performance Power Integrated Module (PIM) / IGBT module. Belonging to the U-Series, this "seven-pack" module consolidates an entire power stage into a single, compact M711 package. It is widely engineered into industrial motor drives (Variable Frequency Drives/VFDs), AC/DC servo drive amplifiers, and Uninterruptible Power Supplies (UPS).

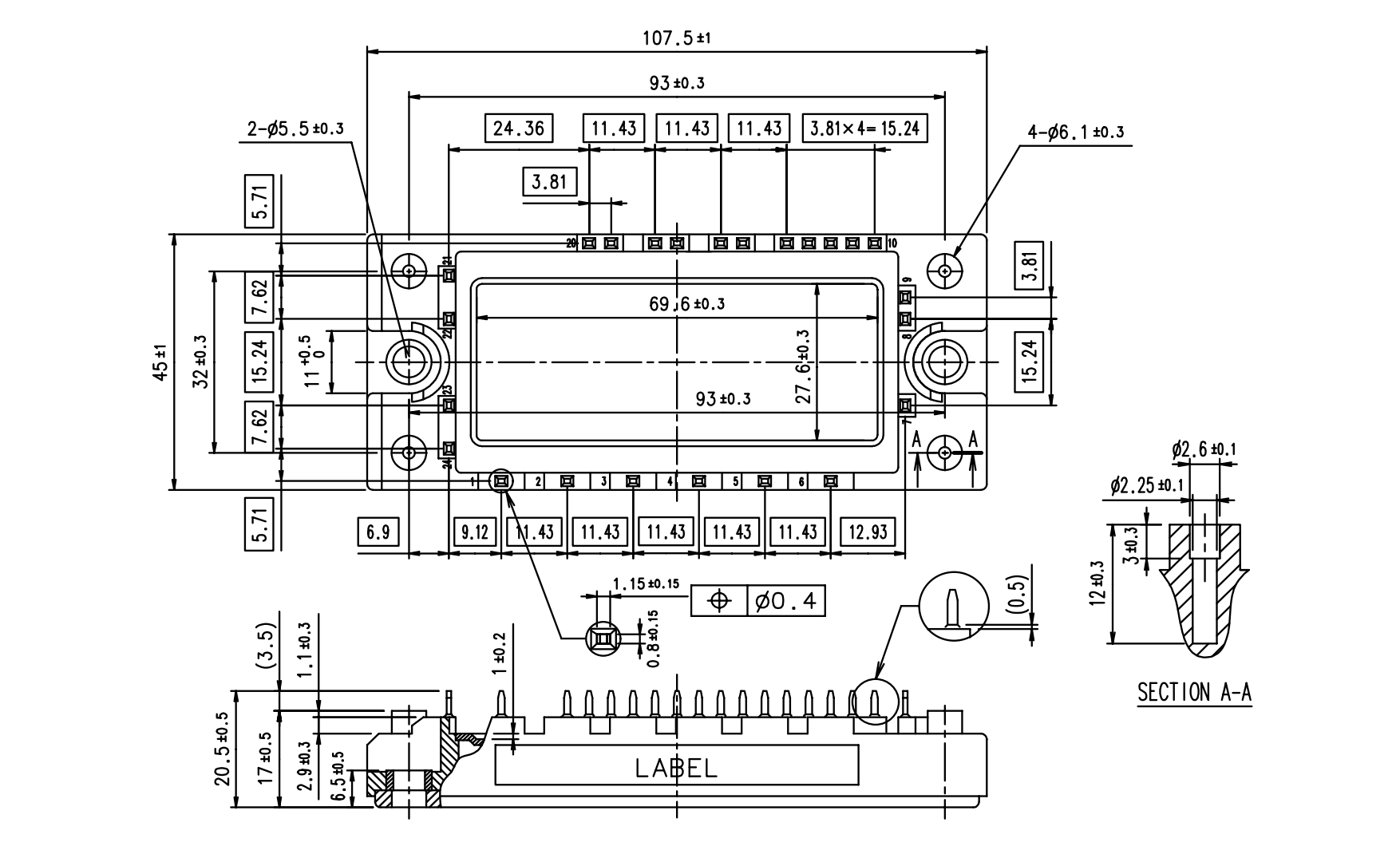

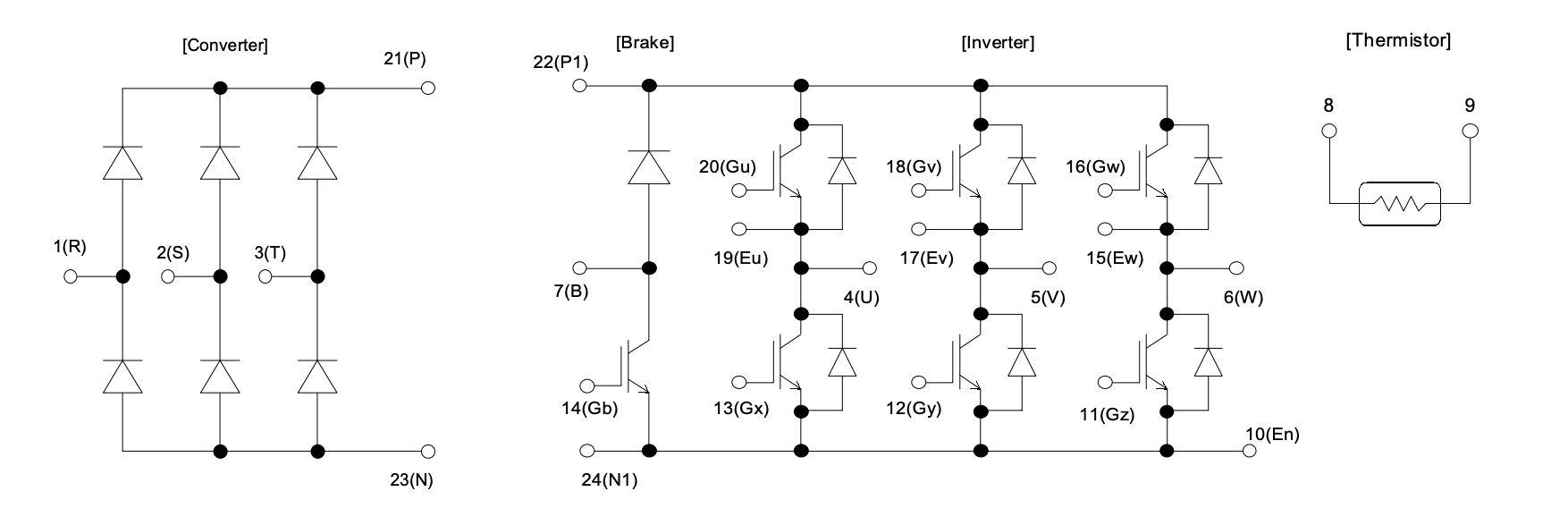

• Configuration: PIM (Three-phase input Converter bridge Brake chopper Three phase output Inverter)
• Collector-Emitter Voltage (V_CES): 1200 V
• Continuous Collector Current (Ic): 50 A (measured at a case temperature T_c = 80°C)
• Repetitive Peak Reverse Voltage (V_RRM): 1600V (Converter side)
• Max Power Dissipation (P_c): 205 W per inverter device
• Saturation Voltage (V_CE(sat): 2.40 V Typical (at I_c = 50A)
