10A 25A 40A 3 phase Solid State Relay

3 phase solid state relays (Triacs output 10A to 40A)

GT series three phase Solid State Relays is used three phase loads. triacs output. GT series is Dual triacs Power Hybrid technology provides highly efficient thermal management for greatly increased cyclic life.

Feature:
- Rated operational current 3X10, 3X15, 3X25, 3X40A.
- Both “Zero crossing” & “Random Switching” versions.
- Input Voltage Range 4 to 16 Vdc, 4 to 32 Vdc, 90 to 250Vac.
- 2500 Vrms Optical Isolation.(input/output)

- LED-indication for control input.

Symbo Meaning

GT1234

G - Greegoo

T - Three phase

1 - 10-10A, 15-15A, 25-25A, 40-40A

2 - 48-480V

3 - Z-zero control, R-random control

4 - D1-4-16Vdc, D3-4-32Vdc A2-90-250Vac

For example: GT4048ZD3, 3 phase, 40A, 480Vac, 3-32Vdc control

440VAC

Model Numbers	Max.Current	Max.Voltage	Control Voltage	Control Mode
GT1044ZD1	10A	440V	12-15VDC	Zero control
GT1044RD1	10A	440V	12-15VDC	Random control
GT1044ZD3	10A	440V	3-32VDC	Zero control
GT1044RD3	10A	440V	3-32VDC	Random control
GT1044ZA2	10A	440V	90-250VAC	Zero control
GT1044RA2	10A	440V	90-250VAC	Random control
GT1544ZD1	15A	440V	12-15VDC	Zero control
GT1544RD1	15A	440V	12-15VDC	Random control
GT1544ZD3	15A	440V	3-32VDC	Zero control
GT1544RD3	15A	440V	3-32VDC	Random control
GT1544ZA2	15A	440V	90-250VAC	Zero control
GT1544RA2	15A	440V	90-250VAC	Random control
GT2544ZD1	25A	440V	12-15VDC	Zero control
GT2544RD1	25A	440V	12-15VDC	Random control

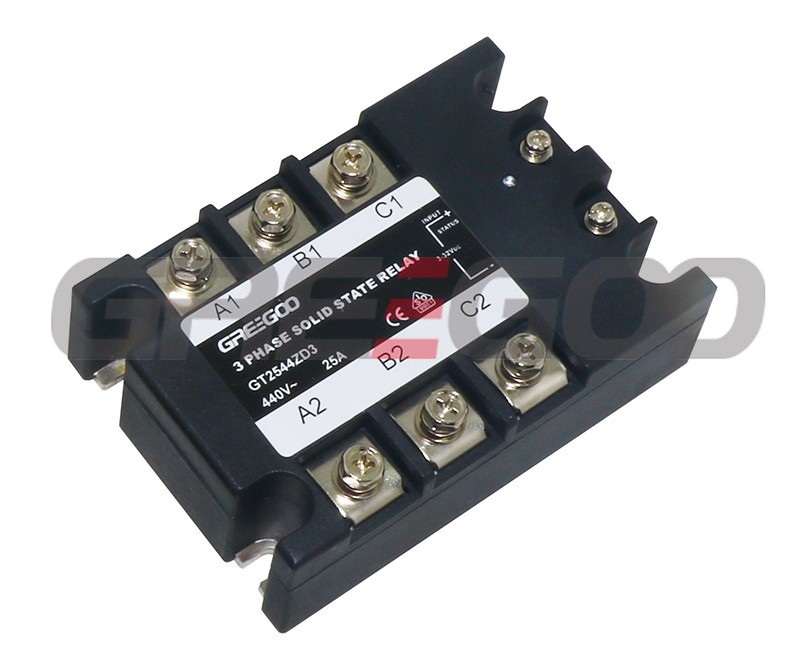

GT2544ZD3	25A	440V	3-32VDC	Zero control
GT2544RD3	25A	440V	3-32VDC	Random control
GT2544ZA2	25A	440V	90-250VAC	Zero control
GT2544RA2	25A	440V	90-250VAC	Random control
GT4044ZD1	40A	440V	12-15VDC	Zero control
GT4044RD1	40A	440V	12-15VDC	Random control
GT4044ZD3	40A	440V	3-32VDC	Zero control
GT4044RD3	40A	440V	3-32VDC	Random control
GT4044ZA2	40A	440V	90-250VAC	Zero control
GT4044RA2	40A	440V	90-250VAC	Random control

480VAC

New Model	Old Model	Max.Current	Max.Voltage	Control Voltage	Control Mode
GT1048ZD1	GTH1048ZD1	10A	480V	12-15VDC	Zero control
GT1048RD1	GTH1048RD1	10A	480V	12-15VDC	Random control
GT1048ZD3	GTH1048ZD3	10A	480V	3-32VDC	Zero control
GT1048RD3	GTH1048RD3	10A	480V	3-32VDC	Random control
GT1048ZA2	GTH1048ZA2	10A	480V	90-250VAC	Zero control
GT1048RA2	GTH1048RA2	10A	480V	90-250VAC	Random control
GT1548ZD1	GTH1548ZD1	15A	480V	12-15VDC	Zero control
GT1548RD1	GTH1548RD1	15A	480V	12-15VDC	Random control
GT1548ZD3	GTH1548ZD3	15A	480V	3-32VDC	Zero control
GT1548RD3	GTH1548RD3	15A	480V	3-32VDC	Random control
GT1548ZA2	GTH1548ZA2	15A	480V	90-250VAC	Zero control
GT1548RA2	GTH1548RA2	15A	480V	90-250VAC	Random control
GT2548ZD1	GTH2548ZD1	25A	480V	12-15VDC	Zero control
GT2548RD1	GTH2548RD1	25A	480V	12-15VDC	Random control

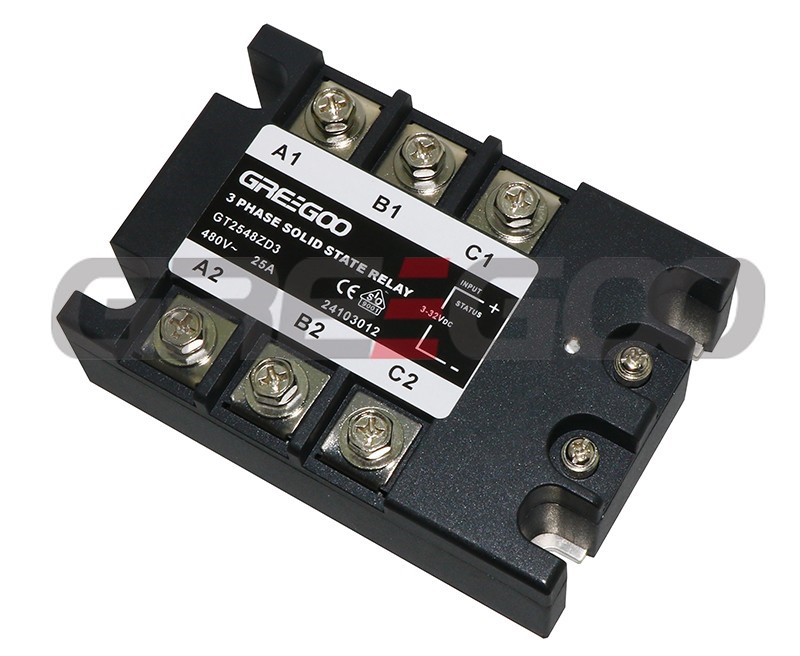

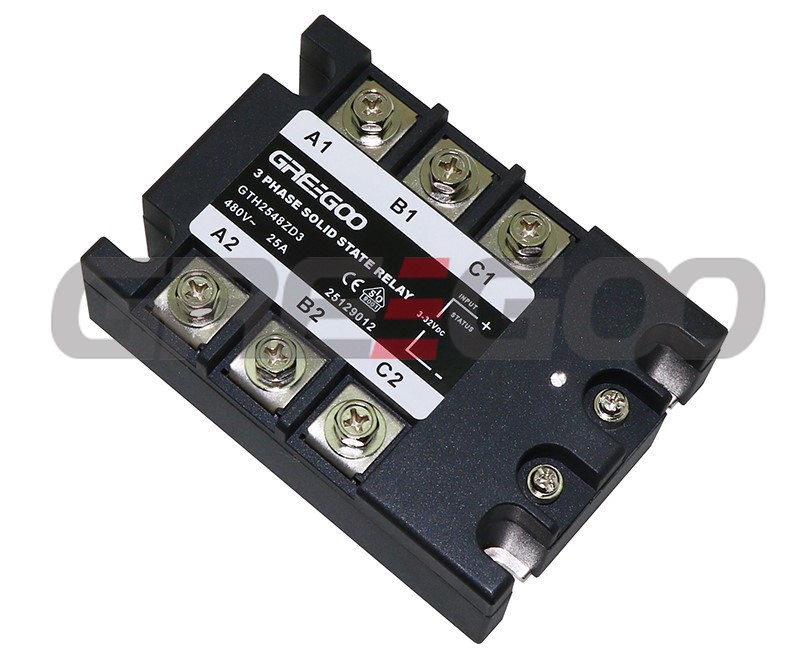

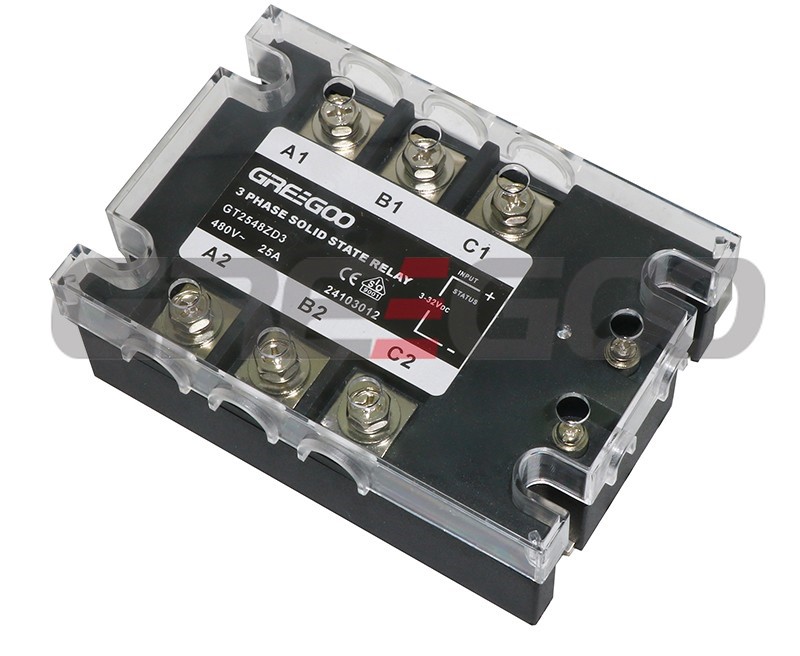

GT2548ZD3	GTH2548ZD3	25A	480V	3-32VDC	Zero control
GT2548RD3	GTH2548RD3	25A	480V	3-32VDC	Random control
GT2548ZA2	GTH2548ZA2	25A	480V	90-250VAC	Zero control
GT2548RA2	GTH2548RA2	25A	480V	90-250VAC	Random control
GT4048ZD1	GTH4048ZD1	40A	480V	12-15VDC	Zero control
GT4048RD1	GTH4048RD1	40A	480V	12-15VDC	Random control
GT4048ZD3	GTH4048ZD3	40A	480V	3-32VDC	Zero control
GT4048RD3	GTH4048RD3	40A	480V	3-32VDC	Random control

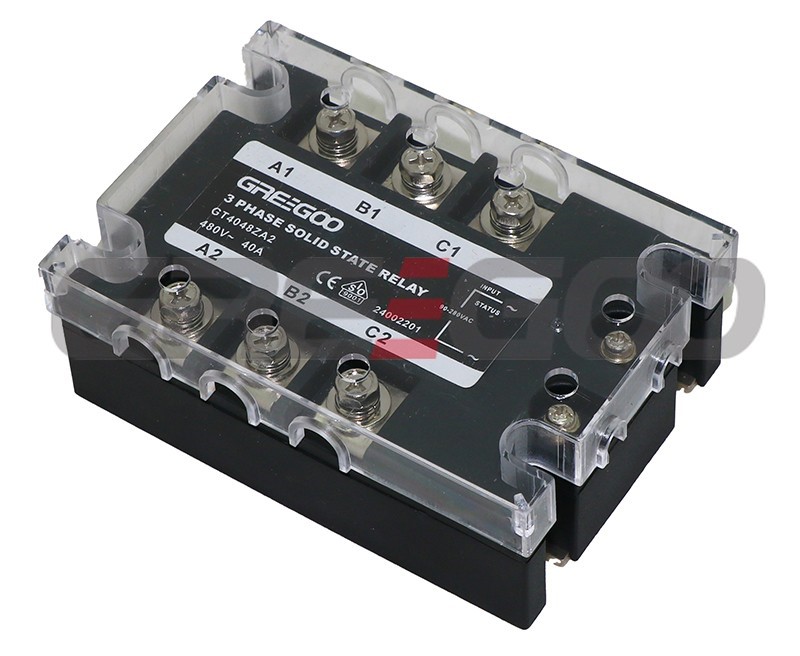

GT4048ZA2	GTH4048ZA2	40A	480V	90-250VAC	Zero control
GT4048RA2	GTH4048RA2	40A	480V	90-250VAC	Random control

660VAC

Model Numbers	Max.Current	Max.Voltage	Control Voltage	Control Mode
GT1066ZD3	10A	660V	3-32VDC	Zero crossing
GT1066ZA2	10A	660V	90-250VAC	Zero crossing
GT1566ZD3	15A	660V	3-32VDC	Zero crossing
GT1566ZA2	15A	660V	90-250VAC	Zero crossing
GT2566ZD3	25A	660V	3-32VDC	Zero crossing
GT2566ZA2	25A	660V	90-250VAC	Zero crossing
GT4066ZD3	40A	660V	3-32VDC	Zero crossing
GT4066ZA2	40A	660V	90-250VAC	Zero crossing
