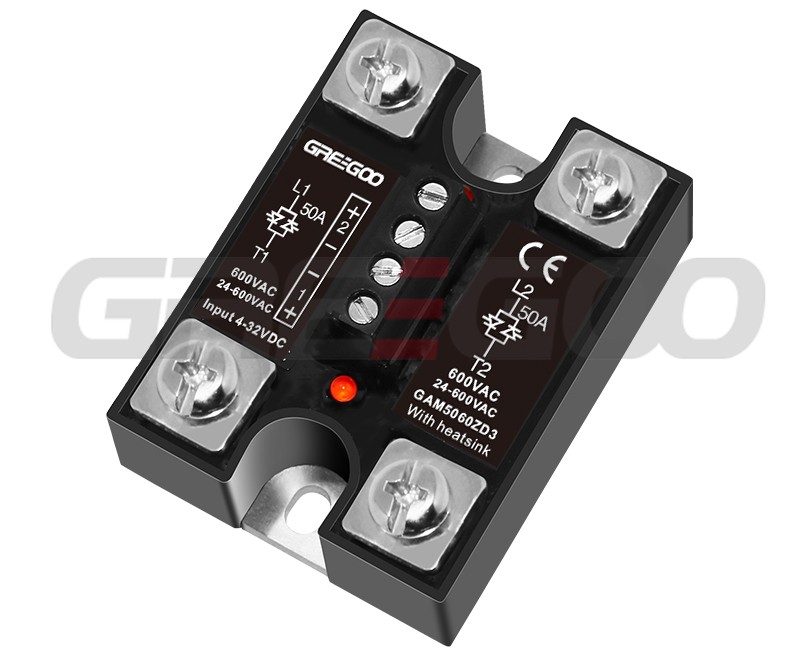

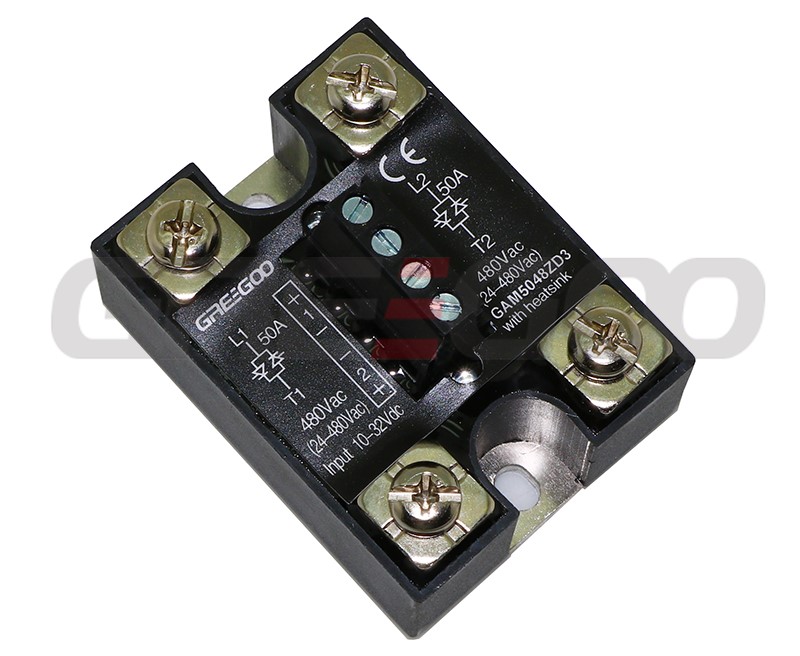

2 phase output solid state relays
Features
- Rated operational current 25,40,50Amps.
- Rated operational voltage 480VAC or 600VAC
- Input Voltage Range 4 to 32 Vdc.
- 2500Vrms Optical Isolation. [input/output]
- Both "Zero Voltage" & phase controllable "Random Switching" versions
Model Selection
| Control Voltage |
Dutput Voltage | Rated Operational Current | |||
| 25Amps | 40Amps | 50Amps | 75Amps | ||
| 4 to 32VDC | 480VAC"Z" | GAM2548ZD3 | GAM4048ZD3 | GAM5048ZD3 | GAM7548ZD3 |
| 4 to 32VDC | 480VAC"R" | GAM2548RD3 | GAM4048RD3 | GAM5048RD3 | GAM7548RD3 |
| 4 to 32VDC | 600VAC"Z" | GAM2560ZD3 | GAM4060Z03 | GAM5060Z03 | GAM7560Z03 |
| 4 to 32VDC | 600VAC”R” | GAM2560RD3 | GAM4060RD3 | GAM5060RD3 | GAM7560RD3 |

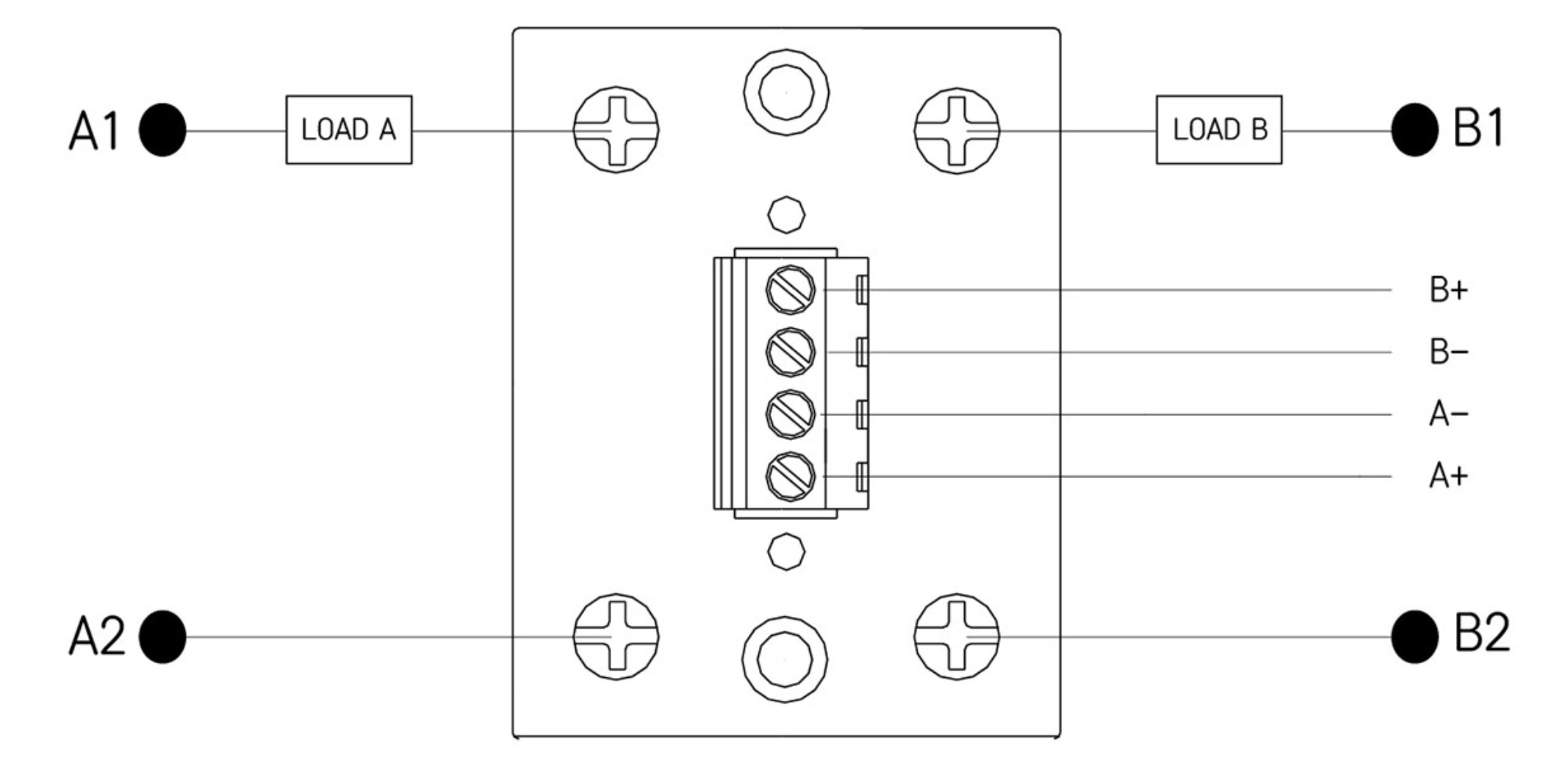

Wiring

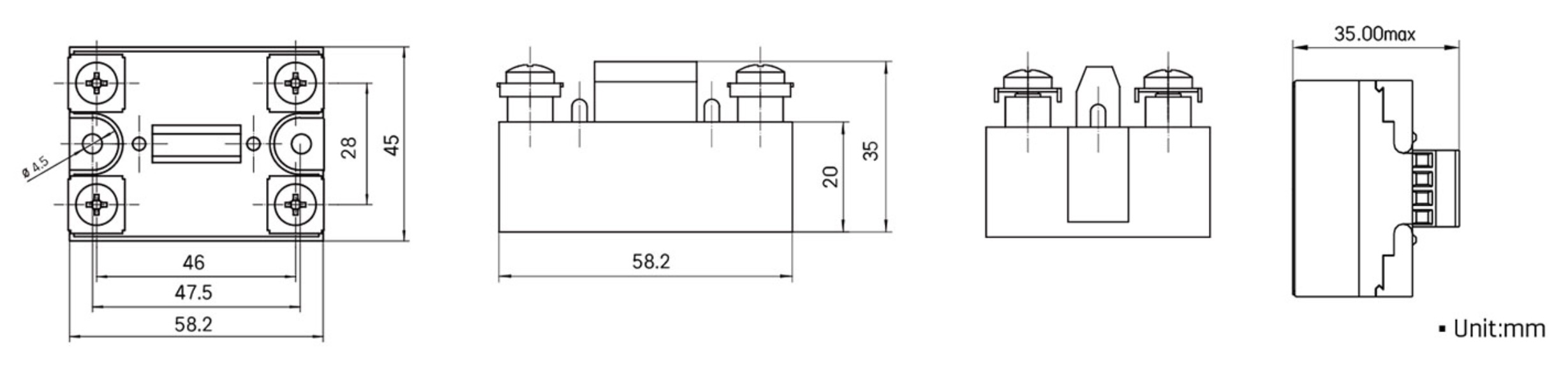

Dimensions
