3 Level IGBT Module
Home Products IGBT Power ModuleIGBT Topology & Application3 Level IGBT Module
3 Level IGBT Module

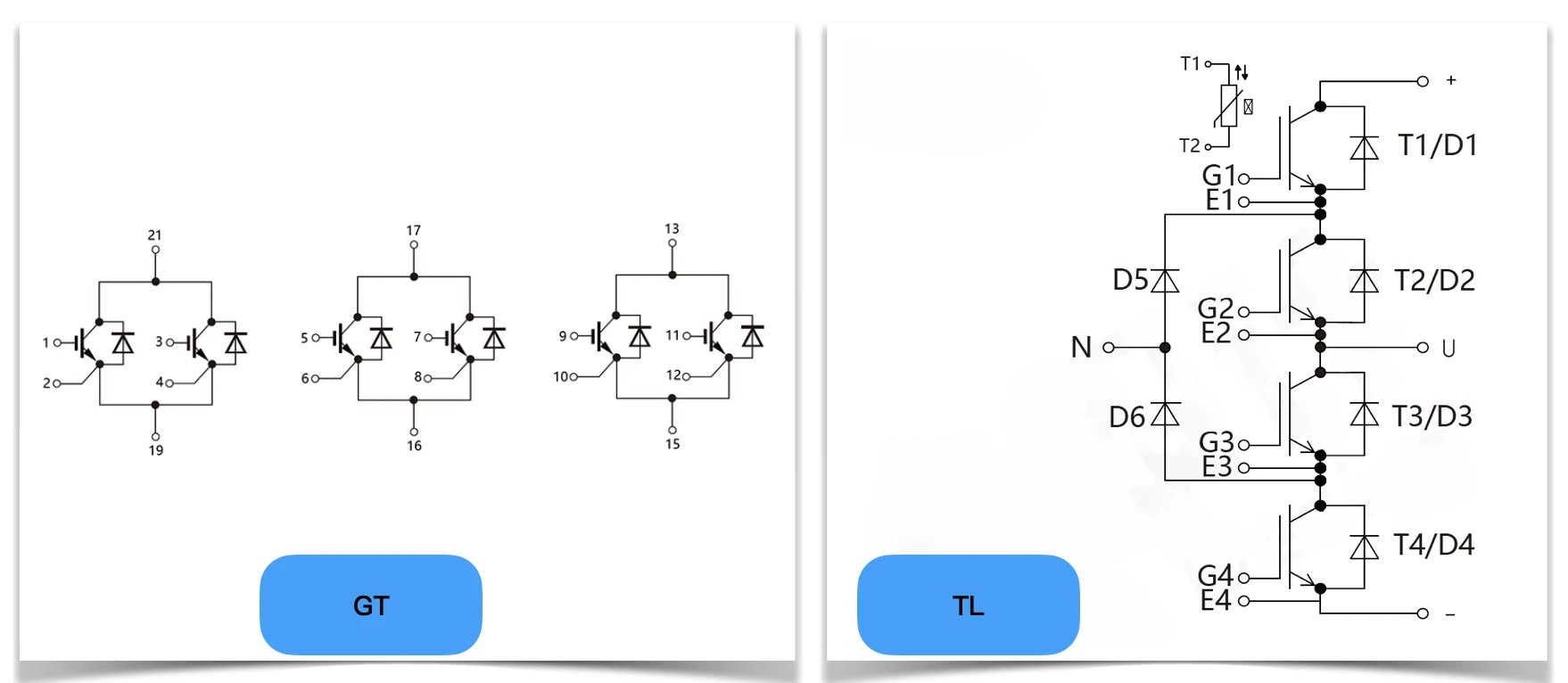

Compared to conventional two-level inverters, three-level inverters offer significant advantages, including reduced voltage stress on switching devices, lowering their voltage rating by half for the same DC bus voltage. They also achieve 50% lower harmonic distortion in output voltage at the same switching frequency, resulting in improved power quality. Additionally, with the same power-rated switching devices, three-level inverters can deliver twice the output power, making them a more efficient and high-performance solution for advanced power conversion applications.
|
Type |
Vces (V) |
Ic (A) |
Vcesat (V) |
Rthjc (K/W) |
Housing |
Infineon Equivalent |
|
G50GX120D2 |
1200 |
50 |
3.20 |
0.32 |
G7 |
BSM50GX120D2 |
|
G50GX120S2 |
1200 |
50 |
3.20 |
0.32 |
G7 |
3MBI50SX120 |
|
G150GT120D2 |
1200 |
150 |
3.20 |
0.08 |
G9 |
BSM150GT120DN2 BSM150GT120DLC |
|
G150GT120S2 |
1200 |
150 |
3.20 |
0.08 |
G9 |
3MBI150SX120 |
Need more information?
Contact us to request pricing, availability and customization options.
PIM IGBT Modules
Seven pack IGBT module, CBI module (Converter-Brake-Inverter Module), PIM module (Power Integrated Module)
Four-pack IGBT Module
High power density, a well-developed Easy module concept, and an optional integrated temperature sensor for real-time monitoring
Chopper IGBT Module
IGBT Chopper Modules are widely used in electric traction applications, such as subways, electric locomotives, trolleybuses, and battery-powered transport vehicles, for smooth, stepless speed control of DC motors.
Single Switch IGBT Module
300A 400A 600A 800A 900A 1200V or 1700V, simplified circuit design and enhanced durability make them a preferred choice for various industrial and commercial applications.
