Product Features

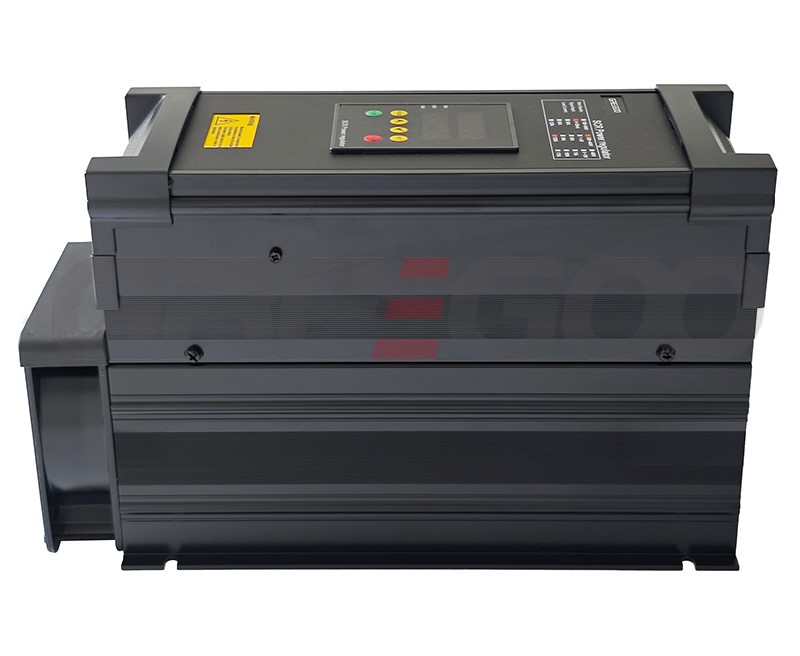

3 phase digital scr controller 150A

◎ Adopts 32-bit MCU dual-core control with PID closed-loop control for 100% linear output.

◎ Dual-row digital display with freely definable display of input, output, voltage, current, and power.

◎ Dual-channel input signal design with direct switching between current and voltage.

◎ Fast-acting fuse combined with transformer for dual overcurrent protection.

◎ Parameter storage and one-key reset function.

◎ MODBUS RTU communication.

Specification

Model	Phase	Input Voltage	Rated Current	Load Power(KW)		Weight (Kg)	Control mode	Control signal
				220V	380V
HGW6-4-4-150-P	3Ph	380-440V	150A	45	75	5.5	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-4-4-150-C	3Ph	380-440V	150A	45	75	5.5	Phase angle constant current	4-20mA/0-5V
HGW6-4-4-150-CV	3Ph	380-440V	150A	45	75	5.5	Phase angle constant power	4-20mA/0-5V
HGW6-4-4-150-Z	3Ph	380-440V	150A	45	75	5.5	Zero crossing cycle power regulating	4-20mA/0-5V

HGW6-4-2-150-P	3Ph	110-220V	150A	45	75	5.5	Phase angle (constant voltage limiting current)	4-20mA/0-5V
HGW6-4-2-150-C	3Ph	110-220V	150A	45	75	5.5	Phase angle constant current	4-20mA/0-5V
HGW6-4-2-150-CV	3Ph	110-220V	150A	45	75	5.5	Phase angle constant power	4-20mA/0-5V
HGW6-4-2-150-Z	3Ph	110-220V	150A	45	75	5.5	Zero crossing cycle power regulating	4-20mA/0-5V
