3.6KV Vacuum Contactor 500A and 630A
Home Products Vacuum Contactor3.6kV Vacuum Contactors3.6KV Vacuum Contactor 500A and 630A
GVC11-500A/3.6KV
3.6KV Vacuum Contactor 500A and 630A
| Part numbers | GVC11-500A/3.6KV | |
| Nominal Current | A | 500 |
| Nominal Voltage | kV | 3.6 |
| Rated Making Capacity | A | 5000 |
| Rated Breaking Capacity | A | 4000 |
| Pick-up power | VA | 400 |
| Holding Power | W | 45 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 110/220 |
| Auxiliary contacts | 4NO 2NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:0.7A DC-13: Ue: DC250V le:0.1A |
|
| Weight | Kg | 10 |
| Dimensions | mm | 231x216x181 |

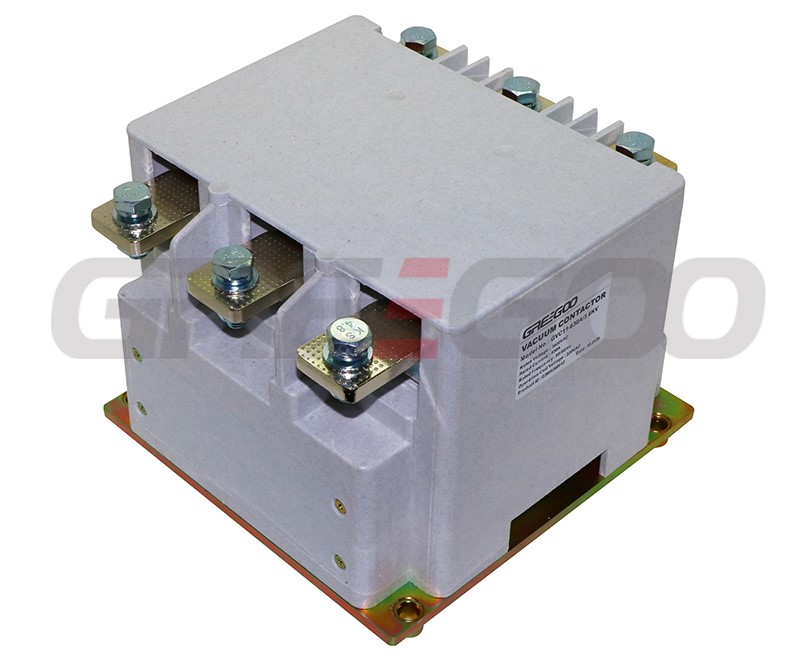

GVC11-630A/3.6KV
| Part numbers | GVC11-630A/3.6KV | |
| Nominal Current | A | 630 |
| Nominal Voltage | kV | 3.6 |
| Rated Making Capacity | A | 6300 |
| Rated Breaking Capacity | A | 5000 |
| Pick-up power | VA | 400 |
| Holding Power | W | 45 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 110/220 |
| Auxiliary contacts | 4NO 2NC | |
| Auxiliary contacts capacity | AC-15: Ue: AC380V le:0.7A DC-13: Ue: DC250V le:0.1A |
|
| Weight | Kg | 10 |
| Dimensions | mm | 231x216x181 |

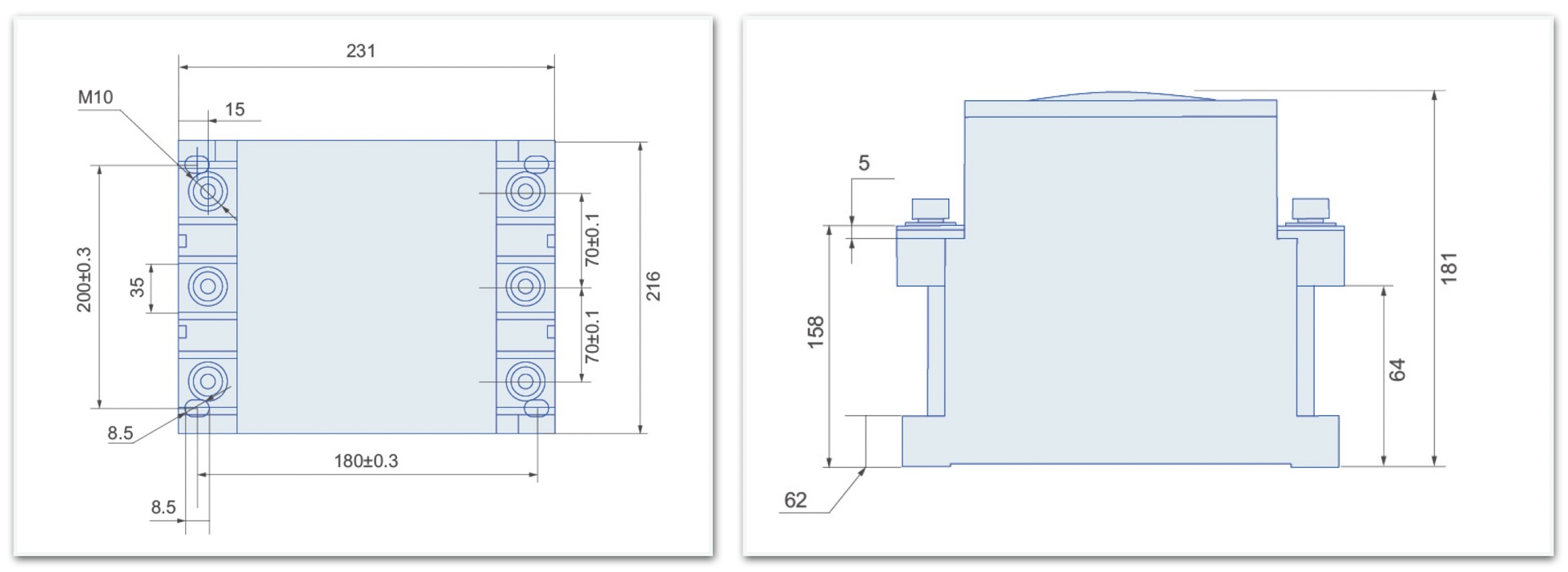

Dimensions
