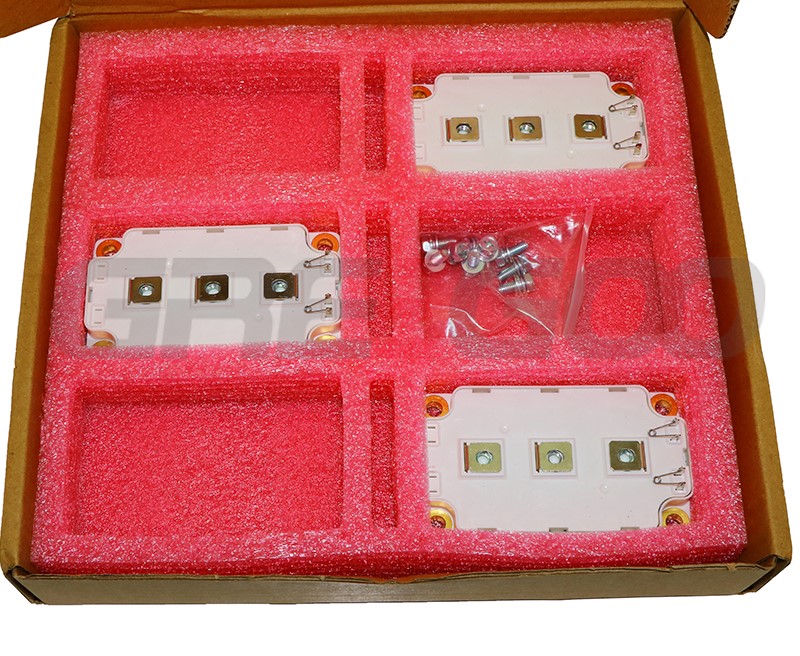

APTGT300A120G IGBT Module

V_CES = 1200V I_C= 300A @ T_c = 80°C

Application

• Welding converters
• Switched Mode Power Supplies
• Uninterruptible Power Supplies
• Motor control

Features
• Fast Trench Field Stop IGBT3 Technology
- Low voltage drop
- Low tail current
- Switching frequency up to 20 kHz
- Soft recovery parallel diodes
- Low diode VF
- Low leakage current
- RBSOA and SCSOA rated
• Kelvin emitter for easy drive
• Very low stray inductance
- Symmetrical design
- MS power connectors
• High level of integration

Benefits
• Stable temperature behavior
• Very rugged
• Direct mounting to heatsink (isolated package)
• Low junction to case thermal resistance
• Easy paralleling due to positive TC of VCEsat
• Low profile
• RoHS Compliant
