34mm width
Dual Diode Module 160A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC160-12-W34 | 160A | 1200V | 1300V | in Series | W34 |
| MDC160-16-W34 | 160A | 1600V | 1700V | in Series | W34 |
| MDC160-18-W34 | 160A | 1800V | 1900V | in Series | W34 |
| MDC160-20-W34 | 160A | 2000V | 2100V | in Series | W34 |
| MDC160-24-W34 | 160A | 2400V | 2500V | in Series | W34 |
| MDA160-12-W34 | 160A | 1200V | 1300V | Common Anode | W34 |
| MDA160-16-W34 | 160A | 1600V | 1700V | Common Anode | W34 |
| MDA160-18-W34 | 160A | 1800V | 1900V | Common Anode | W34 |
| MDA160-20-W34 | 160A | 2000V | 2100V | Common Anode | W34 |
| MDA160-24-W34 | 160A | 2400V | 2500V | Common Anode | W34 |
| MDK160-12-W34 | 160A | 1200V | 1300V | Common Cathode | W34 |
| MDK160-16-W34 | 160A | 1600V | 1700V | Common Cathode | W34 |
| MDK160-18-W34 | 160A | 1800V | 1900V | Common Cathode | W34 |
| MDK160-20-W34 | 160A | 2000V | 2100V | Common Cathode | W34 |
| MDK160-24-W34 | 160A | 2400V | 2500V | Common Cathode | W34 |
 |
 |

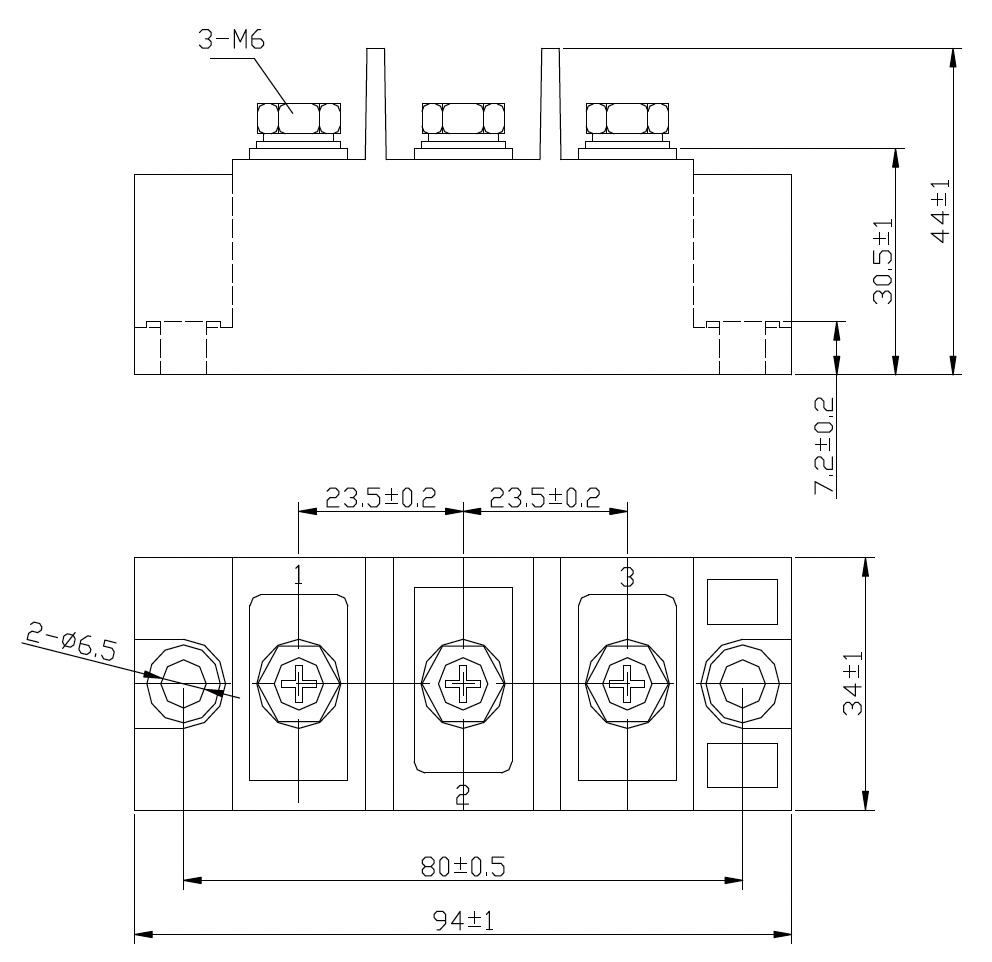

34mm width (BG)
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC160BG-12-W34 | 160A | 1200V | 1300V | in Series | W34 |
| MDC160BG-16-W34 | 160A | 1600V | 1700V | in Series | W34 |
| MDC160BG-18-W34 | 160A | 1800V | 1900V | in Series | W34 |
| MDC160BG-20-W34 | 160A | 2000V | 2100V | in Series | W34 |
| MDC160BG-24-W34 | 160A | 2400V | 2500V | in Series | W34 |
| MDA160BG-12-W34 | 160A | 1200V | 1300V | Common Anode | W34 |
| MDA160BG-16-W34 | 160A | 1600V | 1700V | Common Anode | W34 |
| MDA160BG-18-W34 | 160A | 1800V | 1900V | Common Anode | W34 |
| MDA160BG-20-W34 | 160A | 2000V | 2100V | Common Anode | W34 |
| MDA160BG-24-W34 | 160A | 2400V | 2500V | Common Anode | W34 |
| MDK160BG-12-W34 | 160A | 1200V | 1300V | Common Cathode | W34 |
| MDK160BG-16-W34 | 160A | 1600V | 1700V | Common Cathode | W34 |
| MDK160BG-18-W34 | 160A | 1800V | 1900V | Common Cathode | W34 |
| MDK160BG-20-W34 | 160A | 2000V | 2100V | Common Cathode | W34 |
| MDK160BG-24-W34 | 160A | 2400V | 2500V | Common Cathode | W34 |
 |
|

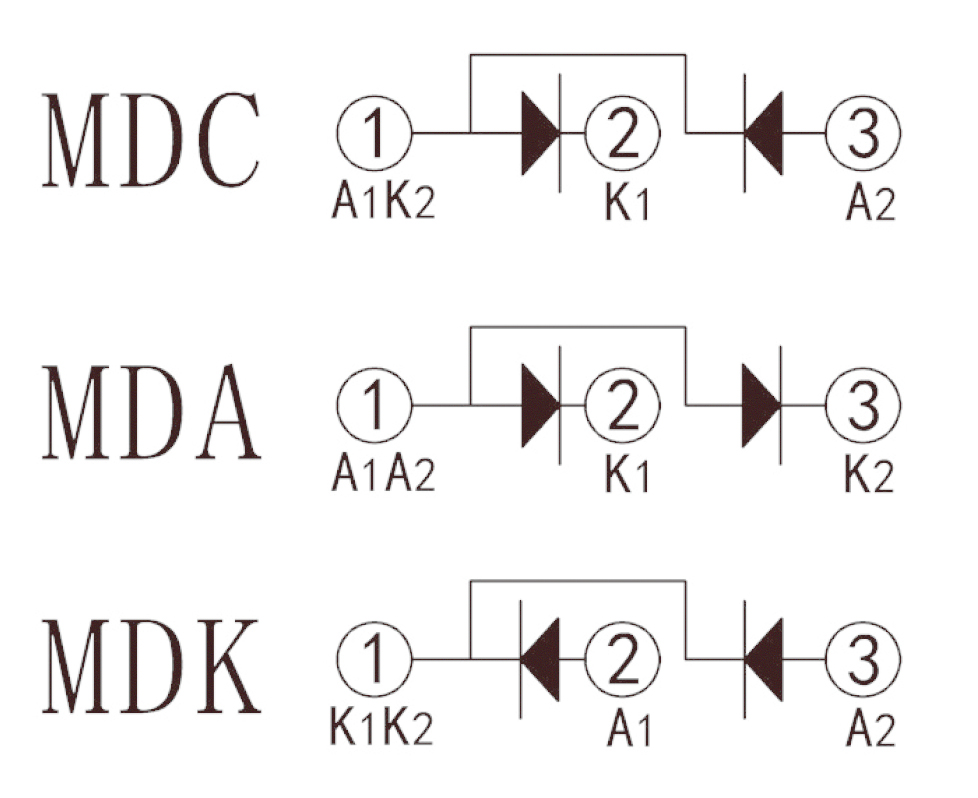

34mm width (B)
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC160B-12-W34 | 160A | 1200V | 1300V | in Series | W34 |
| MDC160B-16-W34 | 160A | 1600V | 1700V | in Series | W34 |
| MDC160B-18-W34 | 160A | 1800V | 1900V | in Series | W34 |
| MDC160B-20-W34 | 160A | 2000V | 2100V | in Series | W34 |
| MDC160B-24-W34 | 160A | 2400V | 2500V | in Series | W34 |
| MDA160B-12-W34 | 160A | 1200V | 1300V | Common Anode | W34 |
| MDA160B-16-W34 | 160A | 1600V | 1700V | Common Anode | W34 |
| MDA160B-18-W34 | 160A | 1800V | 1900V | Common Anode | W34 |
| MDA160B-20-W34 | 160A | 2000V | 2100V | Common Anode | W34 |
| MDA160B-24-W34 | 160A | 2400V | 2500V | Common Anode | W34 |
| MDK160B-12-W34 | 160A | 1200V | 1300V | Common Cathode | W34 |
| MDK160B-16-W34 | 160A | 1600V | 1700V | Common Cathode | W34 |
| MDK160B-18-W34 | 160A | 1800V | 1900V | Common Cathode | W34 |
| MDK160B-20-W34 | 160A | 2000V | 2100V | Common Cathode | W34 |
| MDK160B-24-W34 | 160A | 2400V | 2500V | Common Cathode | W34 |
 |
 |
