Dual Diode Module 260A
Home Products Thyristor Diode ModuleDual Diode Modules 55A to 1200ADual Diode Module 260A

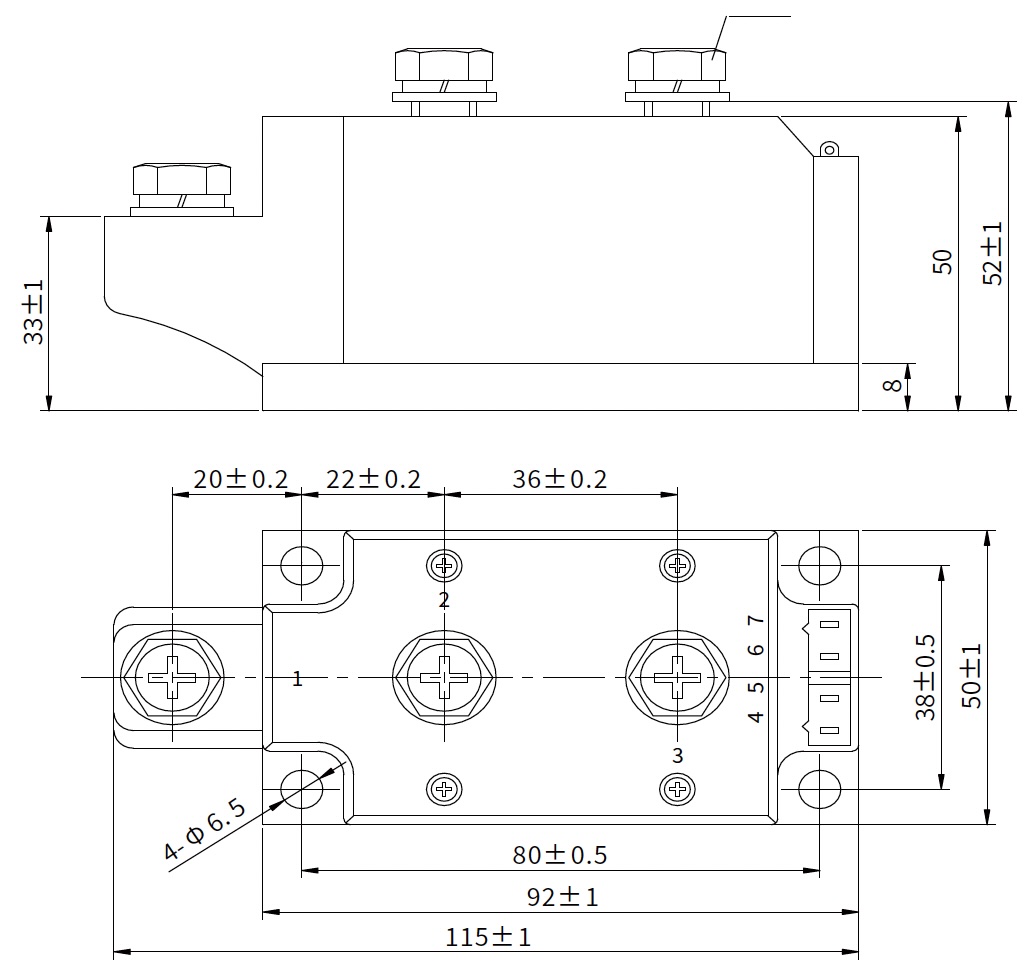

50mm width
Dual Diode Module 260A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC260-12-W50 | 260A | 1200V | 1300V | in Series | W50 |
| MDC260-16-W50 | 260A | 1600V | 1700V | in Series | W50 |
| MDC260-18-W50 | 260A | 1800V | 1900V | in Series | W50 |
| MDC260-20-W50 | 260A | 2000V | 2100V | in Series | W50 |
| MDC260-24-W50 | 260A | 2400V | 2500V | in Series | W50 |
| MDA260-12-W50 | 260A | 1200V | 1300V | Common Anode | W50 |
| MDA260-16-W50 | 260A | 1600V | 1700V | Common Anode | W50 |
| MDA260-18-W50 | 260A | 1800V | 1900V | Common Anode | W50 |
| MDA260-20-W50 | 260A | 2000V | 2100V | Common Anode | W50 |
| MDA260-24-W50 | 260A | 2400V | 2500V | Common Anode | W50 |
| MDK260-12-W50 | 260A | 1200V | 1300V | Common Cathode | W50 |
| MDK260-16-W50 | 260A | 1600V | 1700V | Common Cathode | W50 |
| MDK260-18-W50 | 260A | 1800V | 1900V | Common Cathode | W50 |
| MDK260-20-W50 | 260A | 2000V | 2100V | Common Cathode | W50 |
| MDK260-24-W50 | 260A | 2400V | 2500V | Common Cathode | W50 |
 |
 |

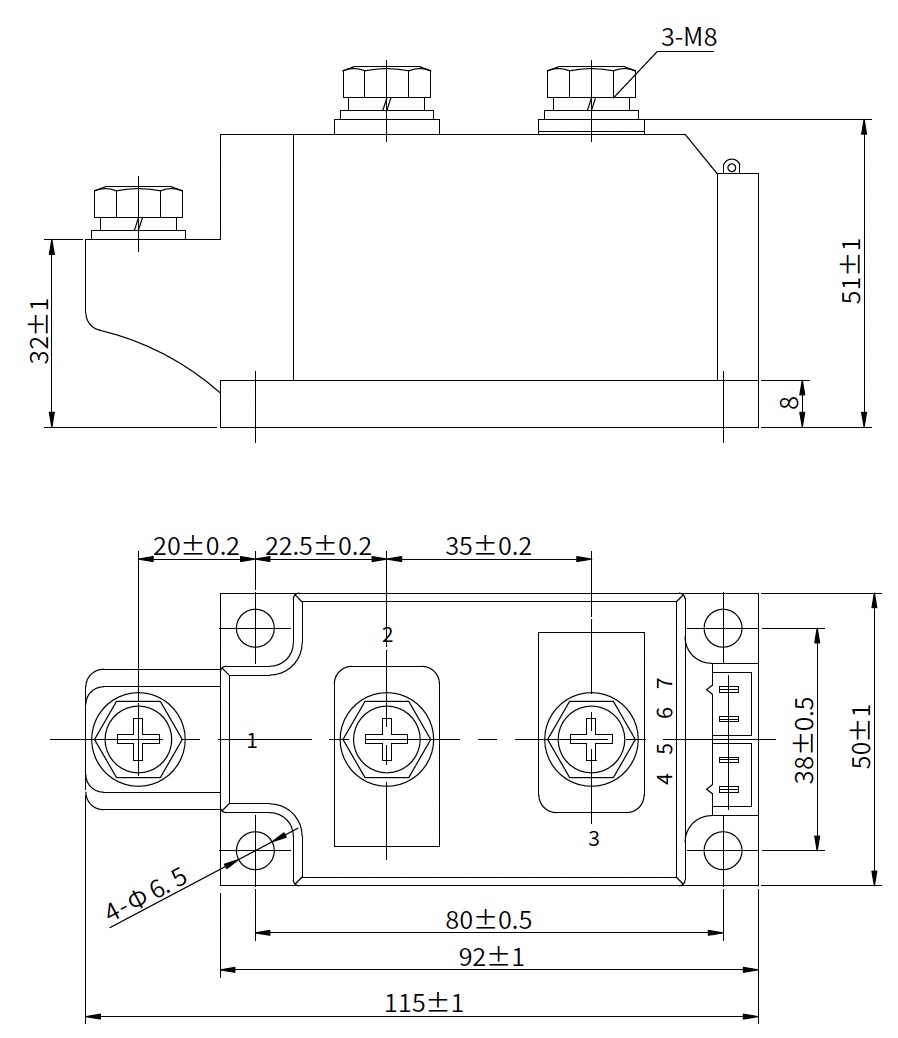

50mm width (D)
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC260D-12-W50 | 260A | 1200V | 1300V | in Series | W50 |
| MDC260D-16-W50 | 260A | 1600V | 1700V | in Series | W50 |
| MDC260D-18-W50 | 260A | 1800V | 1900V | in Series | W50 |
| MDC260D-20-W50 | 260A | 2000V | 2100V | in Series | W50 |
| MDC260D-24-W50 | 260A | 2400V | 2500V | in Series | W50 |
| MDA260D-12-W50 | 260A | 1200V | 1300V | Common Anode | W50 |
| MDA260D-16-W50 | 260A | 1600V | 1700V | Common Anode | W50 |
| MDA260D-18-W50 | 260A | 1800V | 1900V | Common Anode | W50 |
| MDA260D-20-W50 | 260A | 2000V | 2100V | Common Anode | W50 |
| MDA260D-24-W50 | 260A | 2400V | 2500V | Common Anode | W50 |
| MDK260D-12-W50 | 260A | 1200V | 1300V | Common Cathode | W50 |
| MDK260D-16-W50 | 260A | 1600V | 1700V | Common Cathode | W50 |
| MDK260D-18-W50 | 260A | 1800V | 1900V | Common Cathode | W50 |
| MDK260D-20-W50 | 260A | 2000V | 2100V | Common Cathode | W50 |
| MDK260D-24-W50 | 260A | 2400V | 2500V | Common Cathode | W50 |
 |
|
