Dual Diode Module 400A
Home Products Thyristor Diode ModuleDual Diode Modules 55A to 1200ADual Diode Module 400A

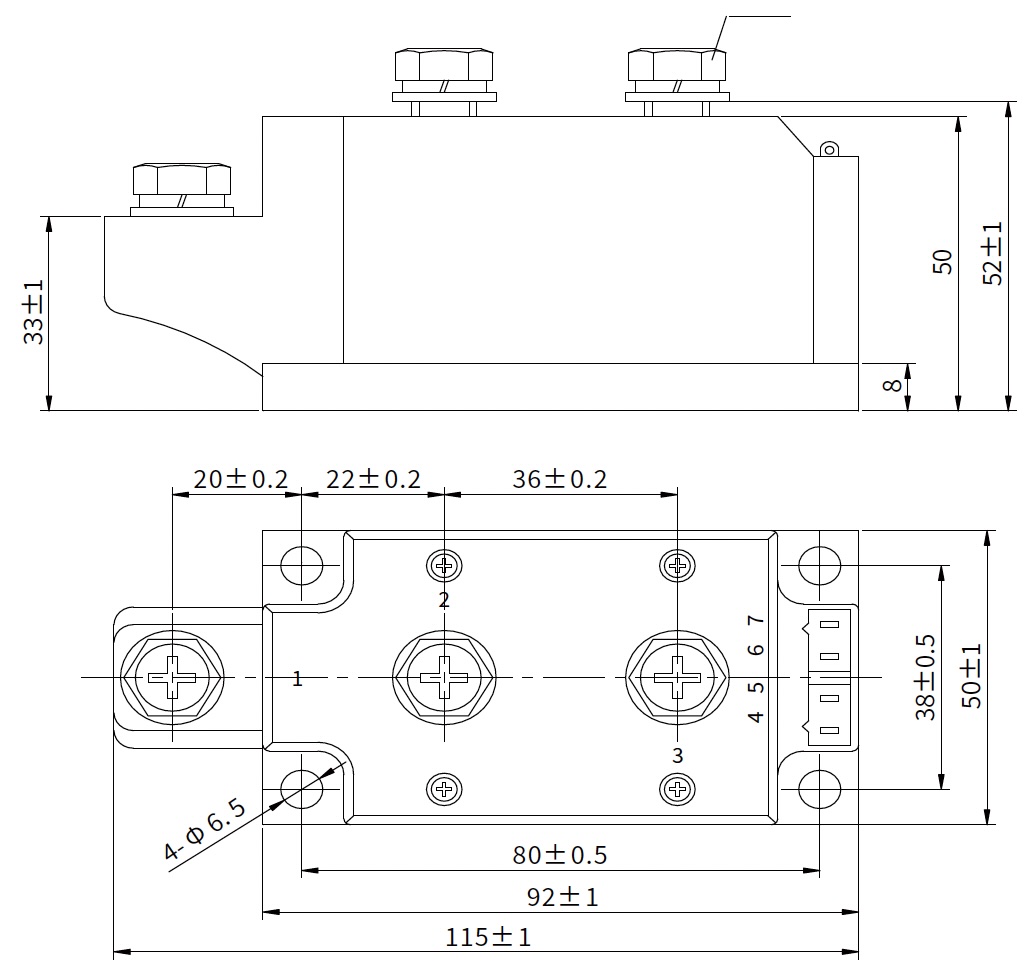

50mm width
Dual Diode Module 400A
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC400-12-W50 | 400A | 1200V | 1300V | in Series | W50 |
| MDC400-16-W50 | 400A | 1600V | 1700V | in Series | W50 |
| MDC400-18-W50 | 400A | 1800V | 1900V | in Series | W50 |
| MDC400-20-W50 | 400A | 2000V | 2100V | in Series | W50 |
| MDC400-24-W50 | 400A | 2400V | 2500V | in Series | W50 |
| MDA400-12-W50 | 400A | 1200V | 1300V | Common Anode | W50 |
| MDA400-16-W50 | 400A | 1600V | 1700V | Common Anode | W50 |
| MDA400-18-W50 | 400A | 1800V | 1900V | Common Anode | W50 |
| MDA400-20-W50 | 400A | 2000V | 2100V | Common Anode | W50 |
| MDA400-24-W50 | 400A | 2400V | 2500V | Common Anode | W50 |
| MDK400-12-W50 | 400A | 1200V | 1300V | Common Cathode | W50 |
| MDK400-16-W50 | 400A | 1600V | 1700V | Common Cathode | W50 |
| MDK400-18-W50 | 400A | 1800V | 1900V | Common Cathode | W50 |
| MDK400-20-W50 | 400A | 2000V | 2100V | Common Cathode | W50 |
| MDK400-24-W50 | 400A | 2400V | 2500V | Common Cathode | W50 |
 |
 |

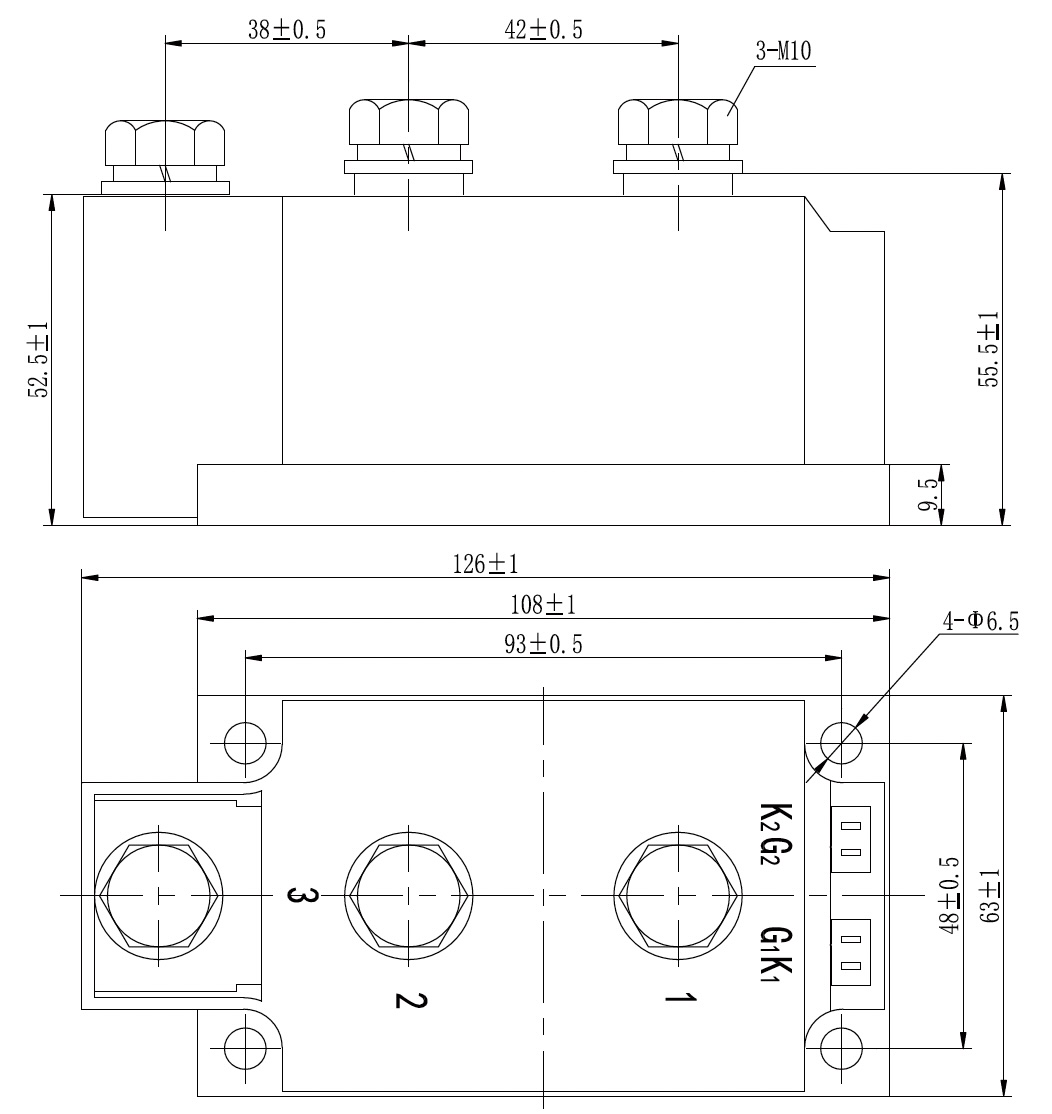

63mm width
| Part numbers | ITAVIFAV | VRRM |
VRSM |
Circuit | Housing |
| MDC400-12-W63 | 400A | 1200V | 1300V | in Series | W63 |
| MDC400-16-W63 | 400A | 1600V | 1700V | in Series | W63 |
| MDC400-18-W63 | 400A | 1800V | 1900V | in Series | W63 |
| MDC400-20-W63 | 400A | 2000V | 2100V | in Series | W63 |
| MDC400-24-W63 | 400A | 2400V | 2500V | in Series | W63 |
| MDA400-12-W63 | 400A | 1200V | 1300V | Common Anode | W63 |
| MDA400-16-W63 | 400A | 1600V | 1700V | Common Anode | W63 |
| MDA400-18-W63 | 400A | 1800V | 1900V | Common Anode | W63 |
| MDA400-20-W63 | 400A | 2000V | 2100V | Common Anode | W63 |
| MDA400-24-W63 | 400A | 2400V | 2500V | Common Anode | W63 |
| MDK400-12-W63 | 400A | 1200V | 1300V | Common Cathode | W63 |
| MDK400-16-W63 | 400A | 1600V | 1700V | Common Cathode | W63 |
| MDK400-18-W63 | 400A | 1800V | 1900V | Common Cathode | W63 |
| MDK400-20-W63 | 400A | 2000V | 2100V | Common Cathode | W63 |
| MDK400-24-W63 | 400A | 2400V | 2500V | Common Cathode | W63 |
 |
|
