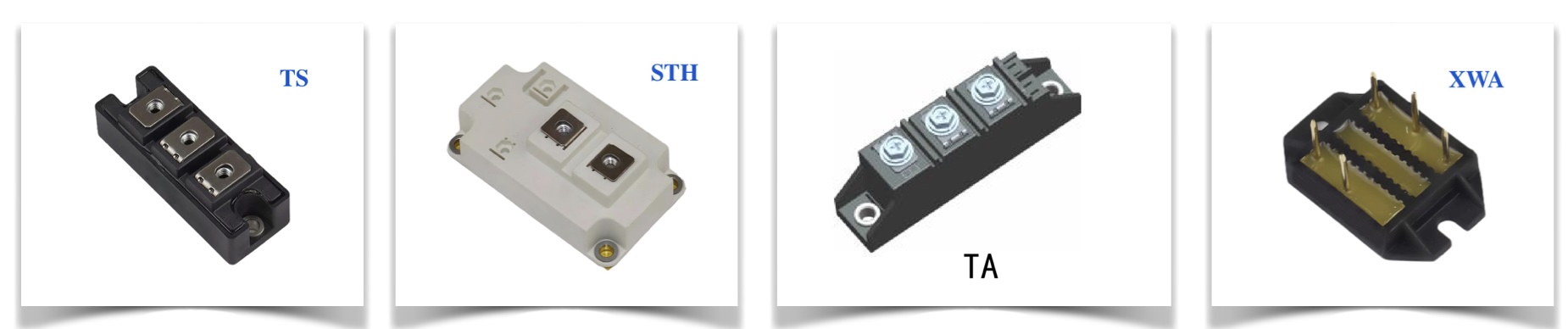

FAST RECOVERY EPITAXIAL DIODE MODULES IR SERIES
Feature:
Imported chips; international standard packaging; forward voltage drop reduction; short reverse recovery time; high avalanche tolerance.
Application fields:
Inverter welding machines; switching power supplies; variable frequency drive equipment; railway locomotive power supplies; electroplating and electrolysis power supplies, etc.
|
Part Numbers |
VRRM |
IF(AV)@d=0.5 |
VFM@IF |
trr@TVJ=125℃ |

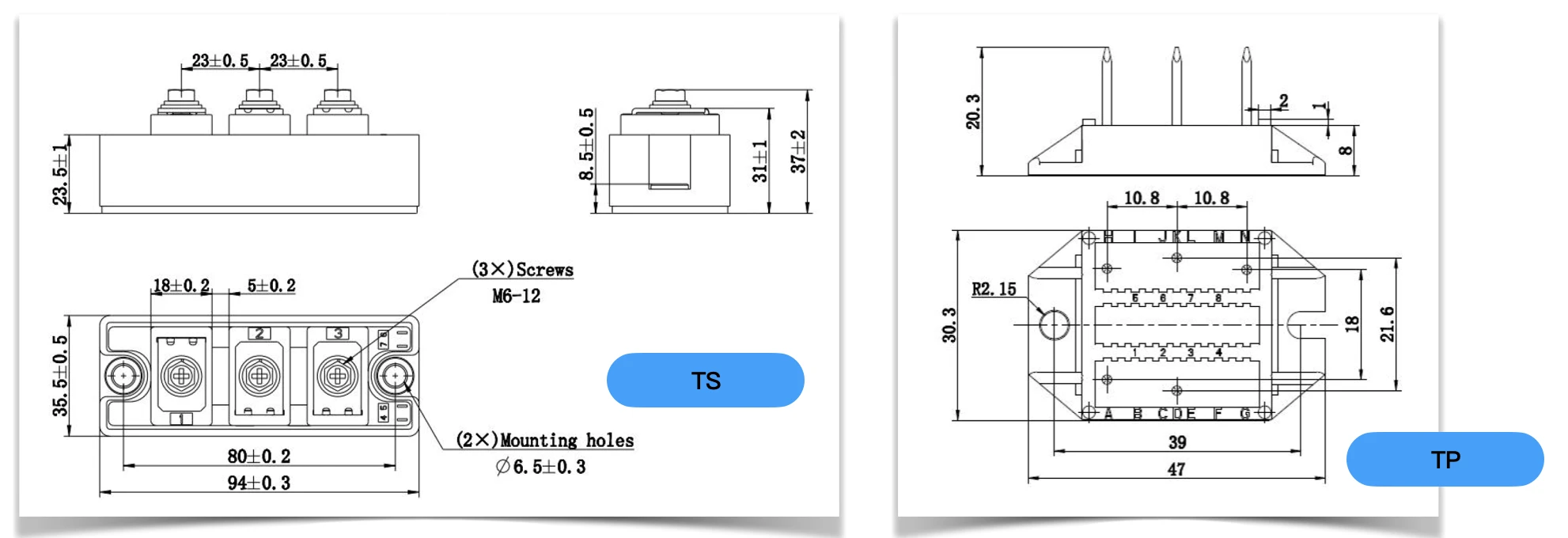

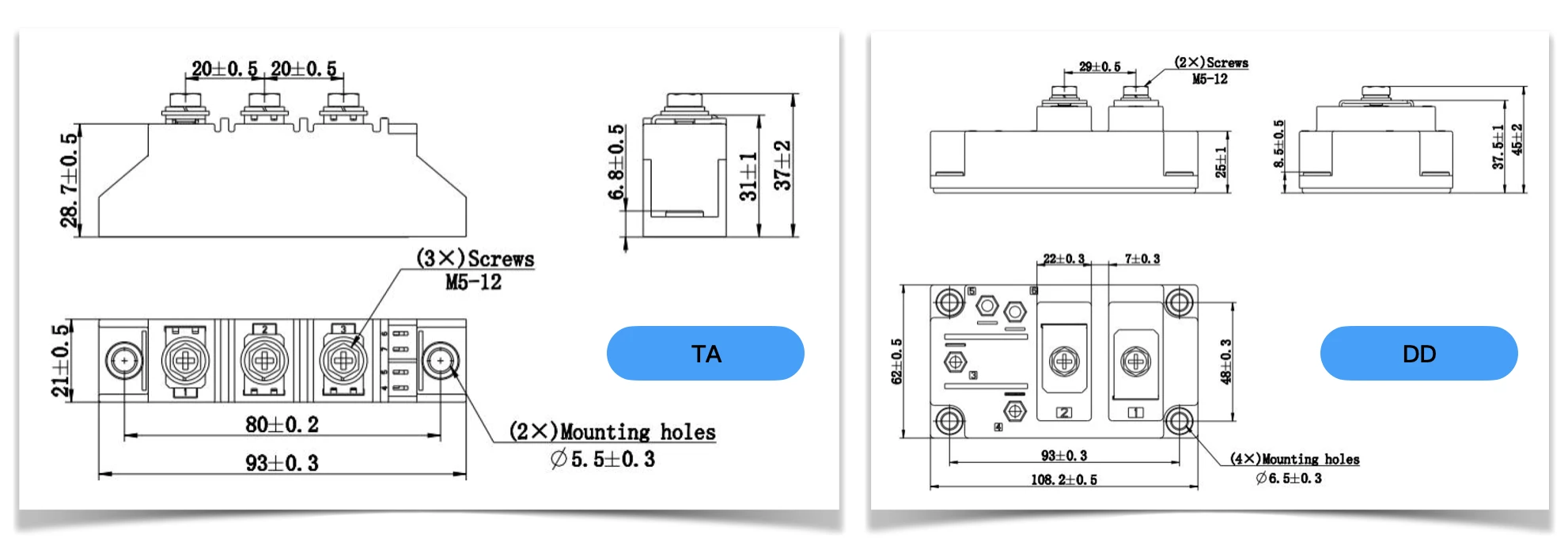

Housing |
|
|
V |
75℃ |
25℃ |
Typ. |
|||
|
A |
V |
A |
ns |
|||
|

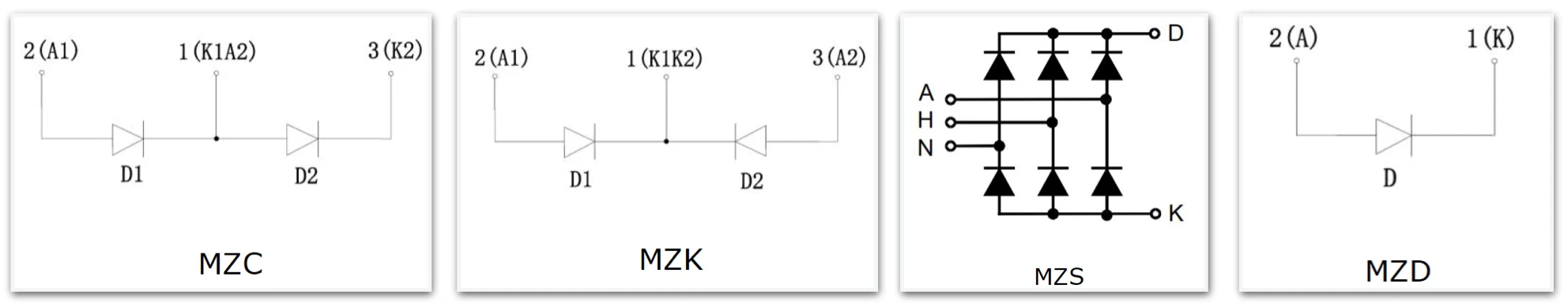

MZC75TA60S MZK75TA60S |
600 |
2*75 |
1.50 |
75 |
170 |
TA |
|
MZC100TA60S MZK100TA60S |
600 |
2*100 |
1.55 |
100 |
180 |
TA |
|
MZC75TS60S MZK75TS60S |
600 |
2*75 |
1.50 |
75 |
170 |
TS |
|
MZC100TS60S MZK100TS60S |
600 |
2*100 |
1.55 |
100 |
180 |
TS |
|
MZC150TS60S MZK150TS60S |
600 |
2*150 |
1.65 |
150 |
220 |
TS |
|
MZC200TS60S MZK200TS60S |
600 |
2*200 |
1.55 |
200 |
230 |
TS |
|
MZC300TS60S MZK300TS60S |
600 |
2*300 |
1.40 |
300 |
240 |
TS |
|
MZC400TS60S MZK400TS60S |
600 |
2*400 |
1.52 |
400 |
400 |
TS |
|
MZD600DD60S |
600 |
600 |
1.65 |
600 |
280 |
DD |
|
MZD800DD60S |
600 |
800 |
1.65 |
800 |
300 |
DD |
|
MZC75TS120S MZK75TS120S |
1200 |
2*75 |
1.70 |
75 |
120 |
TS |
|
MZC100TS120S MZK100TS120S |
1200 |
2*100 |
1.75 |
100 |
130 |
TS |
|
MZC150TS120S MZK150TS120S |
1200 |
2*150 |
1.80 |
150 |
150 |
TS |
|
MZC200TS120S MZK200TS120S |
1200 |
2*200 |
1.85 |
200 |
180 |
TS |
|
MZC300TS120S MZK300TS120S |
1200 |
2*300 |
1.90 |
300 |
200 |
TS |
|
MZC400TS120S MZK400TS120S |
1200 |
2*400 |
1.95 |
400 |
200 |
TS |
|
MZC200TS120P MZK200TS120P |
1200 |
2*200 |
1.80 |
200 |
400 |
TS |
|
MZC300TS120P MZK300TS120P |
1200 |
2*300 |
1.90 |
300 |
430 |
TS |
|
MZD400DD120S |
1200 |
400 |
1.95 |
400 |
200 |
DD |
|
MZD600DD120S |
1200 |
600 |
2.00 |
600 |
230 |
DD |
|
MZD800DD120S |
1200 |
800 |
2.00 |
800 |
250 |
DD |
|
MZC100TS170 MZK100TS170 |
1700 |
2*100 |
1.80 |
100 |
720 |
TS |
|
MZC150TS170 MZK150TS170 |
1700 |
2*150 |
1.85 |
150 |
720 |
TS |
|
MZC200TS170 MZK200TS170 |
1700 |
2*200 |
1.90 |
200 |
740 |
TS |
|
MZC300TS170 MZK300TS170 |
1700 |
2*300 |
1.95 |
300 |
750 |
TS |
|
MZC400TS170 MZK400TS170 |
1700 |
2*400 |
2.00 |
400 |
770 |
TS |
|
MZS75TP60 |
600 |
75 |
30.00 |
1.57 |
35 |
TP |
