GVC1-630A/1.14KV Vacuum Contactor Single Phase
Home Products Vacuum ContactorSingle phase Vacuum ContactorsGVC1-630A/1.14KV Vacuum Contactor Single Phase
Product details
GVC1-630A/1.14KV Vacuum Contactor Single Phase
| Part numbers | GVC1-630A/1.14KV | |
| Nominal Current | A | 630 |
| Nominal Voltage | kV | 1.14 (1.14-2.0) |
| Rated Making Capacity | A | 6300 |
| Rated Breaking Capacity | A | 5040 |
| Mechanical Life | Cycles | 1×106 |
| Electric Life | Cycles | 6×104 |
| Control Power Voltage | V(AC/DC) | 110/220 |
| Auxiliary contacts | 2NO 1NC | |

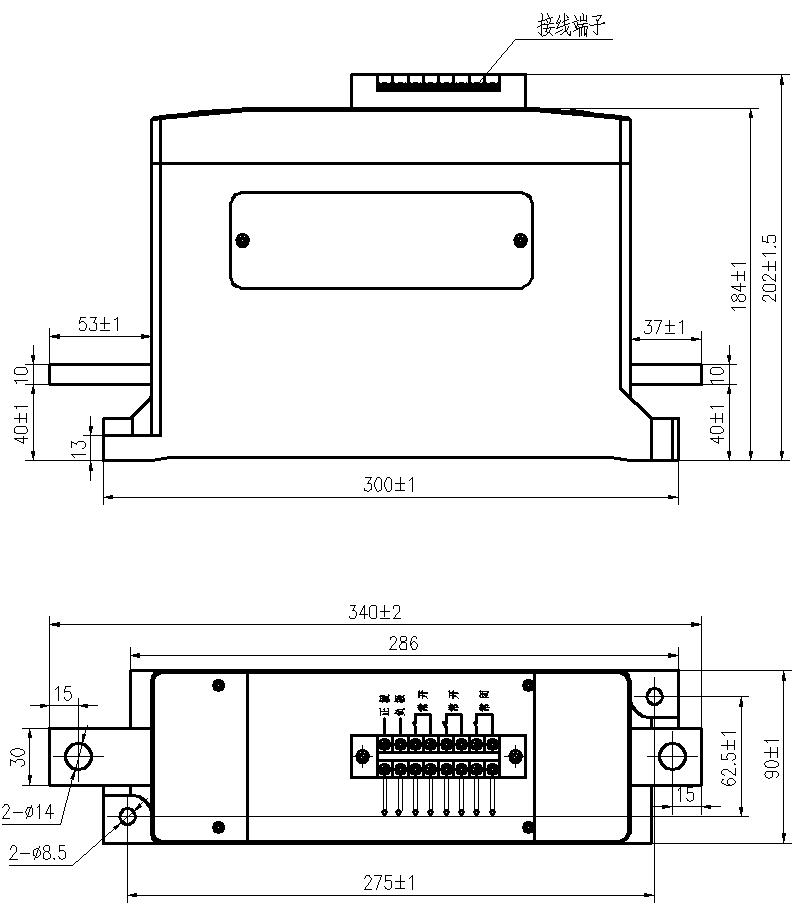

Dimensions
