Product Details

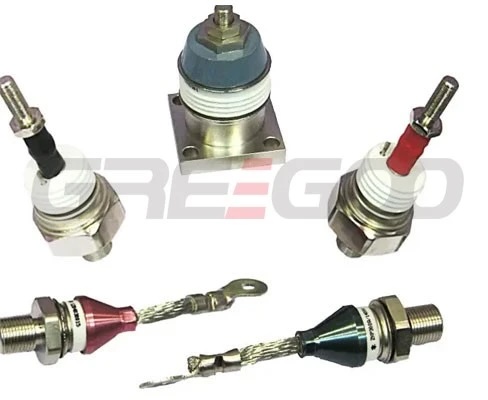

Generator Diode for Rotating Excitation System

Rotating rectifier, rotating diode, generator diode, generator rectifier

Features:
• Able to work under large centrifugal force

Applications:
• Rotating excitation of generator and electric motor

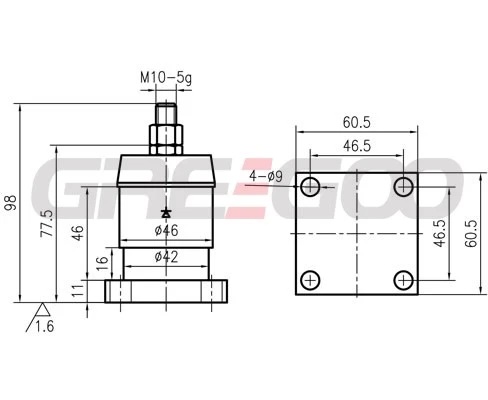

TYPE	IF(AV) @TC A / ℃		VRRM V	IRRM mA	IFSM @Tjm &10ms KA	VFM @IFM25℃ V / A		αn Nor Acc g / g		Rjc ℃/w	M ±10% N.m	Tjm ℃	Outline
ZX16	16	85	800~1600	1	0.23	1.35	48	1250	2500	1.8	2	150	X1
ZX25	25	85	800~1600	1	0.3	1.35	75	1250	2500	1.2	2	150	X1
ZX40	40	85	800~1600	3	0.4	1.35	120	1250	2500	0.8	3.5	150	X2
ZX70	70	85	800~1600	5	1	1.35	210	1250	2500	0.45	3.5	150	X2
ZX100	100	85	800~1600	7	1.5	1.6	300	1250	2500	0.3	13	150	X3
ZX200	200	85	800~1600	14	3	1.6	600	1250	2500	0.2	16	150	X4 X5
ZX200	200	80	1800~3000	14	3	1.8	600	1250	2500	0.2	16	150	X4 X5
ZX300	300	85	800~1600	21	4.5	1.6	900	5000	5500	0.11	16	150	X6 X7 X8 X9
ZX300	300	80	1800~3000	21	4.5	1.8	900	5000	5500	0.11	16	150	X6 X7 X8 X9
ZX400	400	85	800~1600	30	6	1.6	1200	5000	5500	0.09	16	150	X10 X11 X12
ZX400	400	80	1800~3000	30	6	1.8	1200	5000	5500	0.09	16	150	X10 X11 X12
ZX500	500	85	800~1600	35	7.5	1.6	1500	5000	5500	0.068	16	150	X10
ZX500	500	80	1800~3000	35	7.5	1.8	1500	5000	5500	0.068	16	150	X10
ZX800	800	85	800~1600	40	12.1	1.6	1800	5000	5500	0.065	16	150	X13
ZX800	800	80	1800~3000	40	12.1	1.8	1800	5000	5500	0.065	16	150	X13
ZX860	860	85	1800~2700	60	13	1.4	1800	5000	7500	0.065	16	150	X14

FAQ

Q:What is a Rotating Diode?

A rotating diode is a special type of rectifier diode used in the brushless excitation system of synchronous generators (alternators). It is mounted on the rotating part of the machine (rotor) and plays a crucial role in converting AC (alternating current) to DC (direct current) to provide stable excitation to the generator's main field winding.
