PSND150E12 FRED fast recovery epitaxial diode

The PSND150E12 is a fast recovery epitaxial diode (FRED) module, designed for high-power applications such as rectification and switching. It features a double-diode configuration with a common anode and is rated for a maximum repetitive peak reverse voltage of 1200V.

Key Specifications

Voltage Rating: Maximum repetitive peak reverse voltage (VRRM) of 1200V.

Current Capability: Average forward current of 208A at a case temperature of 70°C.

Surge Current: Non-repetitive peak forward surge current of 2500A (10ms sine wave at 45°C).

Switching Speed: Typical reverse recovery time of 100 ns, which helps minimize switching losses in high-frequency applications.

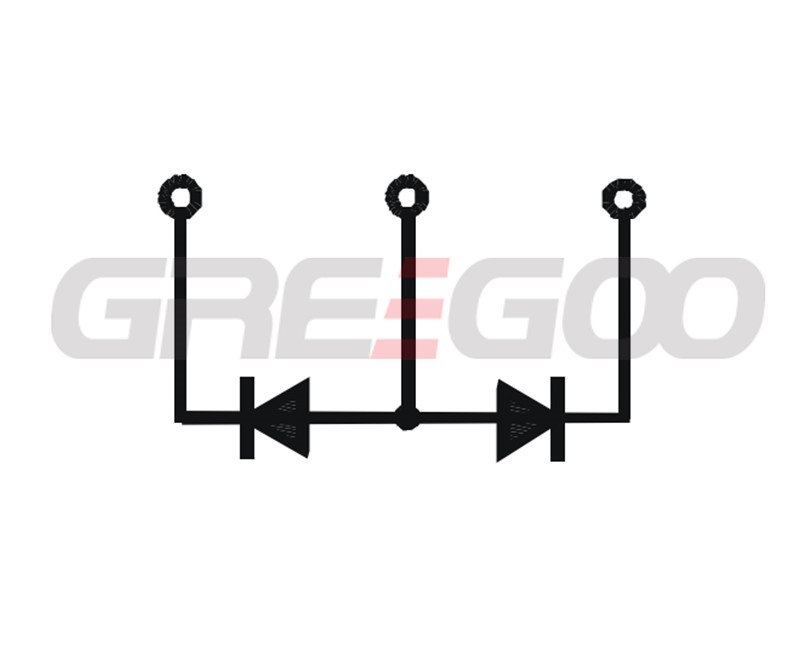

Configuration: Double diode module with a common anode structure.

Case Style: PWS-E package utilizing screw-type electrical and mechanical mounting.

Thermal Performance: Junction-to-case thermal resistance is rated at 0.42K/W per diode.

More option:
PSND150E10 for 1000V and PSND150E08 for 800V
