Soldering type

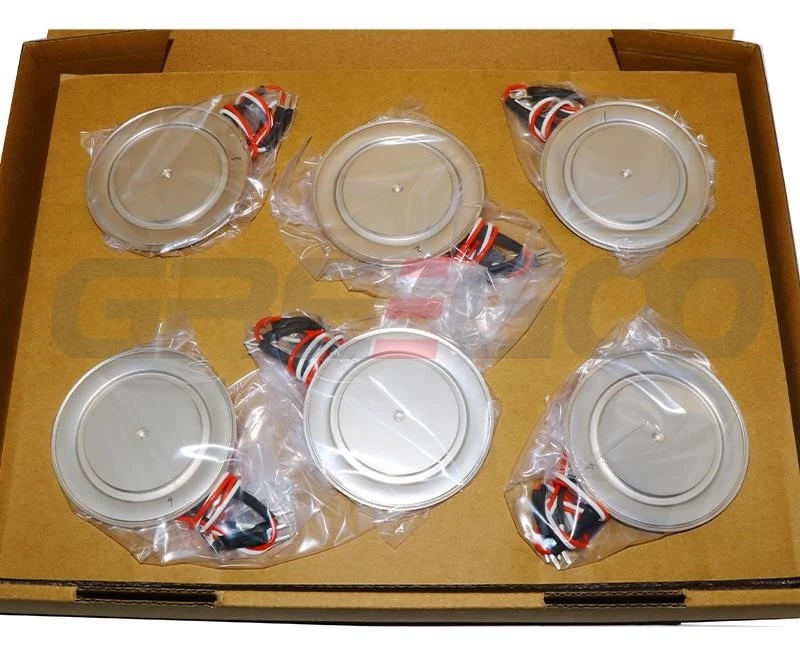

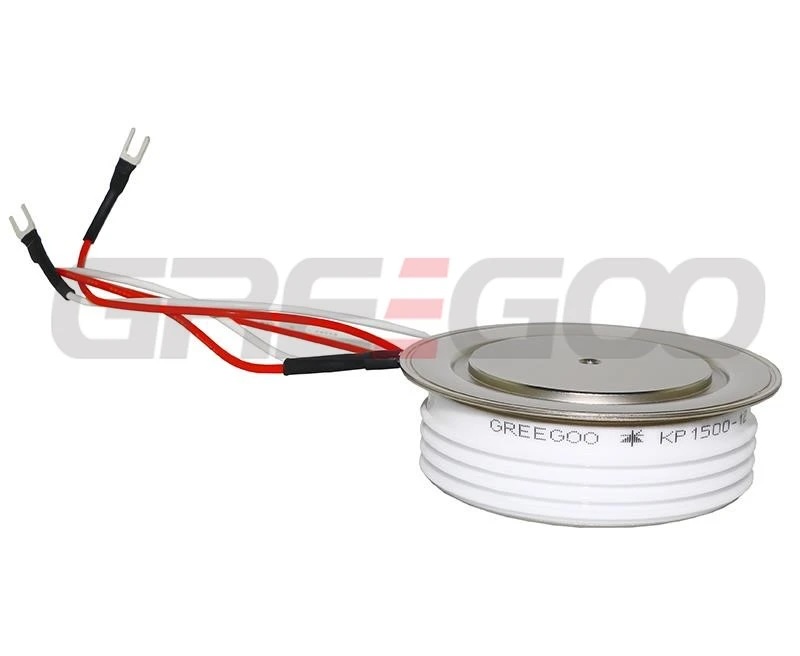

Phase Control Thyristor (KP Series)

Features

·All Diffused Structure

·Distributed gate design

·High dv/dt capability

·Low on-state voltage

·Low switching loss

Applications

·Traction and transmission

·HVDC、SVC

·High current power supply

·Soft-starter、Motor excitation

·Induction heating

Press Contact Type

Features

·Free-floating silicon technology

·Low on-state and switching losses

·Optimum power handling capability

·Distributed amplifying gate

Applications

·Traction and transmission

·HVDC

·SVC

·High current power supply

TYPE	I_T(AV)	T_C	V_DRM/V_RRM	I_TSM	I²t	V_TM @IT&TJ=25℃		Tjm	Rjc	Rc-s	F	m
TYPE	A	℃	V	@^TVJIM&10msA	A²s	V / A		℃	℃/W	℃/W	KN	Kg
Voltage up to 4200V
KP3170-**	3170	70	3400~4200	52000	1.3x10⁷	1.4	3000	125	0.008	0.002	70	1.45
KP4310-**	4310	70	3400~4200	60000	1.8x10⁷	1.3	3000	125	0.006	0.002	90	2.9
KP5580-**	5580	70	3400~4200	90000	4.0x10⁷	1.4	5000	125	0.004	0.001	120	3.6
Voltage up to 5200V
KP970-**	970	70	4400~5200	13500	9.1x10⁵	2.7	2000	125	0.022	0.005	22	0.6
KP2080-**	2080	70	4400~5200	29200	4.2x10⁶	1.6	2000	125	0.01	0.003	60	1.1
KP2780-**	2780	70	4400~5200	42000	8.8x10⁶	1.7	3000	125	0.008	0.002	70	1.45
KP3910-**	3910	65	4400~5200	55000	1.5x10⁷	1.5	3000	125	0.006	0.002	90	2.9
KP4750-**	4750	70	4400~5200	8700	3.7x10⁷	1.5	5000	110	0.004	0.001	120	3.6
Voltage up to 6600V
KP350-**	350	70	5800~6600	4500	1.0x10⁵	2.2	500	125	0.039	0.008	10	0.33
KP730-**	730	70	5800~6600	11800	6.9x10⁵	2.2	1000	125	0.022	0.005	22	0.6
KP1420-**	1420	70	5800~6600	22400	2.5x10⁶	2.1	1500	125	0.01	0.003	60	1.1
KP1800-**	1800	70	5400~6600	32000	5.1x10⁶	1.9	1600	125	0.008	0.002	70	1.45
KP2810-**	2810	70	5800~6600	45000	1.0x10⁷	2	3000	125	0.006	0.002	90	2.9
KP4250-**	4250	70	5800~6600	71400	2.5x10⁷	1.7	3000	110	0.004	0.001	120	3.6
Voltage up to 7200V
KP300-**	300	70	6800~7200	3400	5.8x10⁴	2.4	500	115	0.039	0.008	10	0.4
KP640-**	640	70	6800~7200	9000	4.0x10⁵	2.3	1000	115	0.022	0.005	22	0.65
KP1150-**	1150	70	6800~7200	18300	1.6x10⁶	2.4	1500	115	0.01	0.003	60	1.3
KP1510-**	1510	70	6800~7200	26000	3.3x10⁶	2	1600	115	0.008	0.002	70	1.85
KP2640-**	2640	70	6800~7200	40000	8.0x10⁶	1.5	1500	115	0.006	0.002	90	2.9
Voltage up to 8500V
KP270-**	270	70	7400~8500	2900	4.2x10⁴	2.8	500	115	0.045	0.008	10	0.4
KP580-**	580	70	7400~8500	6000	1.8x10⁵	2.6	1000	115	0.022	0.005	22	0.65
KP1080-**	1080	70	7400~8500	11300	6.3x10⁵	2.8	1500	115	0.01	0.003	60	1.3
KP1480-**	1480	70	7400~8500	17000	1.4x10⁶	2.1	1600	115	0.009	0.002	70	1.85

Soldering type

TYPE	I_T(AV)	T_C	V_DRM/V_RRM	I_TSM	I²t	V_TM @I_T&T_J=25℃		T_jm	R_jc	R_c-s	F	m
TYPE	A	℃	V	@T_VJIM&10msA	A²s	V / A		℃	℃/W	℃/W	KN	Kg
Voltage Up to 1800V
KP320-**	320	70	1200~1800	3840	7.4x10⁴	1.6	600	125	0.08	0.02	4	0.06
KP400-**	400	70	1200~1800	4800	1.1x10⁵	1.6	1200	125	0.045	0.01	13	0.2
KP600-**	600	65	1200~1800	7200	2.6x10⁵	1.65	1500	125	0.04	0.008	15	0.26
KP800-**	800	70	1200~1800	9600	4.6x10⁵	1.6	1500	125	0.039	0.008	15	0.26
KP1000-**	1000	70	1200~1800	12000	7.2x10⁵	1.45	1500	125	0.03	0.006	20	0.33
KP1200-**	1200	70	1200~1800	14400	10.0x10⁵	1.6	3000	125	0.022	0.005	25	0.46
KP1500-**	1500	70	1200~1800	18000	1.6x10⁶	1.55	3000	125	0.018	0.005	27	0.593
KP1800-**	1800	70	1200~1800	21600	2.3x10⁶	1.5	3000	125	0.015	0.0045	30	0.72
KP2500-**	2500	70	1200~1800	30000	4.5x10⁶	1.45	3000	125	0.0125	0.004	33	0.85
KP3000-**	3000	70	1200~1800	36000	6.5x10⁶	1.4	3000	125	0.01	0.003	35	1.1
KP4000-**	4000	65	1200~1800	48000	11.5x10⁶	1.35	3000	125	0.008	0.002	60	1.4
KP6000-**	6000	65	1200~1800	72000	26.0x10⁶	1.3	5000	125	0.006	0.0015	80	1.9
Voltage Up to 2400V
KP500-**	500	70	2000~2400	7000	2.5x10⁵	1.8	1500	125	0.039	0.008	15	0.26
KP800-**	800	70	2000~2400	11200	6.3x10⁵	1.8	2400	125	0.03	0.006	20	0.33
KP1000-**	1000	70	2000~2400	14000	7.2x10⁵	1.8	3000	125	0.022	0.005	25	0.46
KP1200-**	1200	70	2000~2400	14400	10.0x10⁵	1.8	3000	125	0.02	0.005	27	0.5
KP1500-**	1500	70	2000~2400	18000	1.6x10⁶	1.7	3000	125	0.015	0.0045	30	0.72
KP2100-**	2100	70	2000~2400	24000	2.9x10⁶	1.6	3000	125	0.0125	0.004	33	0.85
KP3000-**	3000	65	2000~2400	36000	6.5x10⁶	1.45	3000	125	0.01	0.003	35	1.1
KP5700-**	5700	65	2000~2400	68400	23.0x10⁶	1.3	5000	125	0.006	0.0015	80	1.9
Voltage Up to 3200V
KP500-**	500	70	2600~3200	7000	2.5x10⁵	2.15	1500	125	0.039	0.008	15	0.26
KP1000-**	1000	70	2600~3200	12000	7.2x10⁵	2.1	2500	125	0.022	0.005	25	0.46
KP1200-**	1200	70	2600~3200	14400	1.0x10⁶	2	3000	125	0.018	0.005	27	0.593
KP1700-**	1700	70	2600~3200	20400	2.1x10⁶	1.95	3000	125	0.015	0.0045	30	0.72
KP2000-**	2000	70	2600~3200	24000	2.9x10⁶	1.85	3000	125	0.0125	0.004	33	0.85
KP2500-**	2500	70	2600~3200	25200	3.2x10⁶	1.75	3000	125	0.011	0.003	35	1.5
KP3700-**	3700	65	2600~3200	44400	9.9x10⁶	1.65	3000	125	0.008	0.002	60	1.99
KP4500-**	4500	65	2600~3200	54000	1.5x10⁷	1.65	5000	125	0.006	0.0015	80	1.9
Voltage Up to 4200V
KP480-**	480	70	3600~4200	5760	1.7x10⁵	2.4	1200	125	0.039	0.008	15	0.26
KP1000-**	1000	70	3600~4200	12000	7.2x10⁵	2.45	2500	125	0.022	0.005	25	0.46
KP1200-**	1200	70	3600~4200	14400	1.0x10⁶	2.4	3000	125	0.016	0.005	28	0.65
KP1500-**	1500	70	3600~4200	18000	1.6x10⁶	2.5	3000	125	0.015	0.0045	30	0.72
KP1900-**	1900	70	3600~4200	22800	2.6x10⁶	2.3	3000	125	0.0125	0.004	33	0.85
KP2100-**	2100	65	3600~4200	24000	2.9x10⁶	2.2	3000	125	0.011	0.003	35	1.5
KP3000-**	3000	70	3600~4200	36000	6.5x10⁶	1.7	3000	125	0.008	0.002	60	1.99
KP3800-**	3800	70	3600~4200	45600	1.0x10⁷	1.9	5000	125	0.006	0.0015	80	1.9
