SKND205F06 Fast Diode Module

Home Products FRED ModuleSemikron Fast Diode ModuleSKND205F06 Fast Diode Module

Product Details

SKND205F06 Fast Diode Module

Features
• Very soft recovery over the whole current range
• Very short recovery times
• Low switching losses
• Heat transfer through ceramic isolated metal baseplate
• Materials and distances according to UL

Typical Applications
• Self-commutated inverters
• DC choppers
• AC motor speed control
• Inductive heating
• Uninterruptible power supplies
• Electronic welders
• General power switching applications

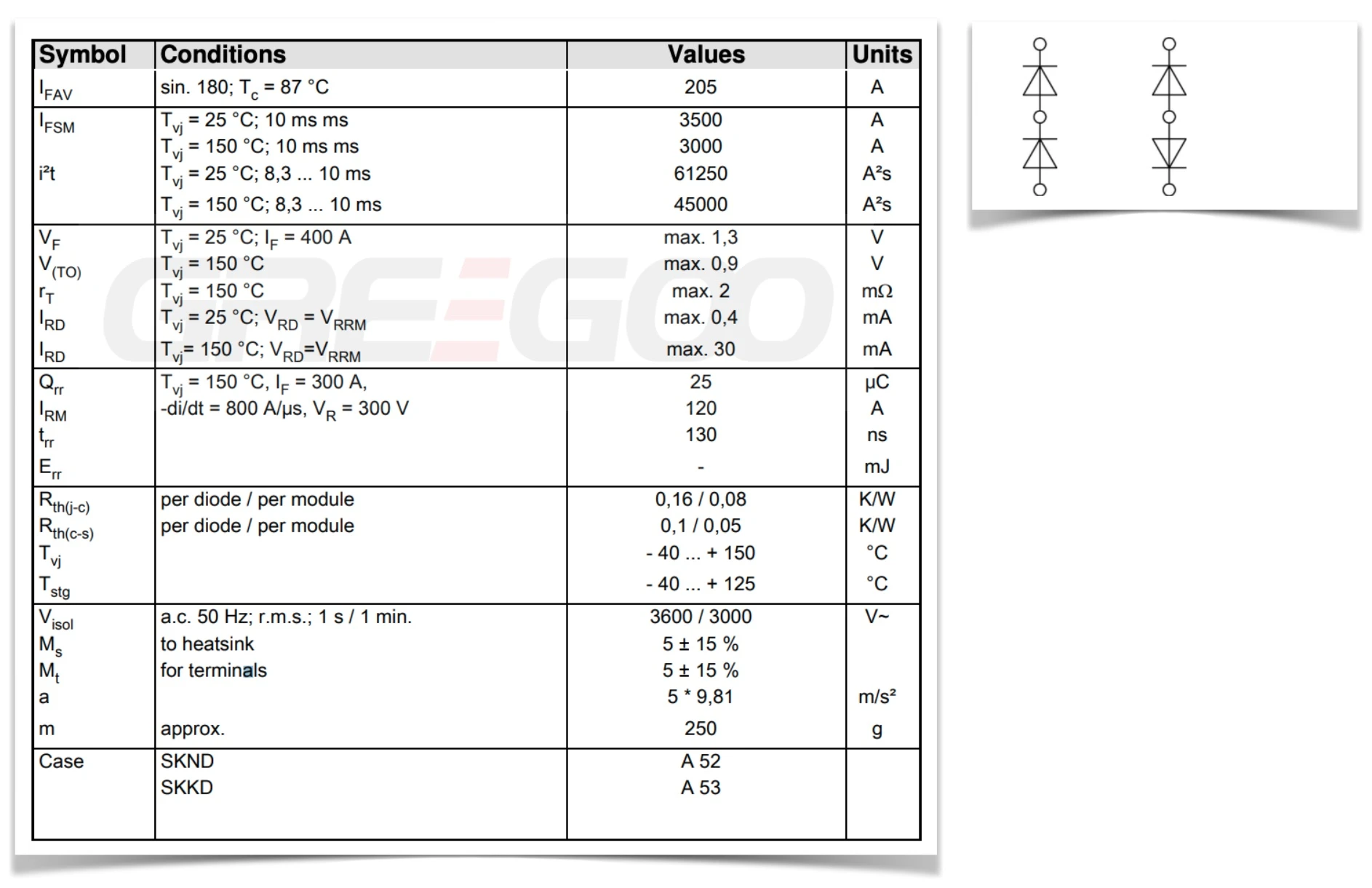

Specification

SKND205F06 FRED Module

SKND 205F06

Inquiry

Need more information?

*Title
*Name
Tel
*E-mail
Company
Country
*Message
*Code

SKKE600F12 Fast Diode Module

1200V 600A 106x62x37

SKKE310F12 Fast diode module

310A 1200V 94x34x30

SKKE330F17 Fast Diode Module

1.7kV 330A

SKKD205F06 Fast Diode Module

600V 205A 94x34x30
