Thyristor Diode Modules MCC255 MCD255 MDD255
Home Products Thyristor Diode ModuleBesting Selling Thyristor Diode ModulesThyristor Diode Modules MCC255 MCD255 MDD255
Product Details
Thyristor Diode Modules MCC255 MCD255 MDD255
Features and Advantages:
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current
Package:Y1
- Isolation Voltage: 4800 V~
- Industry standard outline
- RoHS compliant
- Height: 30 mm
- Base plate:DCB ceramic
- Reduced weight
- Advanced power cycling
| Model | MCD225-16IO1 |
| Max Repetitive RevFwd Blocking Voltage | 1600 |
| Average forward current | 220 |
| Case temperature | 85 |
| Max Surge Current Thy Amp | 8000 |
| dv/dt (V/µs) | 1000 |
| maximum virtual junction temperature | 140 |
| Threshold voltage for power loss calculation Thyristor | 0.79 |
| Slope Resistance Thyristor mOhm | 0.83 |
| Thermal resistance [junction-case] [Thy] (K/W) | 0.157 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Sample Request | No |
| Package Type | Y1-CU |
| Model | MDD225-16IO1 |
| Maximum Repetitive Blocking Voltage (V) | 1600 |
| Case temperature | 100 |
| Max Reverse Recovery Current | 9800 |
| maximum virtual junction temperature | 150 |
| Threshold voltage for power loss calculation | 0.8 |
| slope resistance for power loss calculation | 0.6 |
| Thermal resistance [junction-case] (K/W) | 0.14 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Average Continuous Current Rating | 270 |
| Sample Request | No |
| Package Type | Y1-CU |
| Model | MCC225-12IO1 |
| Max Repetitive RevFwd Blocking Voltage | 1200 |
| Average forward current | 250 |
| Case temperature | 85 |
| Max Surge Current Thy Amp | 9200 |
| dv/dt (V/µs) | 1000 |
| maximum virtual junction temperature | 140 |
| Threshold voltage for power loss calculation Thyristor | 0.8 |
| Slope Resistance Thyristor mOhm | 0.68 |
| Thermal resistance [junction-case] [Thy] (K/W) | 0.14 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Sample Request | No |
| Package Type | Y1-CU |

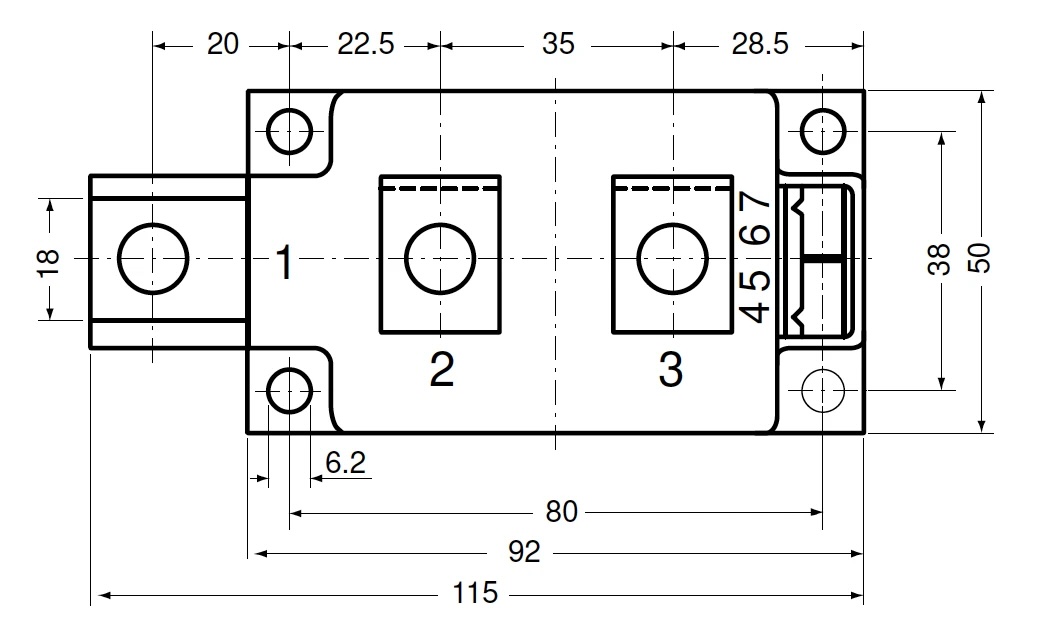

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
