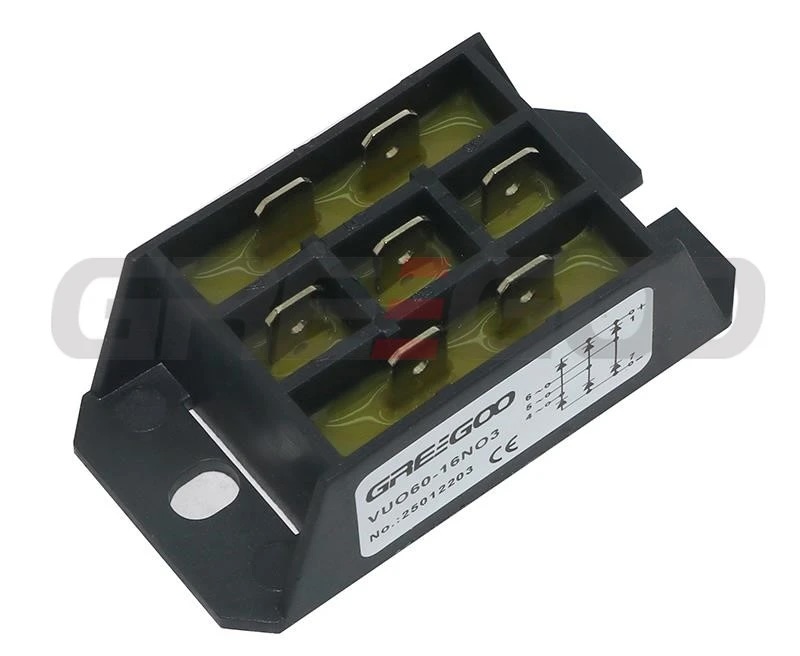

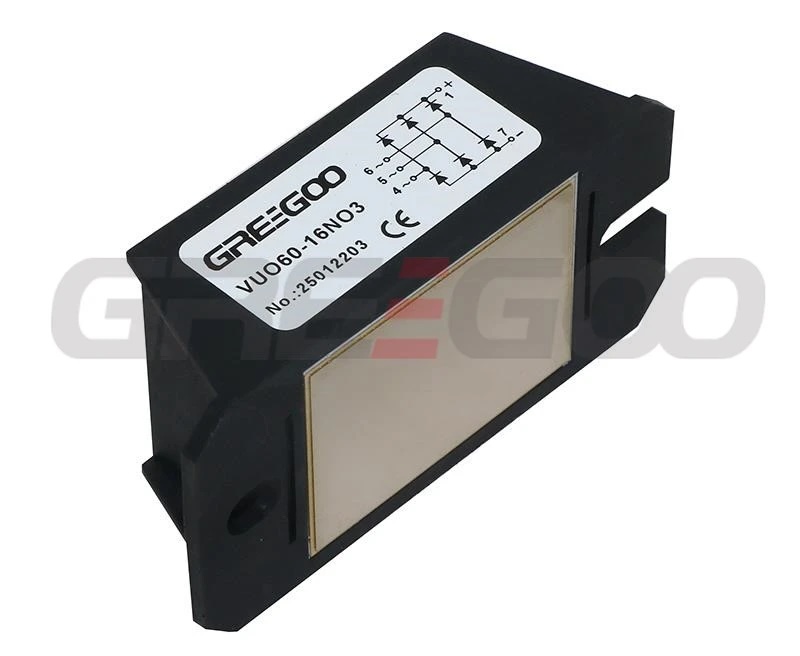

VUO60-12NO3 3 phase Rectifier Bridge

Features / Advantages

Package with DCB ceramic
Improved temperature and power cycling
Planar passivated chips
Very low forward voltage drop
Very low leakage current

Application

Diode for main rectification
For three phase bridge configurations
Supplies for DC power equipment
Input rectifiers for PWM inverter
Battery DC power supplies
Field supply for DC motors

Package: FO-F

Isolation Voltage: 3600 V~

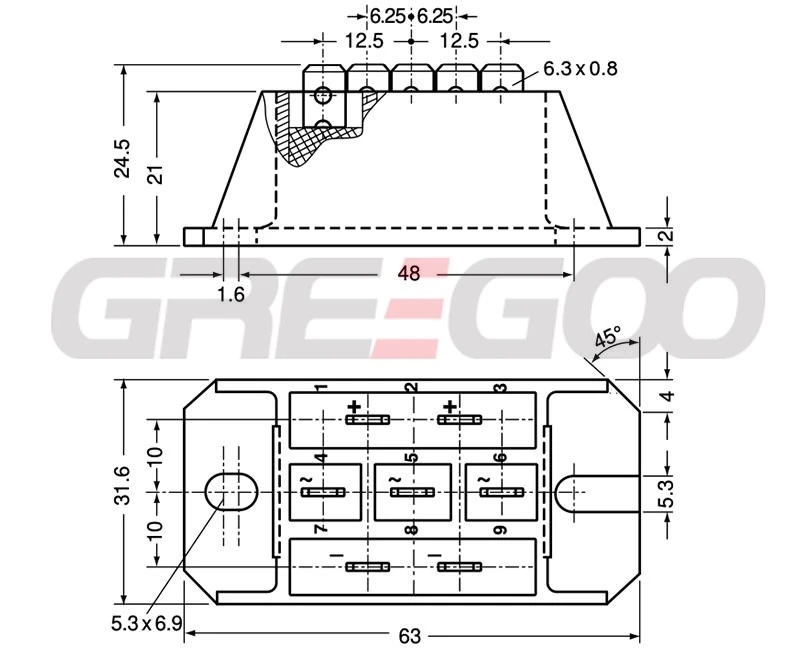

Industry standard outline
RoHS compliant
¼" fast-on terminals
Easy to mount with two screws
Base plate: DCB ceramic
Reduced weight
Advanced power cycling
