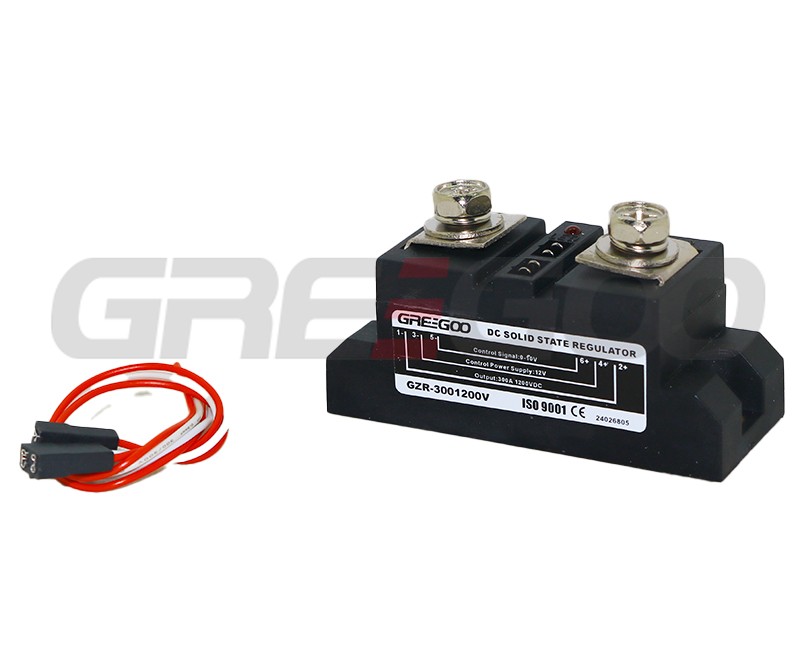

DC 10 to 2000A, 24 to 1200VDC DC Solid State Regulators

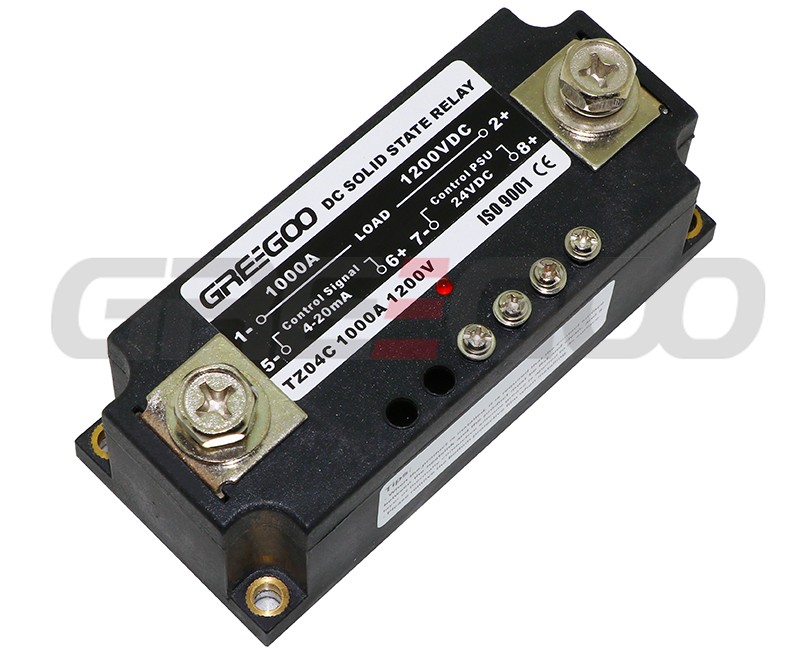

DC 10 to 2000A, 24 to 1200VDC DC Solid State Regulators
4-20mA, 0-10Vdc or 10K potentiometer control
Part numbers
DC Solid State Voltage Regulator
Part Numbers Max.Current Max. Voltage Control Signal Casing
GZR-150100A 150A 100VDC 4-20mA M-2D
GZR-200100A 200A 100VDC 4-20mA M-2D
GZR-300100A 300A 100VDC 4-20mA M-2D
GZR-400100A 400A 100VDC 4-20mA M-2D
GZR-500100A 500A 100VDC 4-20mA M-2D
GZR-150100V 150A 100VDC 0-10V M-2D
GZR-200100V 200A 100VDC 0-10V M-2D
GZR-300100V 300A 100VDC 0-10V M-2D
GZR-400100V 400A 100VDC 0-10V M-2D
GZR-500100V 500A 100VDC 0-10V M-2D
GZR-150100P 150A 100VDC Pot 10 kΩ M-2D
GZR-200100P 200A 100VDC Pot 10 kΩ M-2D
GZR-300100P 300A 100VDC Pot 10 kΩ M-2D
GZR-400100P 400A 100VDC Pot 10 kΩ M-2D
GZR-500100P 500A 100VDC Pot 10 kΩ M-2D
GZR-150200A 150A 200VDC 4-20mA M-2D
GZR-200200A 200A 200VDC 4-20mA M-2D
GZR-300200A 300A 200VDC 4-20mA M-2D
GZR-400200A 400A 200VDC 4-20mA M-2D
GZR-150200V 150A 200VDC 0-10V M-2D
GZR-200200V 200A 200VDC 0-10V M-2D
GZR-300200V 300A 200VDC 0-10V M-2D
GZR-400200V 400A 200VDC 0-10V M-2D
GZR-150200P 150A 200VDC Pot 10 kΩ M-2D
GZR-200200P 200A 200VDC Pot 10 kΩ M-2D
GZR-300200P 300A 200VDC Pot 10 kΩ M-2D
GZR-400200P 400A 200VDC Pot 10 kΩ M-2D
GZR-150600A 150A 600VDC 4-20mA M-2D
GZR-200600A 200A 600VDC 4-20mA M-2D
GZR-300600A 300A 600VDC 4-20mA M-2D
GZR-400600A 400A 600VDC 4-20mA M-2D
GZR-500600A 500A 600VDC 4-20mA M-2D
GZR-150600V 150A 600VDC 0-10V M-2D
GZR-200600V 200A 600VDC 0-10V M-2D
GZR-300600V 300A 600VDC 0-10V M-2D
GZR-400600V 400A 600VDC 0-10V M-2D
GZR-500600V 500A 600VDC 0-10V M-2D
GZR-150600P 150A 600VDC Pot 10 kΩ M-2D
GZR-200600P 200A 600VDC Pot 10 kΩ M-2D
GZR-300600P 300A 600VDC Pot 10 kΩ M-2D
GZR-400600P 400A 600VDC Pot 10 kΩ M-2D
GZR-500600P 500A 600VDC Pot 10 kΩ M-2D
GZR-1501200A 150A 1200VDC 4-20mA M-2D
GZR-2001200A 200A 1200VDC 4-20mA M-2D
GZR-3001200A 300A 1200VDC 4-20mA M-2D
GZR-4001200A 400A 1200VDC 4-20mA M-2D
GZR-5001200A 500A 1200VDC 4-20mA M-2D
GZR-1501200V 150A 1200VDC 0-10V M-2D
GZR-2001200V 200A 1200VDC 0-10V M-2D
GZR-3001200V 300A 1200VDC 0-10V M-2D
GZR-4001200V 400A 1200VDC 0-10V M-2D
GZR-5001200V 500A 1200VDC 0-10V M-2D
GZR-1501200P 150A 1200VDC Pot 10 kΩ M-2D
GZR-2001200P 200A 1200VDC Pot 10 kΩ M-2D
GZR-3001200P 300A 1200VDC Pot 10 kΩ M-2D
GZR-4001200P 400A 1200VDC Pot 10 kΩ M-2D
GZR-5001200P 500A 1200VDC Pot 10 kΩ M-2D
Circuit drawing

DC Solid State Voltage Regulator Circuit Drawing

Dimensions

m-2d casing outline dimensions

Selection guidelines

Selection guidelines:

When selecting our product, it is important to consider the nature of the load and leave appropriate margins for current and voltage levels. For resistive loads, choose the current based on 2-4 times the load current and the voltage based on 2-3 times the load voltage. For inductive or capacitive loads, select the current based on 4-8 times the load current and the voltage based on 4-5 times the load voltage.

To ensure optimal performance, take into account the relationship between the load current and ambient temperature. If the ambient temperature is high or the heat dissipation conditions are poor, it is recommended to increase the current capacity. To prevent short circuits in the load circuit during use, it is essential to include a fast circuit breaker or a fast fuse in the load circuit.

When dealing with inductive loads, it is crucial to include a freewheeling diode in parallel with the load or a voltage-dependent resistor and RC absorption circuit at the output end to prevent damage to the transistor from over-voltage. The voltage-dependent resistor (MOV) should be selected according to 1-2 times the power supply voltage, and the RC value should be selected according to the load power.

During installation, make sure that the contact surface between the heat sink and the product is flat and smooth. Apply a layer of thermal grease to its surface to optimize heat dissipation. Finally, tighten the screw with a flat washer and a spring washer symmetrically to secure it in place. We hope these guidelines help you to make the best use of our product.
