SKKD series diode modules
Modules SKKD Semikron are non-controllable rectifiers for AC/DC converters in monolithic design with dual topology of semiconductors (two switches): diode-diode type. Used in DC and AC circuits with loads to 701A and reverse pulse voltages up to 2200V.
SKKD rectifier diode modules are used in various power equipment - power and control units, power regulators, converters, controllers, welding equipment, and as rectifiers for AC converters.
| Frame | Type | IFAV (Tcase) |
VBRM | IFSM | I²t | V(TO) | rT | Tvj max |
Rthj-c) (per chip) |

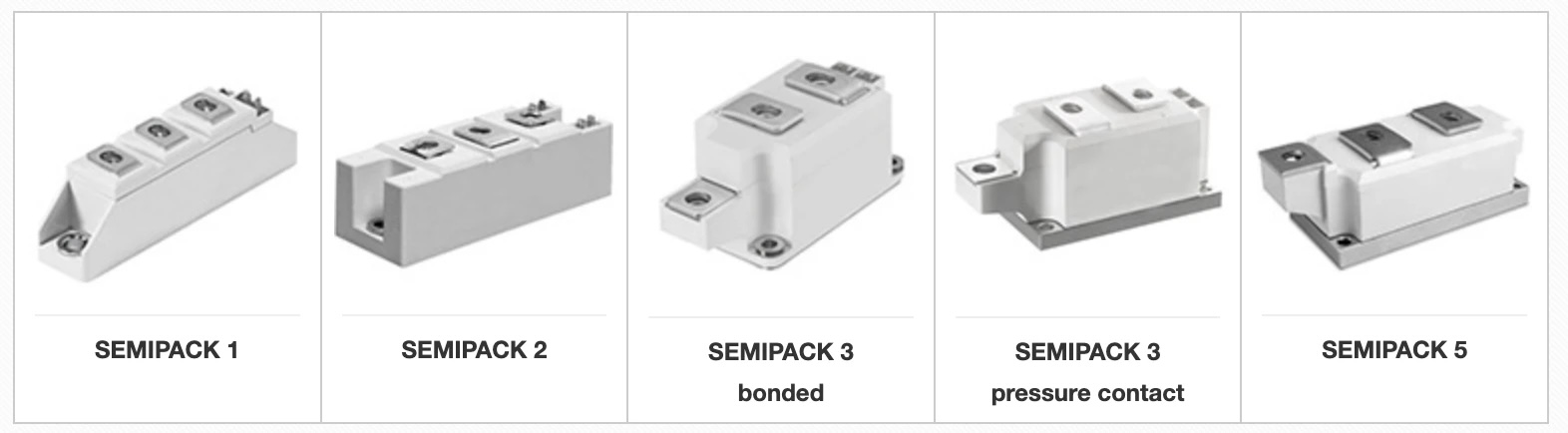

W | Package, Dimensions LxBxH |
| A | V | A | kA².s | V | mΩ | ℃ | C-W | g | mm | ||
| SKKD26 | SKKD26-12 | 31 (85℃) 26 (93℃) |
1200-1600 | 480 | 1.15 | 0.85 | 6.0 | 125 | 1.00 | 95 | SEMIPACK1 93x20x30 |
| SKKD26-14 | |||||||||||
| SKKD26-16 | |||||||||||
| SKKD46 | SKKD46-08 | 47 (85℃) 45 (86℃) |
800-1800 | 600 | 1.80 | 0.85 | 5.0 | 125 | 0.06 | 95 | SEMIPACK1 93x20x30 |
| SKKD46-12 | |||||||||||
| SKKD46-14 | |||||||||||
| SKKD46-16 | |||||||||||
| SKKD46-18 | |||||||||||

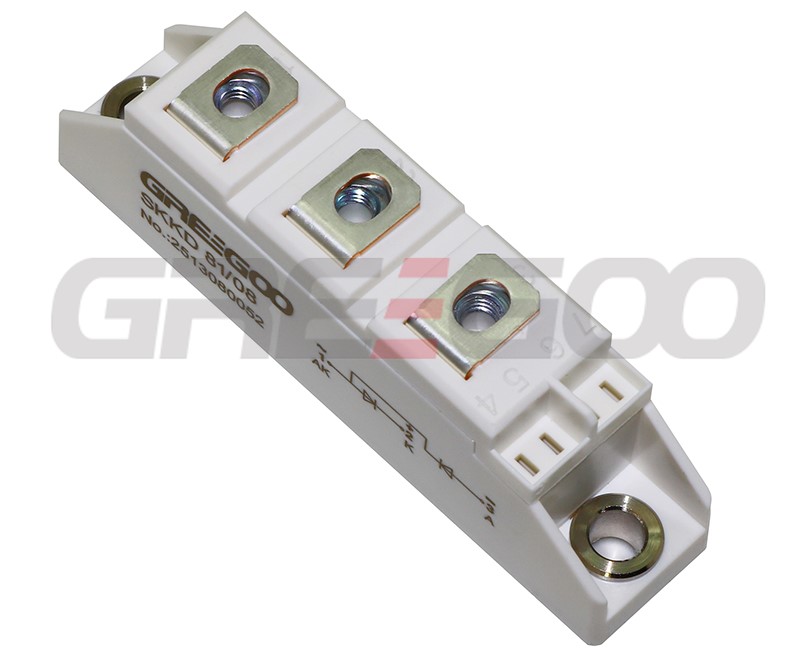

| SKKD81 | SKKD81-08 | 82(85℃) 80(87℃) |
800-1800 | 1750 | 15 | 0.85 | 1.8 | 125 | 0.40 | 95 | SEMIPACK1 93x20x30 |
| SKKD81-12 | |||||||||||
| SKKD81-14 | |||||||||||
| SKKD81-16 | |||||||||||
| SKKD81-18 | |||||||||||
| SKKD81 H4 | SKKD81-20 H4 | 82(85℃) 80(87℃) |
2000-2200 | 1750 | 15 | 0.85 | 1.8 | 125 | 0.40 | 95 | SEMIPACK1 93x20x30 |
| SKKD81-22 H4 | |||||||||||

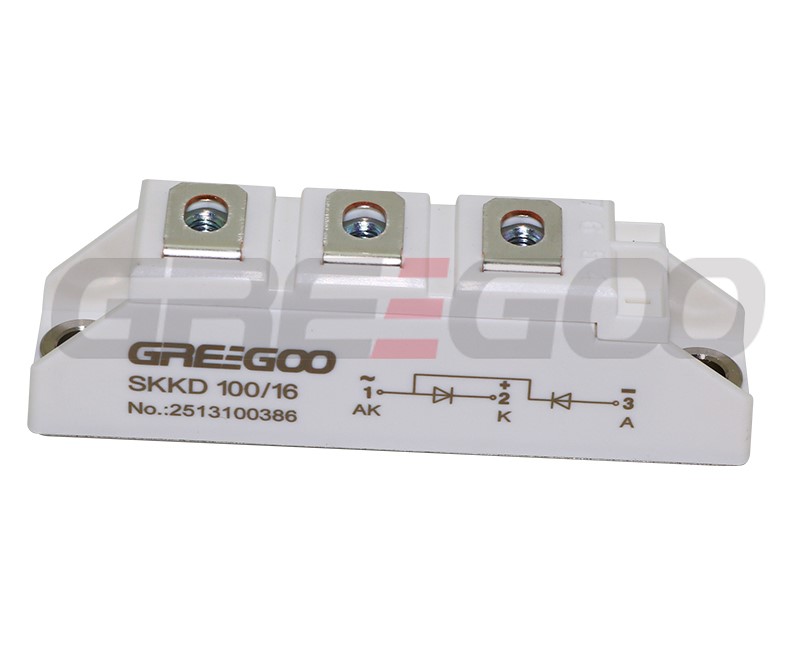

| SKKD100 | SKKD100-04 | 100(85℃) 67(100℃) |
400-1800 | 2000 | 20 | 0.85 | 1.3 | 125 | 0.35 | 95 | SEMIPACK1 93x20x30 |
| SKKD100-06 | |||||||||||
| SKKD100-08 | |||||||||||
| SKKD100-12 | |||||||||||
| SKKD100-14 | |||||||||||
| SKKD100-16 | |||||||||||
| SKKD100-18 | |||||||||||

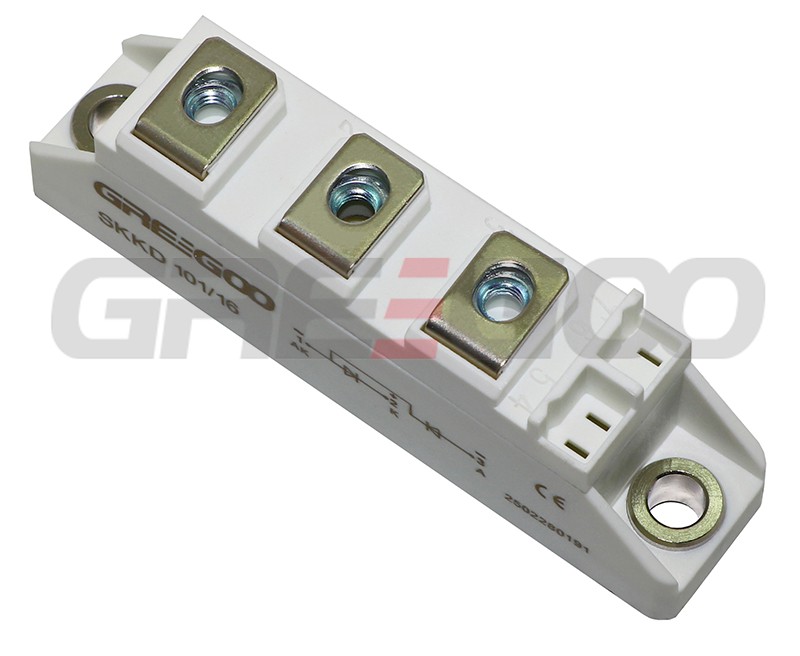

| SKKD101 | SKKD101-16 | 134(85℃) 101(100℃) |
1600 | 2000 | 20 | 0.87 | 2.45 | 130 | 0.19 | 75 | SEMIPACK1 93x20x30 |
| SKKD152 H1 | SKKD152-16 H1 | 171(85℃) 132(100℃) |
1600 | 4500 | 101 | 0.82 | 1.35 | 135 | 0.20 | 165 | SEMIPACK 2 94x34x30 |

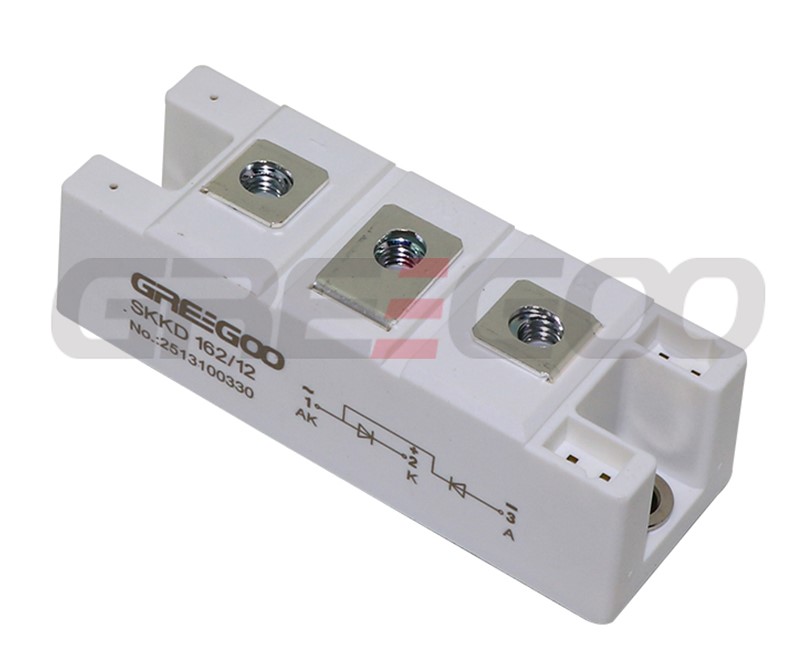

| SKKD162 | SKKD162-08 | 195(85℃) 160(95℃) |
800-2200 | 5000 | 125 | 0.85 | 1.20 | 125 | 0.18 | 165 | SEMIPACK2 94x34x30 |
| SKKD162-12 | |||||||||||
| SKKD162-14 | |||||||||||
| SKKD162-16 | |||||||||||
| SKKD162-18 | |||||||||||
| SKKD162-20 H4 | |||||||||||
| SKKD162-22 H4 | |||||||||||
| SKKD212 | SKKD212-12 | 212(85℃) 165(100℃) |
1200-1800 | 5500 | 151 | 0.75 | 1.05 | 135 | 0.18 | 165 | SEMIPACK 2 94x34x30 |
| SKKD212-14 | |||||||||||
| SKKD212-16 | |||||||||||
| SKKD212-18 | |||||||||||
| SKKD250 | SKKD250-16 | 255(85℃) 199(100℃) |
1600-1800 | 6000 | 180 | 0.77 | 1.00 | 135 | 0.13 | 165 | SEMIPACK2 94x34x30 |
| SKKD250-18 | |||||||||||

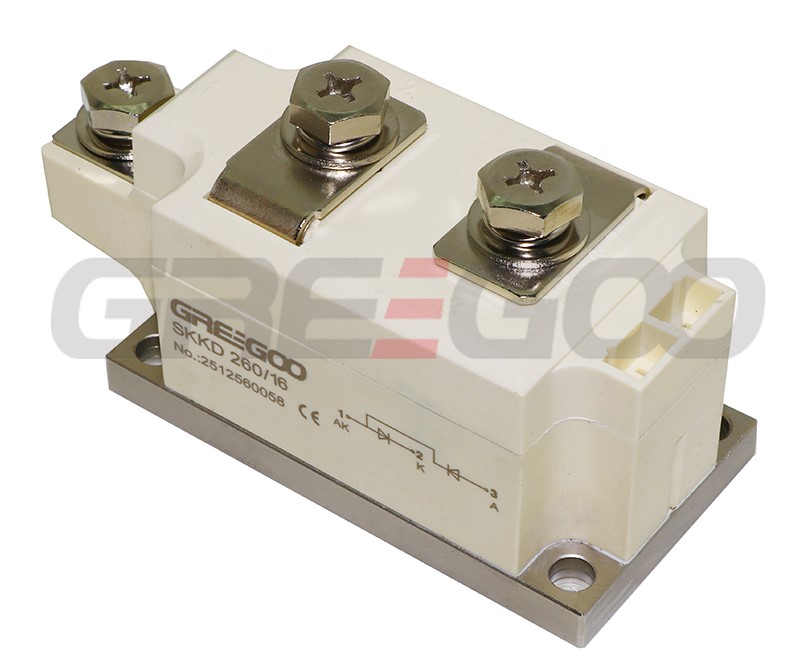

| SKKD260 | SKKD260-08 | 260(85℃) 185(100℃) |
800-2200 | 10000 | 500 | 0.90 | 0.37 | 130 | 0.14 | 600 | SEMIPACK 3 115x50x52 |
| SKKD260-12 | |||||||||||
| SKKD260-14 | |||||||||||
| SKKD260-16 | |||||||||||
| SKKD260-18 | |||||||||||
| SKKD260-20 H4 | |||||||||||
| SKKD260-22 H4 | |||||||||||

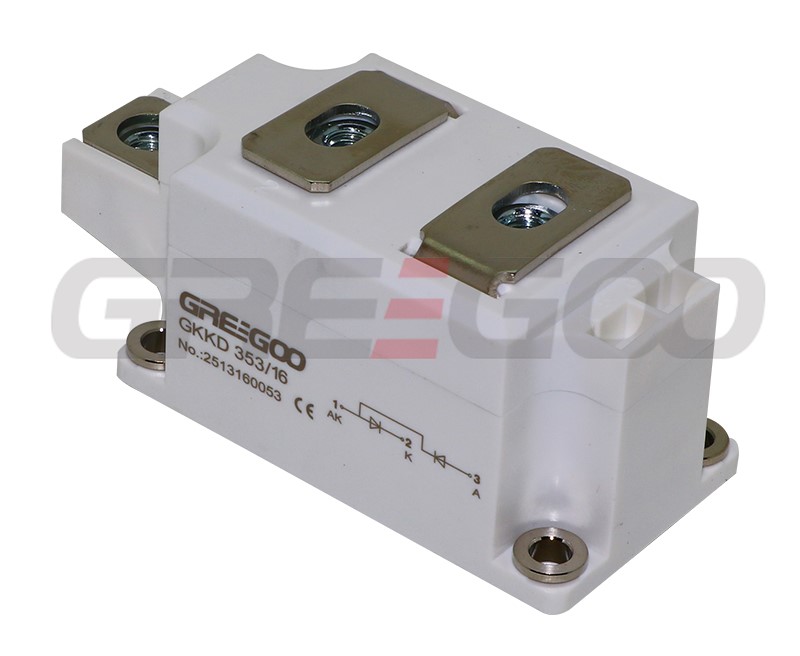

| SKKD353 | SKKD353-12 | 350(85℃) 260(100℃) |
1200-1800 | 9500 | 451 | 0.84 | 0.75 | 130 | 0.09 | 600 | SEMIPACK 3 115x50x52 |
| SKKD353-14 | |||||||||||
| SKKD353-16 | |||||||||||
| SKKD353-18 | |||||||||||
| SKKD380 | SKKD380-08 | 380(100℃) | 800-2200 | 10000 | 500 | 0.80 | 0.35 | 150 | 0.11 | 600 | SEMIPACK 3 115x50x52 |
| SKKD380-12 | |||||||||||
| SKKD380-14 | |||||||||||
| SKKD380-16 | |||||||||||
| SKKD380-18 | |||||||||||
| SKKD380-20 H4 | |||||||||||
| SKKD380-22 H4 | |||||||||||
| SKKD700 | SKKD700-08 | 700(100℃) | 800-2200 | 22000 | 2420 | 0.75 | 0.20 | 150 | 0.065 | 1420 | SEMIPACK 5 150x60x52 |
| SKKD700-12 | |||||||||||
| SKKD700-14 | |||||||||||
| SKKD700-16 | |||||||||||
| SKKD700-18 | |||||||||||
| SKKD700-20 H4 | |||||||||||
| SKKD700-22 H4 | |||||||||||
| SKKD701 | SKKD701-12 | 701(100℃) 820(85℃) |
1200-2200 | 22500 | 2530 | 0.70 | 0.28 | 160 | 0.072 | 1400 | SEMIPACK 5 150x60x52 |
| SKKD701-16 | |||||||||||
| SKKD701-18 | |||||||||||
| SKKD701-22 H4 |
Need more information?
Contact us to request pricing, availability and customization options.
