Product Details

IP20 Solid State Relays (Crouzet type)

EM Series panel mount single phase AC output Solid State Relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.

››Output current of 10, 25, 50, 75, 100 and 125 Amps

››Output voltage 24-480 Vac

››Control voltage of 4-32 Vdc, 18-36 Vac/dc, 40-265 Vac and 90-260 Vac

››Zero cross or instantaneous (resistive or inductive loads)

››Integrated IP20 touch-safe removable covers

››Built-in overvoltage protection (only Zero Cross)

››LED input status indicator

Part numbers

Model No.	Output Current	Output Voltage	Input Voltage	Switching	Output protection
EM10DZL	10A	24-480VAC	4-32 VDC	Zero Cross	TVS
EM10CZL	10A	24-480VAC	18-36V AC/DC
EM10AZL	10A	24-480VAC	40-265 VAC

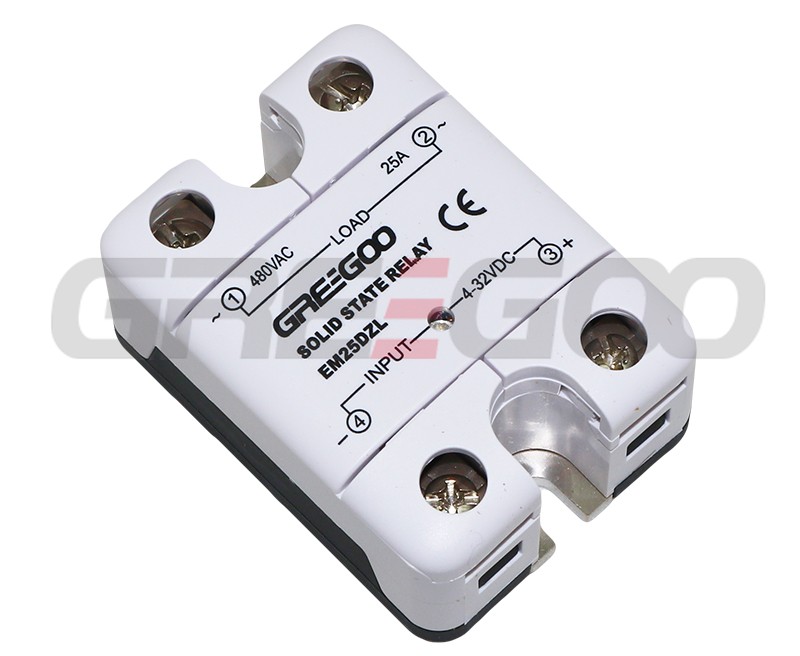

EM25DZL	25A	24-480VAC	4-32 VDC
EM25CZL	25A	24-480VAC	18-36V AC/DC
EM25AZL	25A	24-480VAC	40-265 VAC
EM40DZL	40A	24-480VAC	4-32 VDC
EM40CZL	40A	24-480VAC	18-36V AC/DC
EM40AZL	40A	24-480VAC	40-265 VAC

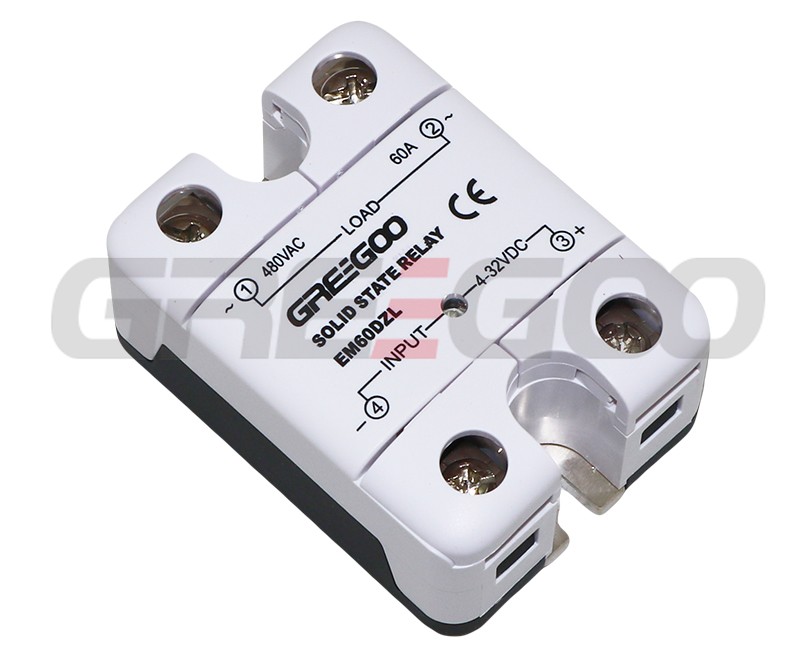

EM60DZL	60A	24-480VAC	4-32 VDC

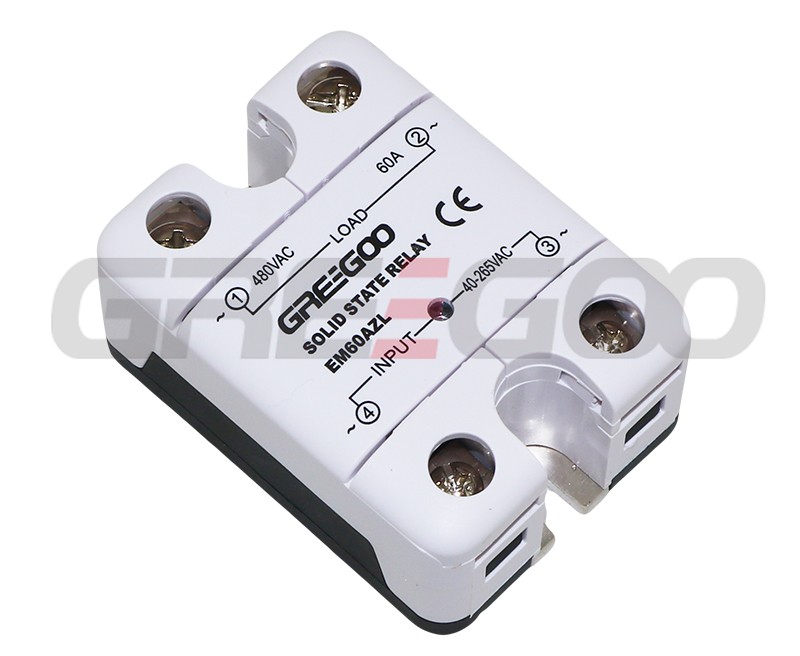

EM60AZL	60A	24-480VAC	40-265 VAC

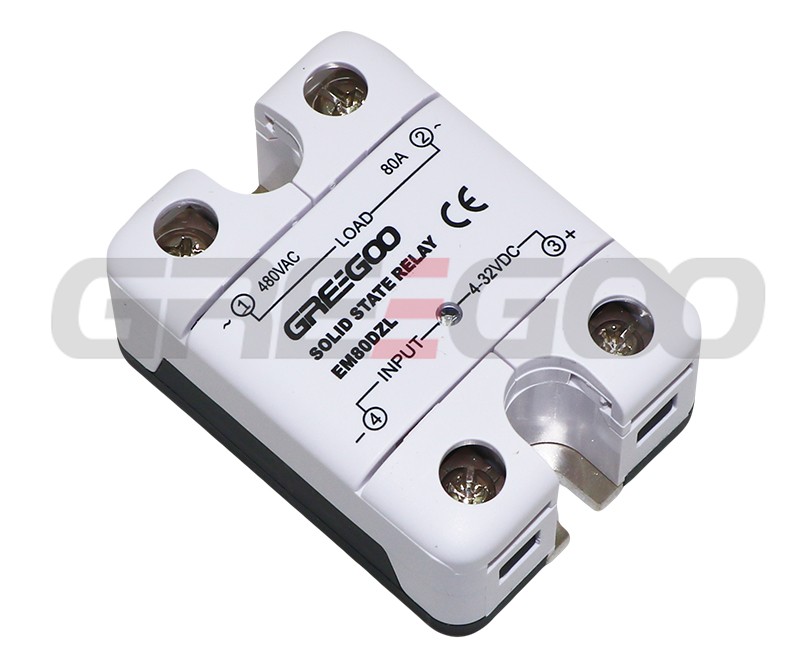

EM80DZL	80A	24-480VAC	4-32 VDC

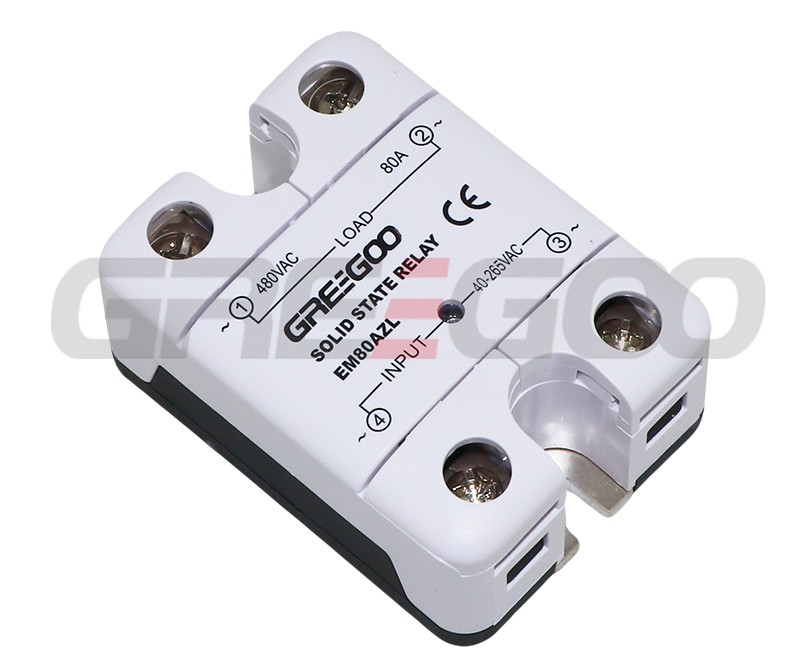

EM80AZL	80A	24-480VAC	40-265 VAC

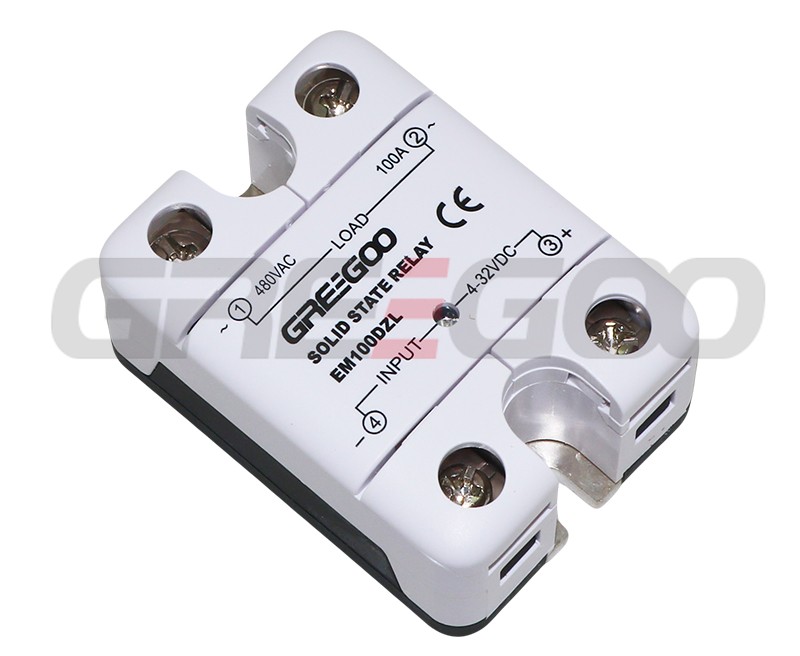

EM100DZL	100A	24-480VAC	4-32 VDC

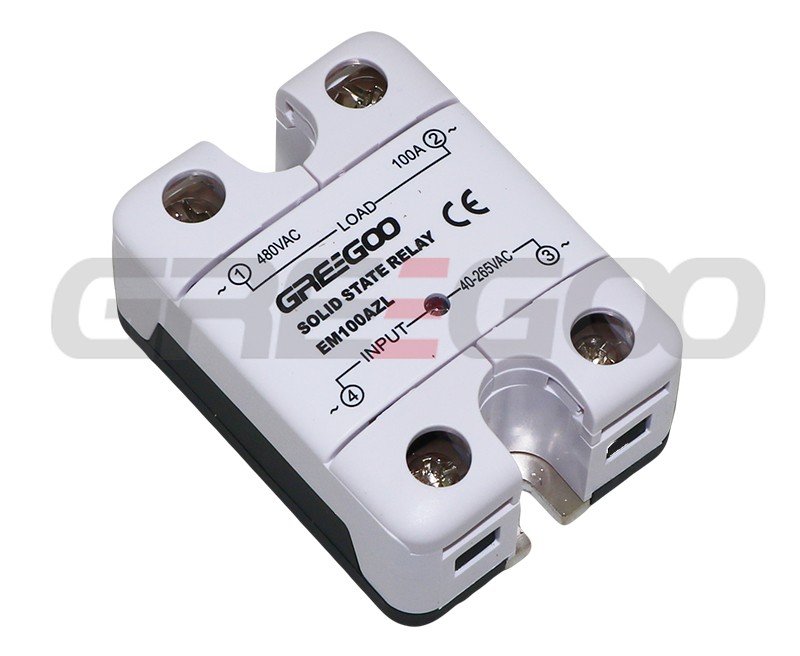

EM100AZL	100A	24-480VAC	40-265 VAC

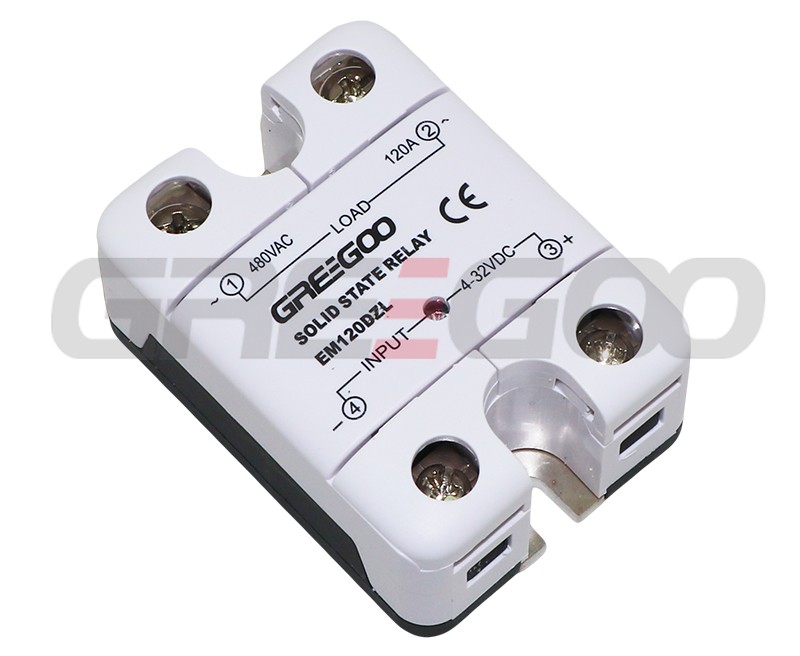

EM120DZL	120A	24-480VAC	4-32 VDC

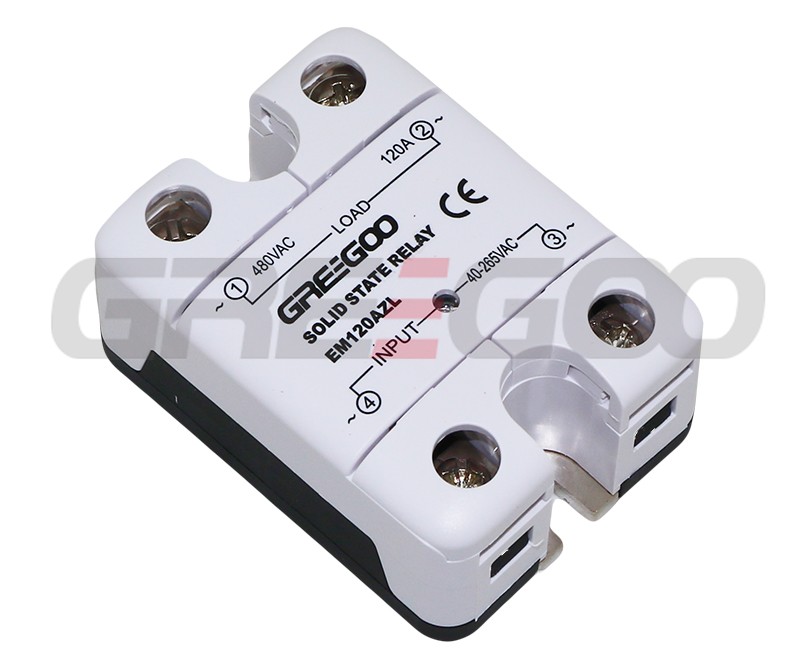

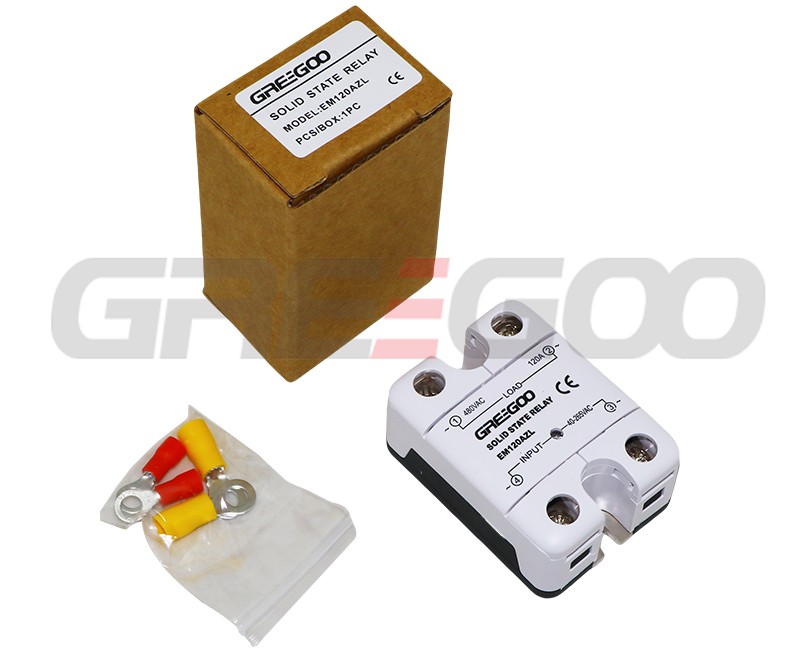

EM120AZL	120A	24-480VAC	40-265 VAC
EM25DRL	25A	24-480VAC	4-32 VDC	Random	RC Snubber
EM25ARL	25A	24-480VAC	90-260 VAC
EM40DRL	40A	24-480VAC	4-32 VDC
EM40ARL	40A	24-480VAC	90-260 VAC
EM60DRL	60A	24-480VAC	4-32 VDC
EM60ARL	60A	24-480VAC	90-260 VAC
EM80DRL	80A	24-480VAC	4-32 VDC
EM80ARL	80A	24-480VAC	90-260 VAC
EM100DRL	100A	24-480VAC	4-32 VDC
EM100ARL	100A	24-480VAC	90-260 VAC
EM120DRL	120A	24-480VAC	4-32 VDC
EM120ARL	120A	24-480VAC	90-260 VAC

FAQ

Q:How to confirm the current and voltage of the solid state relay against inductive load and resistive load?

A margin should be left when selecting the voltage and current of the solid state relay. For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

Q:Selection Guide for Solid State Relays

A margin should be left when selecting the voltage and current of the solid state relay.

For resistive load: the current is selected according to 2.5~4 times the load current, and the voltage is selected according to 2~2.5 times the load power. Inductive load: current is selected according to 3-7 times load current, voltage is selected according to 2.5-3 times load voltage.

According to the relationship between load current and ambient temperature, when the ambient temperature is high or heat dissipation conditions are not good, the current capacity of the solid state relay should be increased accordingly.
In order to prevent the product from short-circuiting during use, it is necessary to connect a fast circuit breaker or a fast fuse in series with the product in the load circuit.

For inductive loads, a freewheeling diode must be connected to both ends of the load, and a varistor must be connected to the output end (the varistor (MOV) is selected according to 1~1.5 times of the power supply voltage) to prevent the high voltage generated during switching from damaging the solid-state switch.

When the product is installed, it is required that the contact surface between the heatsink and the product must be flat and clean, and a layer of thermally conductive silicone grease is applied to its surface, and then finally the screws set with flat washers and Spring washersare tightened symmetrically to fix.
