Product Details

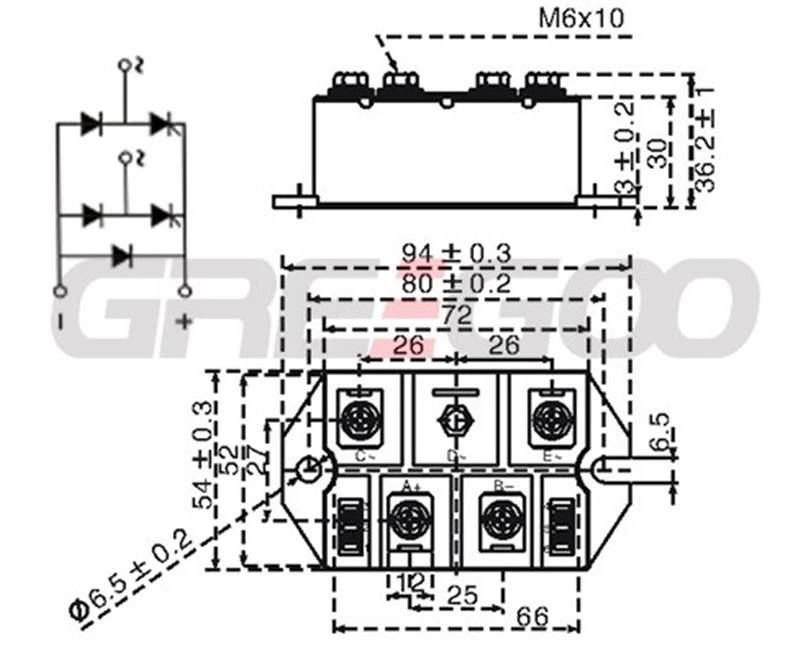

Single phase half controlled bridge rectifier 160A to 200A
| MODEL | IFAV | VFM | VRRM | IRRM | IFSM |
| A | V | V | mA | A | |
| MFQ-160-08 | 160 | 1.6 | 800 | 10 | 1600 |
| MFQ-160-12 | 160 | 1.6 | 1200 | 10 | 1600 |
| MFQ-160-16 | 160 | 1.6 | 1600 | 10 | 1600 |
| MFQ-160-18 | 160 | 1.6 | 1800 | 10 | 1600 |
| MFQ-200-08 | 200 | 1.6 | 800 | 15 | 1800 |
| MFQ-200-12 | 200 | 1.6 | 1200 | 15 | 1800 |
| MFQ-200-16 | 200 | 1.6 | 1600 | 15 | 1800 |
| MFQ-200-18 | 200 | 1.6 | 1800 | 15 | 1800 |
