IXYS Thyristor Diode Module (W102 package)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleIXYS Thyristor Diode Module (W102 package)
Specification

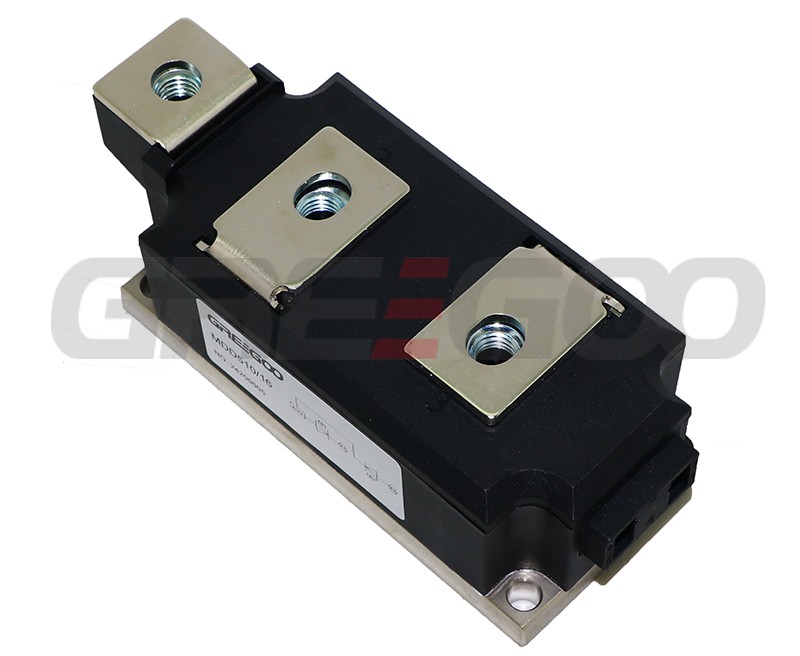

IXYS Thyristor Diode Module (W102 package)
| Model | IFAV （A） |
Tc | VRRM | IFSM | I²t | V(TO) | rT | Tvj max | Rth(j-c) | Weight | Package | Size (L×B×H) |
| No. | ℃ | V | A | kA2·s | V | mΩ | ºC | ºC/W | g | mm | ||
| MDD410-24N3 | 360 | 100 | 2400 | 7800 | 304 | 0.85 | 0.45 | 150 | 0.11 | 800 | W102 | 115x50x52 |
| MDD410-28N3 | 360 | 100 | 2800 | 7800 | 304 | 0.85 | 0.45 | 150 | 0.11 | 800 | W102 | 115x50x52 |
| MDD510-18N3 | 445 | 100 | 1800 | 10900 | 594 | 0.75 | 0.25 | 150 | 0.11 | 800 | W102 | 115x50x52 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
