3 Phase Digital Thyristor Controller 90A and 100A

Product Features
◎ Utilizes MCU embedded microcontroller control technology and PID closed-loop control for 100% linear output.
◎ Three-phase full-control 6-pulse output, compatible with transformer loads or loads with neutral wire connection.
◎ Dual-channel input signal design: 0~5V, 0~10V, 4~20mA, or potentiometer limit, with direct switching.
◎ Fast-acting fuse combined with electronic transformer for dual overcurrent protection.
◎ Digital display for input, output, current, voltage, power, with one-key switching.

Part Numbers

Part Numbers	Phase	Input voltage	Current	Load Power (KW)		Weight (kg)	Control mode
Part Numbers	Phase	Input voltage	Current	220V	380V	Weight (kg)	Control mode

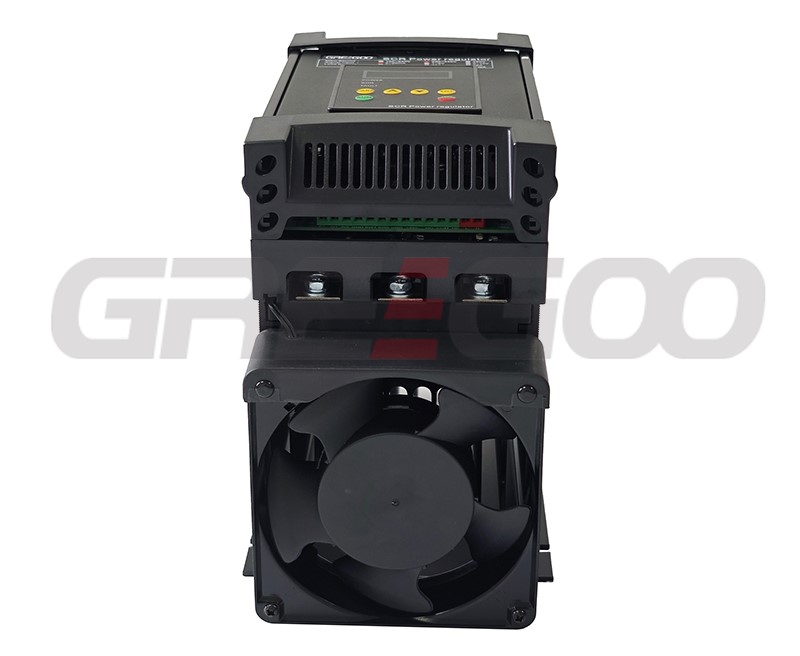

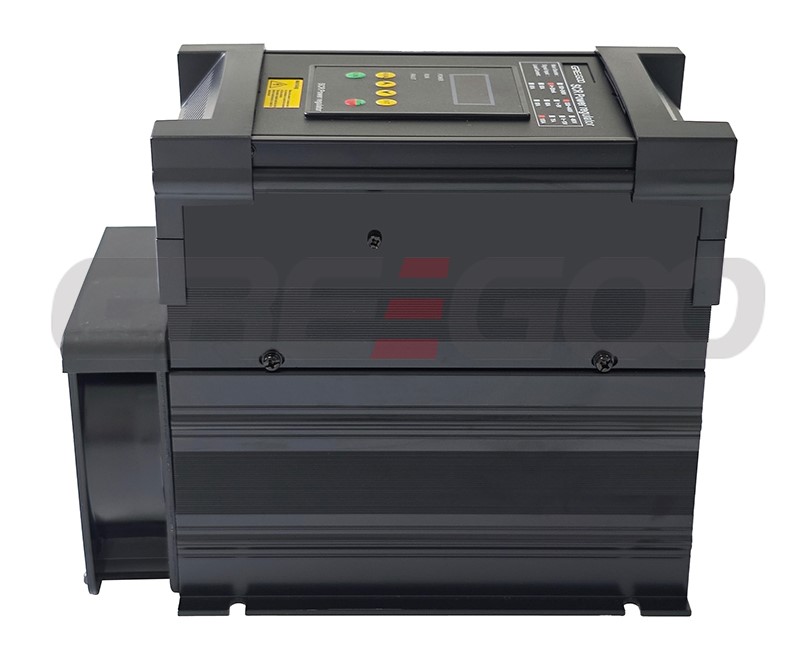

HGW5-4-4-090-P	3PH	380-440V	90A	28.5	49	3.5	Phase angle (constant voltage limiting current)

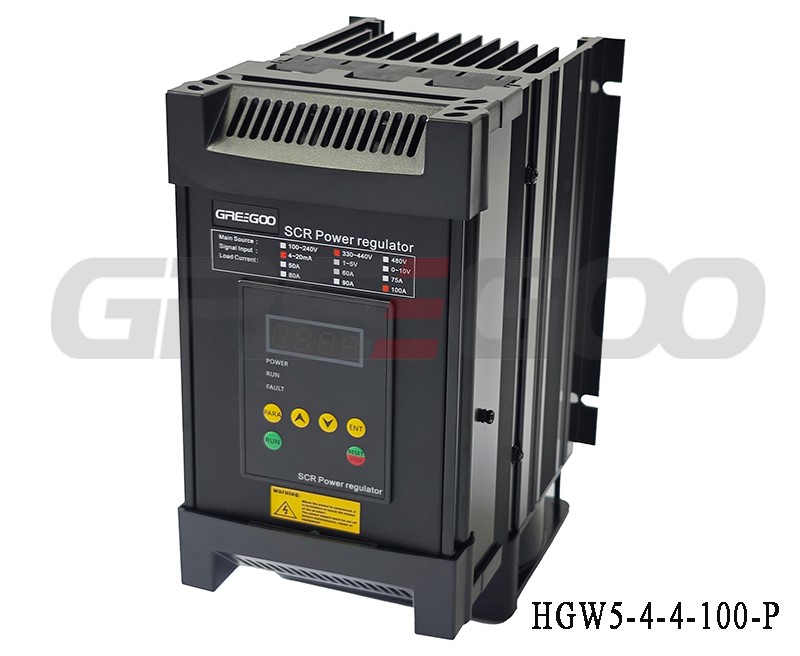

HGW5-4-4-100-P	3PH	380-440V	100A	32	55	3.5	Phase angle (constant voltage limiting current)
HGW5-4-4-090-Z	3PH	380-440V	90A	28.5	49	3.5	Zero crossing (Power regulating)
HGW5-4-4-100-Z	3PH	380-440V	100A	32	55	3.5	Zero crossing (Power regulating)
HGW5-4-2-090-P	3PH	110-220V	90A	28.5	49	3.5	Phase angle (constant voltage limiting current)
HGW5-4-2-100-P	3PH	110-220V	100A	32	55	3.5	Phase angle (constant voltage limiting current)
HGW5-4-2-090-Z	3PH	110-220V	90A	28.5	49	3.5	Zero crossing (Power regulating)
HGW5-4-2-100-Z	3PH	110-220V	100A	32	55	3.5	Zero crossing (Power regulating)
